| Specification | Details |
|---|---|
| Product | Ubiquiti UniFi Lite 16 PoE (USW-Lite-16-PoE) |
| Product Type | Layer 2 Managed PoE+ Switch |
| Ethernet Ports | 16 × 1GbE RJ45 |
| Port Speed | 10/100/1000 Mbps |
| PoE+ Ports | 8 |
| PoE Standard | IEEE 802.3af/at PoE+ |
| Total PoE Availability | 45W |
| Maximum PoE Output per Port | 32W PoE+ |
| Switching Capacity | 32 Gbps |
| Total Non-Blocking Throughput | 16 Gbps |
| Forwarding Rate | 24 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table | 8,000 |
| Packet Buffer | 0.5 MB |
| Access Lists | 128 IPv4 ACLs / 128 MAC ACLs |
| Layer 2 Features | LACP, STP, RSTP, IGMP Snooping, 802.1X, DHCP Snooping, Storm Control, Port Isolation, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN and Loop Protection |
| Power Supply | Internal 60W AC/DC |
| Power Input | 100–240V AC, 50/60 Hz |
| Maximum Power Consumption | 15W excluding PoE output / 60W including PoE output |
| Cooling | Fanless |
| Form Factor | Compact Desktop / Wall Mount |
| Management | UniFi Network via Ethernet |
| Dimensions | 192 × 185 × 44 mm |
| Weight | 1.2 kg |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Operating Temperature | -15 to 40°C |
| Operating Humidity | 10% to 90% Non-Condensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel |
| UniFi Network Requirement | Version 7.2.94 or later |
Sale!
Power Over Ethernet Switches
Ubiquiti USW-Lite-16-PoE
Original price was: 852.00.
798.00Current price is: 798.00.

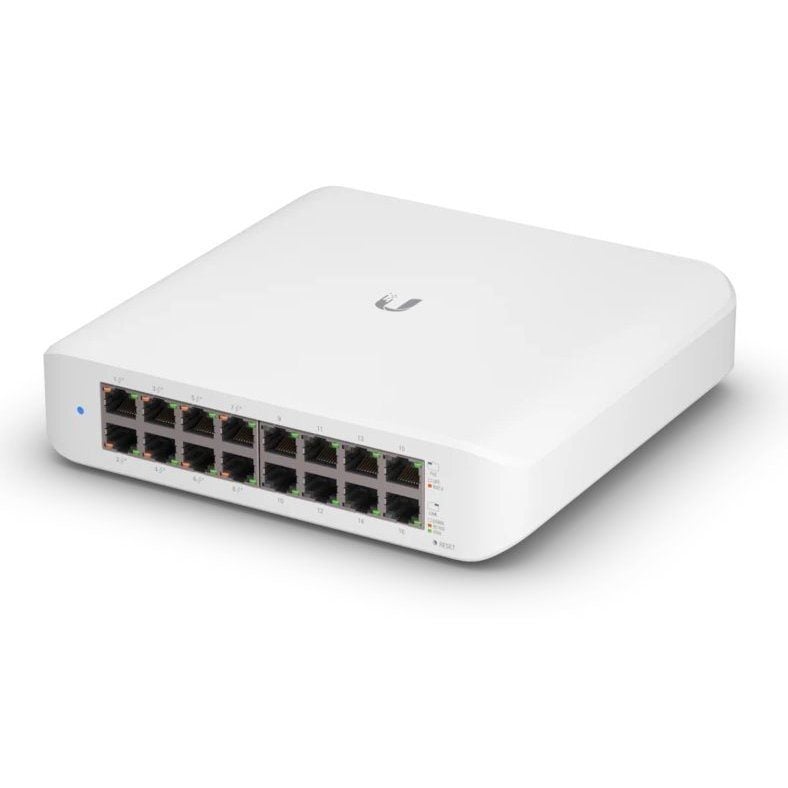

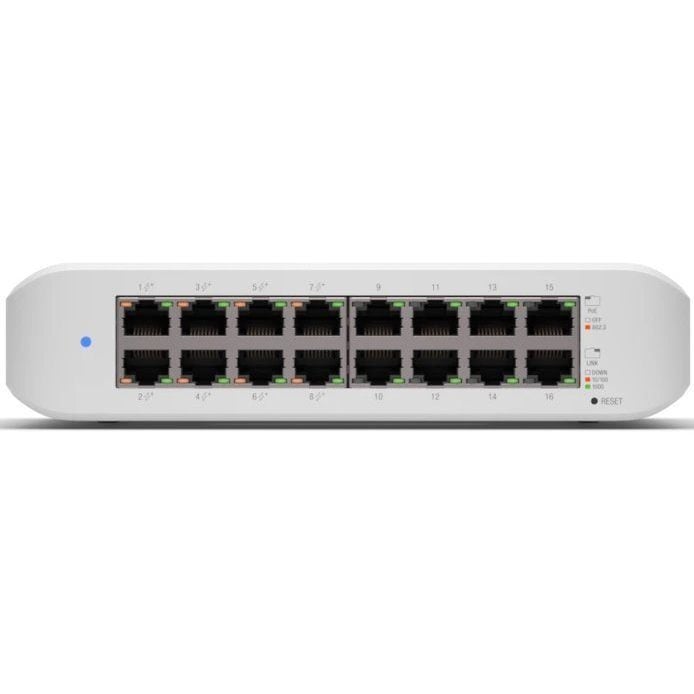

The Ubiquiti USW-Lite-16-PoE is a compact UniFi Layer 2 Gigabit PoE+ switch designed for homes, offices, CCTV installations and small business networks. It provides 16 × Gigabit RJ45 Ethernet ports, including 8 PoE+ ports, with a total 45W PoE budget. Its compact wall-mountable design and fanless cooling make it suitable for quiet network installations where reliable PoE connectivity and simple UniFi management are required.
Warranty: 1 Year
Out of stock
FAQ
How many ports does the Ubiquiti USW-Lite-16-PoE have?
The Ubiquiti USW-Lite-16-PoE has 16 Gigabit RJ45 Ethernet ports. Eight of these ports support PoE+ for compatible powered devices.
What is the PoE budget of the USW-Lite-16-PoE?
The USW-Lite-16-PoE provides a total PoE budget of 45W. Each PoE+ port can provide up to 32W from the switch, subject to the total available PoE budget.
Is the Ubiquiti USW-Lite-16-PoE fanless?
Yes. The USW-Lite-16-PoE uses fanless cooling, making it suitable for quiet home, office and commercial network installations.
Can the USW-Lite-16-PoE be managed with UniFi?
Yes. The switch is managed through UniFi Network, allowing administrators to configure and monitor supported networking features from the UniFi management platform.
