| Specification | Details |
|---|---|
| Product | Ubiquiti UniFi Switch Flex USW-Flex |
| Product Type | 5-Port Layer 2 Managed PoE Switch |
| Deployment | Indoor / Outdoor |
| Ethernet Ports | 5 × 1GbE RJ45 |
| Port Speed | 10/100/1000 Mbps |
| PoE Input Port | 1 × PoE++ |
| PoE Output Ports | 4 × PoE+ |
| PoE Standard | PoE / PoE+ / PoE++ |
| Maximum PoE Output per Port | Up to 25W PoE+ |
| Total PoE Availability | 46W with PoE++ or 60W PoE Adapter input; 20W with PoE+ input; 8W with PoE input |
| Switching Capacity | 10 Gbps |
| Total Non-Blocking Throughput | 5 Gbps |
| Forwarding Rate | 7 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table | 2,000 |
| Layer 2 Features | Egress Rate Limit, Flow Control, Port Isolation, Port Mirroring and Jumbo Frames |
| Power Method | PoE |
| Supported Voltage Range | 50–57V PoE |
| Maximum Power Consumption | 5W excluding PoE output / 51W including PoE output |
| Cooling | Fanless |
| Management | UniFi Network |
| Mounting | Desktop, Wall or Pole Mount |
| Outdoor Ready | Yes |
| Dimensions | 122.5 × 107.1 × 28 mm |
| Weight | 230 g |
| Operating Temperature | -40 to 55°C with 46W PoE output; -40 to 65°C with 25W PoE output |
| Operating Humidity | 5% to 95% Non-Condensing |
| ESD Protection | Air/Contact ±16kV |
| NDAA Compliant | Yes |
| Application Requirement | UniFi Network 5.10.3 or later |
Sale!
Power Over Ethernet Switches
Ubiquiti USW-FLEX – UniFi Switch Flex
Original price was: 482.00.
475.00Current price is: 475.00.

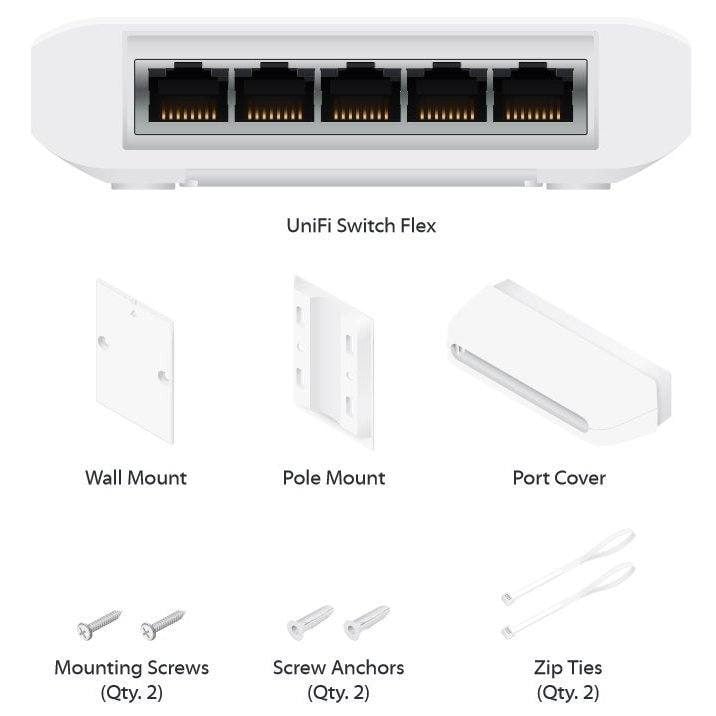

The Ubiquiti UniFi Switch Flex (USW-Flex) is a compact 5-port Layer 2 managed PoE switch designed for flexible indoor and outdoor network deployments. It provides one Gigabit PoE++ input port and four Gigabit PoE+ output ports, supporting up to 46W of total PoE availability when powered by a PoE++ source or 60W PoE adapter. With 10 Gbps switching capacity, 5 Gbps non-blocking throughput, fanless operation and versatile wall, pole or desktop mounting, it is ideal for powering UniFi access points, cameras and other PoE devices.
Warranty: 1 Year
FAQ
What is the Ubiquiti UniFi CloudKey+ SSD?
The Ubiquiti UniFi CloudKey+ SSD (UCK-G2-SSD) is a compact UniFi console designed to manage UniFi Network, Protect, Access, Talk and Connect applications from a single device.
How much storage does the UCK-G2-SSD provide?
The UCK-G2-SSD comes with a pre-installed 1TB 2.5-inch SATA SSD and supports user-upgradeable storage, making it suitable for UniFi application data and surveillance recordings.
How is the UniFi CloudKey+ SSD powered?
The UCK-G2-SSD supports 802.3af PoE for network connectivity and power. It can also be powered through USB-C using a compatible Quick Charge 2.0 or 3.0 power adapter.
How many cameras can the UCK-G2-SSD manage?
The UniFi CloudKey+ SSD supports up to 24 HD, 14 2K or 8 4K UniFi cameras, depending on the recording resolution and deployment configuration.
