| Specification | Details |
|---|---|
| Product | Ubiquiti UniFi Switch Flex Mini USW-Flex-Mini |
| Product Type | Compact Layer 2 Managed Gigabit Switch |

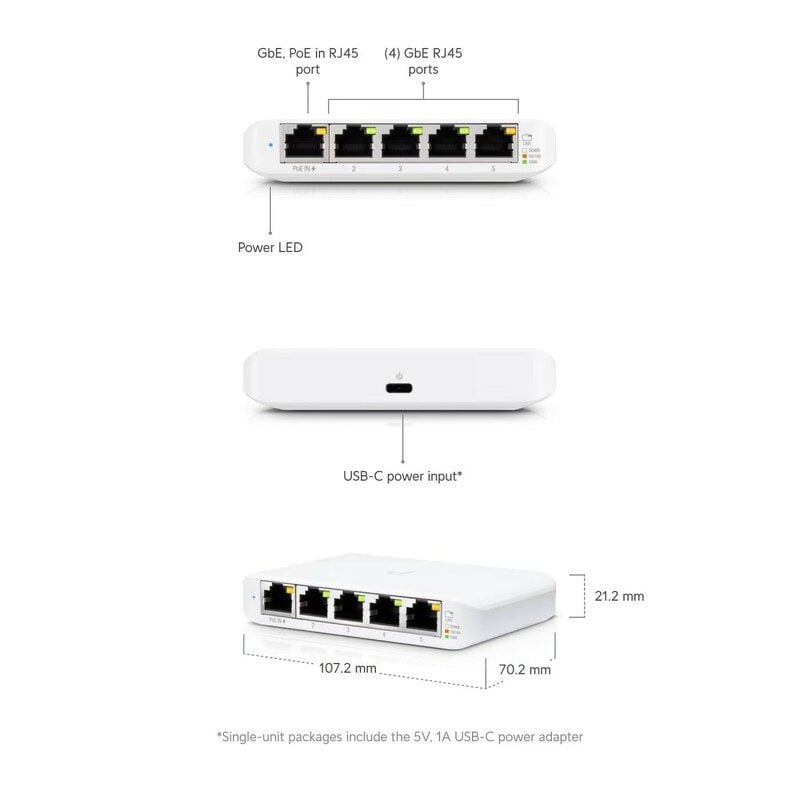

| Ethernet Ports | 5 × 1GbE RJ45 |
| Port Speed | 10/100/1000 Mbps |
| Switching Capacity | 10 Gbps |
| Total Non-Blocking Throughput | 5 Gbps |
| Forwarding Rate | 7 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table | 2,000 |
| Layer 2 Features | Egress Rate Limit, Flow Control, Storm Control, Multicast & Broadcast Rate Limiting, Port Isolation, Port Mirroring and Jumbo Frames |
| Power Method | USB Type-C or PoE |
| USB-C Power Input | 5V DC, 1A |
| PoE Input | PoE |
| PoE Voltage Range | 44–57V DC |
| Power Supply | External AC/DC, 5W |
| Maximum Power Consumption | 2.5W |
| Cooling | Fanless |
| Form Factor | Compact Desktop |
| Management | UniFi Network |
| Dimensions | 107 × 70 × 21 mm |
| Weight | 150 g |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Operating Temperature | -5 to 45°C |
| Operating Humidity | 10% to 90% Non-Condensing |
| ESD Protection | Air ±16kV / Contact ±12kV |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel |
| UniFi Network Requirement | Version 5.12.5 or later |
Sale!
Power Over Ethernet Switches
Ubiquiti USW-FLEX-MINI – UniFi Switch Flex Mini
Original price was: 165.00.
158.00Current price is: 158.00.
The Ubiquiti UniFi Flex Mini USW-Flex-Mini is a compact 5-port Gigabit Ethernet Layer 2 switch designed for expanding wired networks in homes, offices, workspaces, entertainment centers and small business environments. It provides five 1GbE RJ45 ports and delivers up to 10 Gbps switching capacity with 5 Gbps non-blocking throughput.

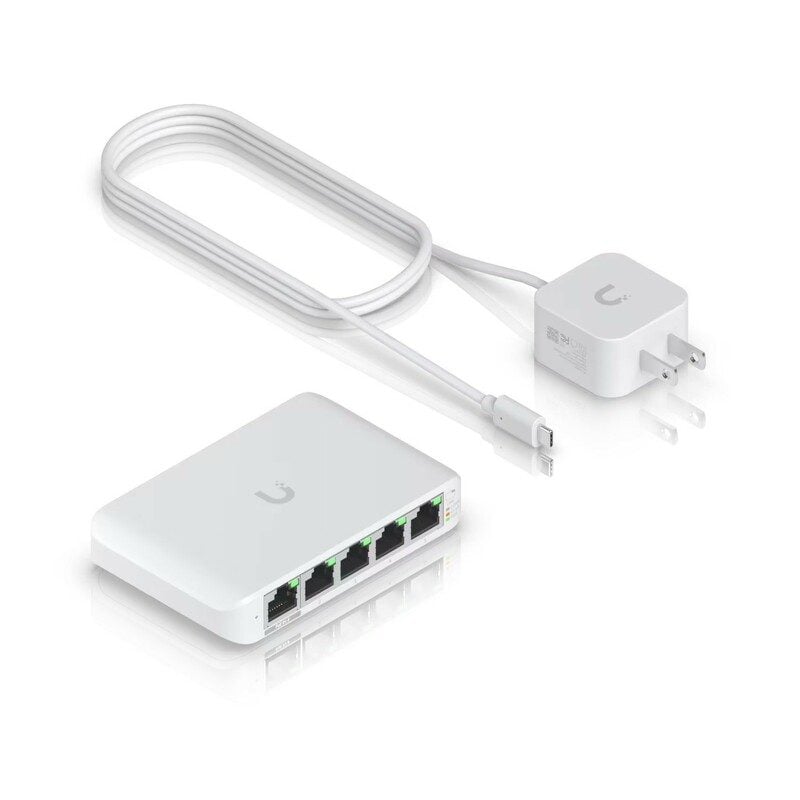

The Flex Mini can be powered through PoE or a 5V USB-C adapter, giving installers flexibility when deploying the switch in locations where a traditional AC power connection may not be convenient. A USB-C power adapter is included with single-unit purchases.
Warranty: 1 Year
Availability: 29 in stock
FAQ
What is the Ubiquiti UniFi Flex Mini?
The Ubiquiti UniFi Flex Mini USW-Flex-Mini is a compact 5-port Layer 2 Gigabit Ethernet switch designed for wired network expansion and UniFi Network management.
How many ports does the UniFi Flex Mini have?
The USW-Flex-Mini has five 1GbE RJ45 Ethernet ports, supporting 10/100/1000 Mbps connectivity.
Does the UniFi Flex Mini support PoE?
Yes. The Flex Mini can receive power through PoE. It can also be powered using a 5V USB-C connection.
Does the Flex Mini provide PoE output?
No. The USW-Flex-Mini is powered by PoE or USB-C but does not provide PoE output to connected devices. It should not be confused with the larger UniFi Flex USW-Flex, which has PoE output ports.
What is the switching capacity of the USW-Flex-Mini?
The USW-Flex-Mini provides 10 Gbps switching capacity, 5 Gbps total non-blocking throughput and 7 Mpps forwarding performance.
Can the Flex Mini be managed through UniFi?
Yes. The USW-Flex-Mini is designed to work with the UniFi Network application for centralized network management.
Does the Flex Mini support VLANs?
Yes. The official specifications list support for up to 1,000 VLANs.
What is the difference between Flex Mini and UniFi Flex?
The USW-Flex-Mini is a compact 5-port Layer 2 switch without PoE output. The USW-Flex is a different 5-port switch with four PoE+ output ports and one PoE++ input, designed for powering connected devices.
