| Specification | Details |
|---|---|
| Product | Ubiquiti UniFi nanoHD UAP-nanoHD |
| WiFi Standard | WiFi 5 (802.11ac Wave 2) |
| Spatial Streams | 6 |
| 5 GHz MIMO | 4 × 4 DL MU-MIMO |
| 2.4 GHz MIMO | 2 × 2 DL MU-MIMO |
| 5 GHz Maximum Data Rate | 1.7 Gbps (BW80) |
| 2.4 GHz Maximum Data Rate | 300 Mbps (BW40) |
| 5 GHz Antenna Gain | 3 dBi |
| 2.4 GHz Antenna Gain | 2.8 dBi |
| 5 GHz Maximum TX Power | 26 dBm |
| 2.4 GHz Maximum TX Power | 23 dBm |
| Coverage Area | 140 m² (1,500 ft²) |
| Maximum Client Count | 200+ |
| Uplink | 1 × Gigabit Ethernet RJ45 |
| Power Method | PoE |
| Maximum Power Consumption | 10.5W |
| Supported Voltage | 44–57V DC |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160 MHz |
| Wireless Features | Wireless Meshing, Band Steering, 802.11k/v/r, Advanced Radio Management, Passpoint, Captive Portal, Guest Isolation, PPSK, Client Isolation and WiFi Speed Limiting |
| Mounting | Ceiling or Wall |
| Mount Included | Lite Mount Included |
| Dimensions | Ø160 × 32.7 mm |
| Weight | 300 g (315 g with mount) |
| Operating Temperature | -10 to 70°C |
| Operating Humidity | 5% to 95% non-condensing |
| Management | UniFi Network |
| PoE Adapter | Included |
| Certifications | CE, FCC, IC, cULus, Anatel |
Sale!
Wireless Access Points
Ubiquiti Unifi UAP-nanoHD
Original price was: 600.00.
595.00Current price is: 595.00.

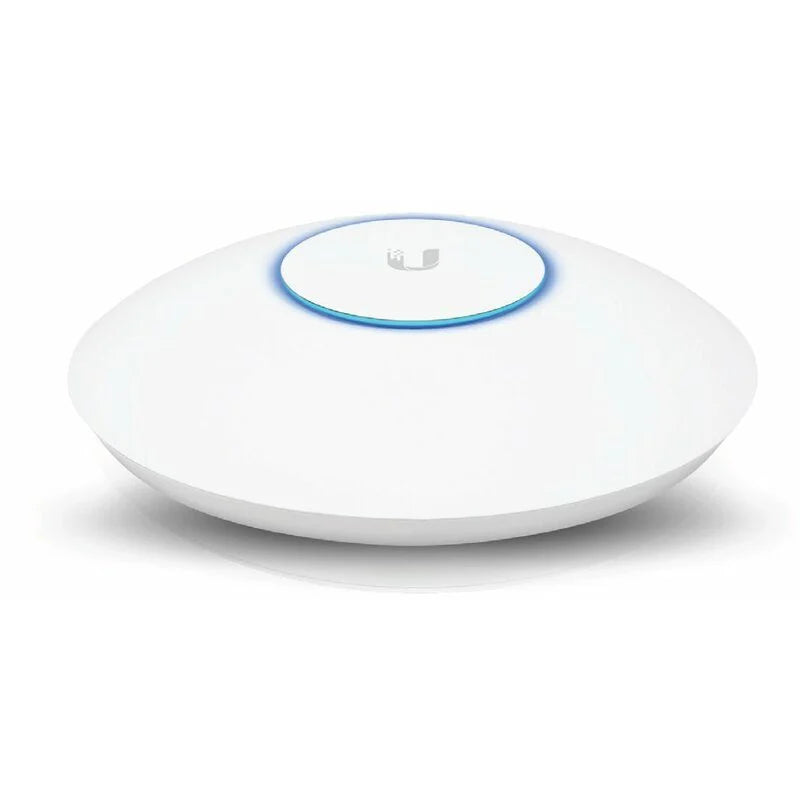

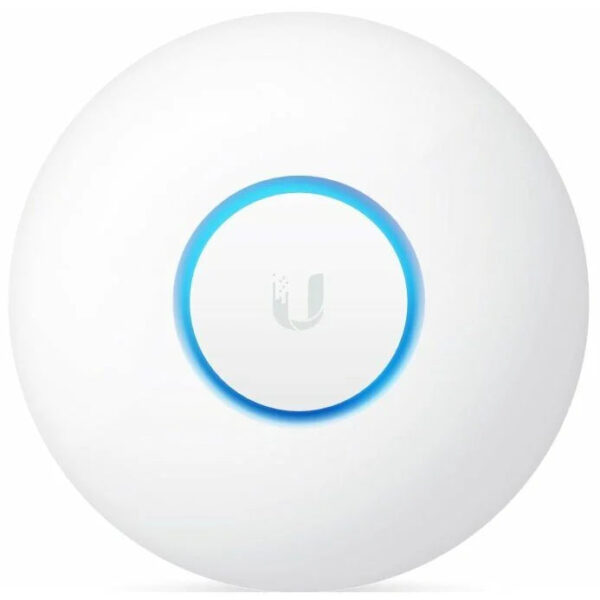

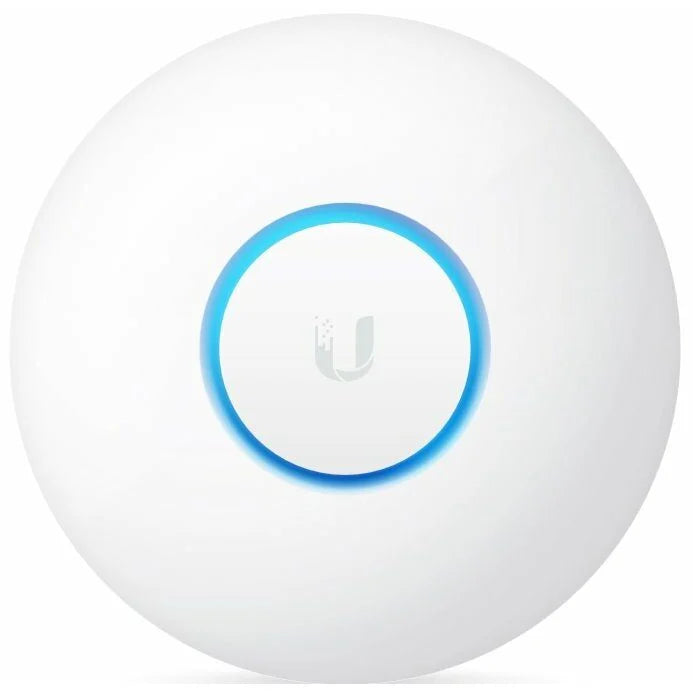

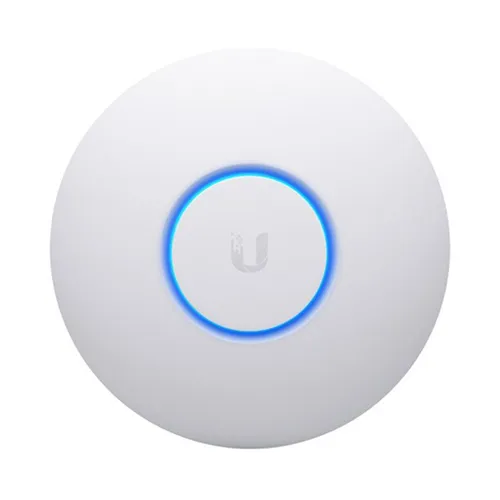

The Ubiquiti UniFi nanoHD UAP-nanoHD is a compact WiFi 5 802.11ac Wave 2 access point designed for high-density wireless networks. It features 4×4 MU-MIMO on 5 GHz, 2×2 MU-MIMO on 2.4 GHz, speeds up to 1.7 Gbps on 5 GHz and 300 Mbps on 2.4 GHz, 140 m² coverage, 200+ client capacity, Gigabit Ethernet and PoE support. It is suitable for homes, offices, hotels and professional UniFi network deployments.
Warranty: 1 Year
FAQ
What is the Ubiquiti UniFi nanoHD?
The Ubiquiti UniFi nanoHD is a compact Wi-Fi 5 802.11ac Wave 2 access point designed for high-density wireless networks in homes, offices and business environments.
What wireless speeds does the UniFi nanoHD support?
The UniFi nanoHD supports up to 1.7 Gbps on 5 GHz and 300 Mbps on 2.4 GHz, with 4×4 MIMO on 5 GHz and 2×2 MIMO on 2.4 GHz.
How many clients can the UniFi nanoHD support?
The UniFi nanoHD supports more than 200 concurrent clients and provides coverage of up to 140 m² (1,500 ft²), depending on the environment and deployment conditions.

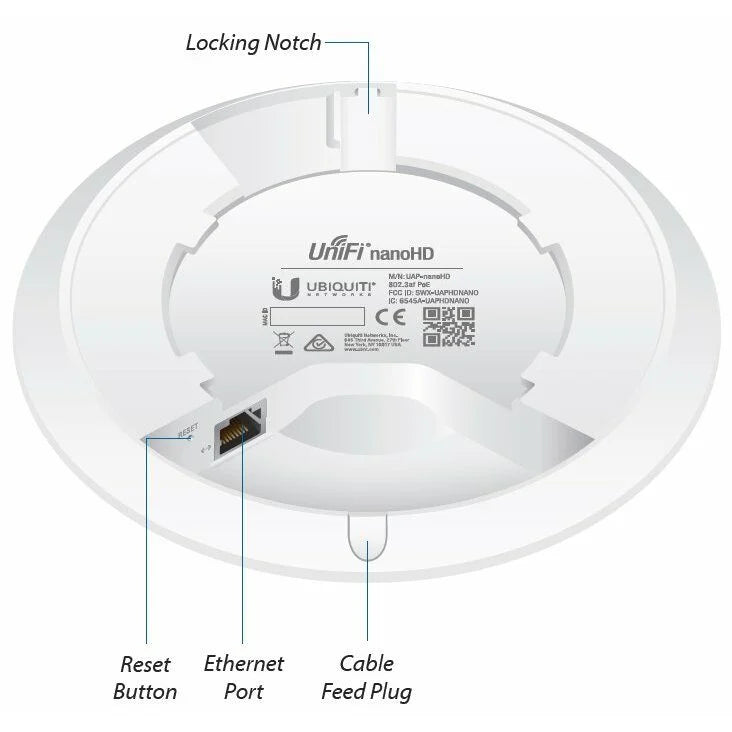

Does the UniFi nanoHD support PoE and wall mounting?
Yes. The UniFi nanoHD supports 802.3af PoE and has one Gigabit Ethernet port. It can be installed on a wall or ceiling using the included mounting kit.
