| Specification | Details |
|---|---|
| Product | Ubiquiti NanoStation Loco M2 (LocoM2) |
| Product Type | Compact Outdoor 2.4 GHz airMAX CPE |
| Wireless Standard | 802.11b/g/n (Wi-Fi 4) |
| Frequency | 2.4 GHz |
| Operating Frequency | 2412–2462 MHz |
| MIMO | 2 × 2 MIMO |
| Maximum Wireless Data Rate | 300 Mbps |
| Real-World Throughput | Up to 150 Mbps |
| Antenna | Integrated Dual-Linear MIMO Antenna |
| Antenna Gain | 8.5 dBi |
| Beamwidth | 60° H / 60° V / 60° Elevation |
| Polarization | Dual Linear |
| Cross-Polarization Isolation | 20 dB Minimum |
| Maximum VSWR | 1.4:1 |
| Maximum Output Power | 23 dBm |
| AirMAX | Yes |
| TDMA Technology | AirMAX TDMA |
| Wireless Modes | Access Point, Client, WDS |
| Operating Modes | Bridge, Router/NAT |
| Security | WPA, WPA2 |
| Ethernet Port | 1 × 10/100 MbE RJ45 |
| Ethernet Speed | 10/100 Mbps |
| Power Method | Passive PoE, 2-Pair |

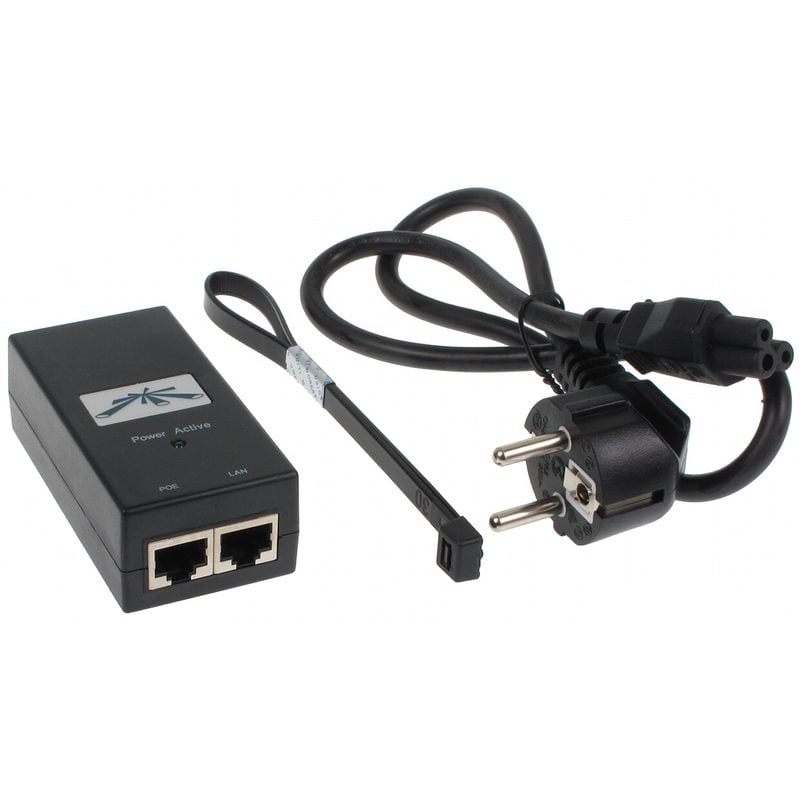

| Power Supply | 24V DC, 0.5A PoE Adapter Included |
| Supported Voltage | 22–27V DC |
| Maximum Power Consumption | 5.5W |
| Processor | Atheros MIPS 24Kc, 400 MHz |
| Memory | 32 MB SDRAM |
| Flash Storage | 8 MB |
| Operating System | airOS |
| Enclosure | Outdoor UV-Stabilized Plastic |
| Mounting | Pole Mount, Mounting Kit Included |
| Operating Temperature | -30 to 75°C |
| Operating Humidity | 5% to 95% Non-Condensing |
| Dimensions | 161 × 31 × 80 mm |
| Weight | 180 g |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE, RoHS |
Sale!
Wireless Access Points
Ubiquiti NanoStation Loco M2 2x8dBi outdoor 2.4GHz
Original price was: 199.00.
190.00Current price is: 190.00.

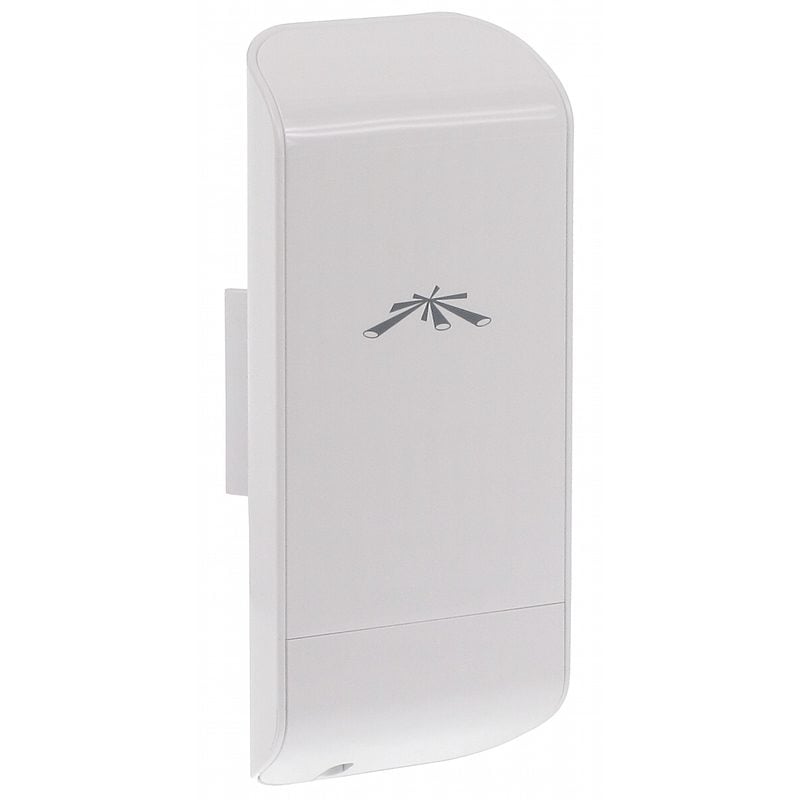

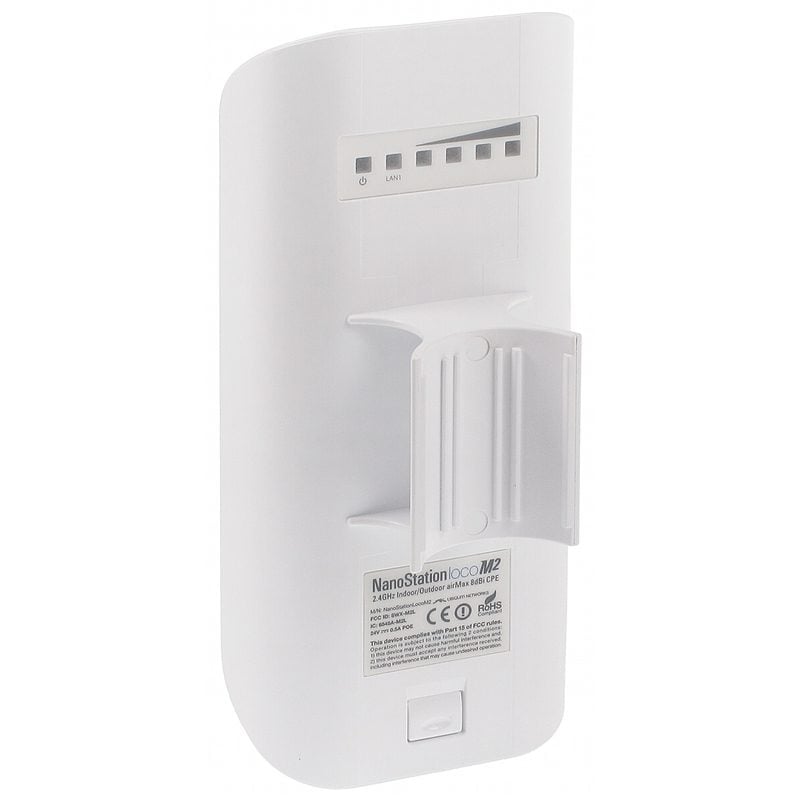

The Ubiquiti NanoStation Loco M2 (LocoM2) is a compact outdoor 2.4 GHz airMAX CPE featuring an integrated 2×2 MIMO antenna with 8.5 dBi gain. It supports 802.11b/g/n wireless connectivity, up to 300 Mbps link rate and real-world throughput of up to 150 Mbps, with AirMAX TDMA technology for low-latency outdoor wireless links. The unit provides one 10/100 Mbps Ethernet port, passive PoE power, pole mounting and a UV-stabilized outdoor enclosure, making it suitable for point-to-point, point-to-multipoint and remote network connectivity.
Warranty: 1 Year
Availability: 18 in stock
FAQ
What is the Ubiquiti NanoStation Loco M2?
The Ubiquiti NanoStation Loco M2 is a compact 2.4 GHz outdoor airMAX CPE designed for wireless networking, point-to-point links and point-to-multipoint deployments.
What antenna gain does the NanoStation Loco M2 have?
The NanoStation Loco M2 features an integrated 2×2 MIMO antenna with 8.5 dBi gain, dual linear polarization and a 60° beamwidth.
What Ethernet port does the Loco M2 provide?

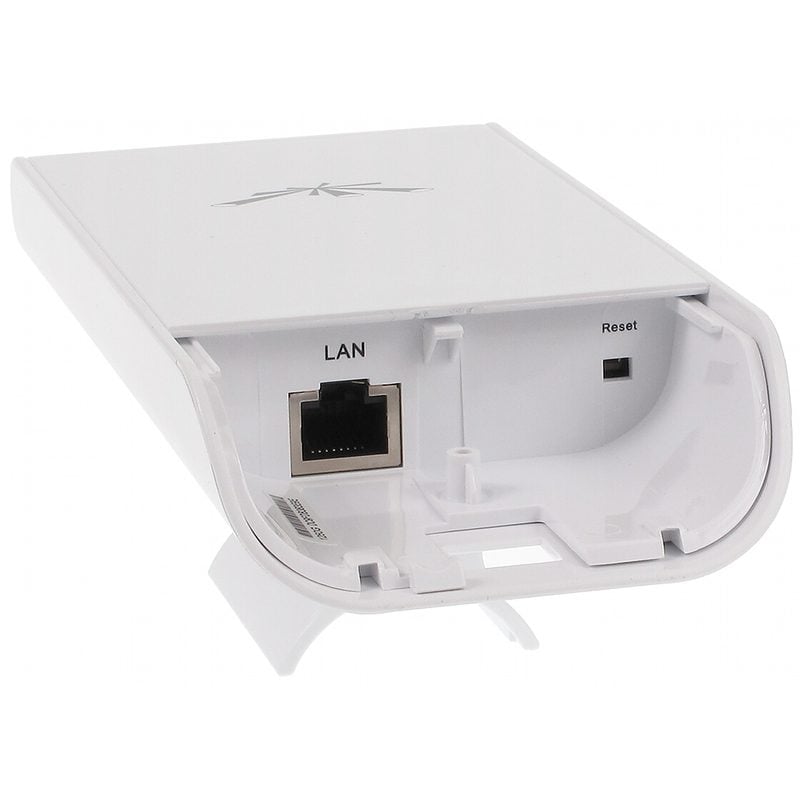

The NanoStation Loco M2 has one 10/100 Mbps RJ45 Ethernet port and uses passive PoE for both network connectivity and power.
Is the NanoStation Loco M2 suitable for outdoor use?
Yes. The Loco M2 has an outdoor UV-stabilized enclosure, supports pole mounting and operates in the 2.4 GHz band from 2412 to 2462 MHz.
