| Specification | Details |
|---|---|
| Product | Ubiquiti UniFi U6 Mesh |
| Model | U6-Mesh |
| Product Type | Indoor/Outdoor Dual-Band WiFi 6 Access Point |
| WiFi Standard | WiFi 6 (802.11ax) |
| Spatial Streams | 6 |
| Frequency Bands | 2.4 GHz + 5 GHz |
| 6 GHz Support | No |
| 2.4 GHz MIMO | 2 × 2 DL/UL MU-MIMO |
| 5 GHz MIMO | 4 × 4 DL/UL MU-MIMO |
| 2.4 GHz Maximum Data Rate | 573.5 Mbps (40 MHz) |
| 5 GHz Maximum Data Rate | 4.8 Gbps (160 MHz) |
| Maximum Aggregate Wireless Rate | Approximately 5.37 Gbps |
| Coverage Area | 140 m² (1,500 ft²) |
| Maximum Client Count | 250+ |
| Uplink | 1 × Gigabit Ethernet RJ45 |
| Ethernet Speed | 10/100/1000 Mbps |
| Power Method | PoE |
| Supported Voltage Range | 44–57V DC |
| Maximum Power Consumption | 13W |
| 2.4 GHz Antenna Gain | 3 dBi |
| 5 GHz Antenna Gain | 5 dBi |
| 2.4 GHz Maximum TX Power | 22 dBm |
| 5 GHz Maximum TX Power | 26 dBm |
| Maximum BSSIDs | 8 per radio |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11k Radio Resource Management | Yes |
| 802.11r Fast Roaming | Yes |
| 802.11v BSS Transition Management | Yes |
| Advanced Radio Management | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Captive Hotspot Portal | Yes |
| Voucher Authentication | Yes |
| Payment-Based Authentication | Yes |
| External Portal Server Support | Yes |
| Password Authentication | Yes |
| Guest Network Isolation | Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| WiFi Speed Limiting | Yes |
| Client Device Isolation | Yes |
| WiFi Schedules | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Dynamic RADIUS VLAN | Yes |
| Management | UniFi Network |
| Management Interface | Ethernet |
| Mounting | Wall / Pole |
| Mounts Included | Yes |
| Weatherproofing | IPX5 |
| Enclosure Material | Polycarbonate, Aluminum |
| Mount Material | Polycarbonate |

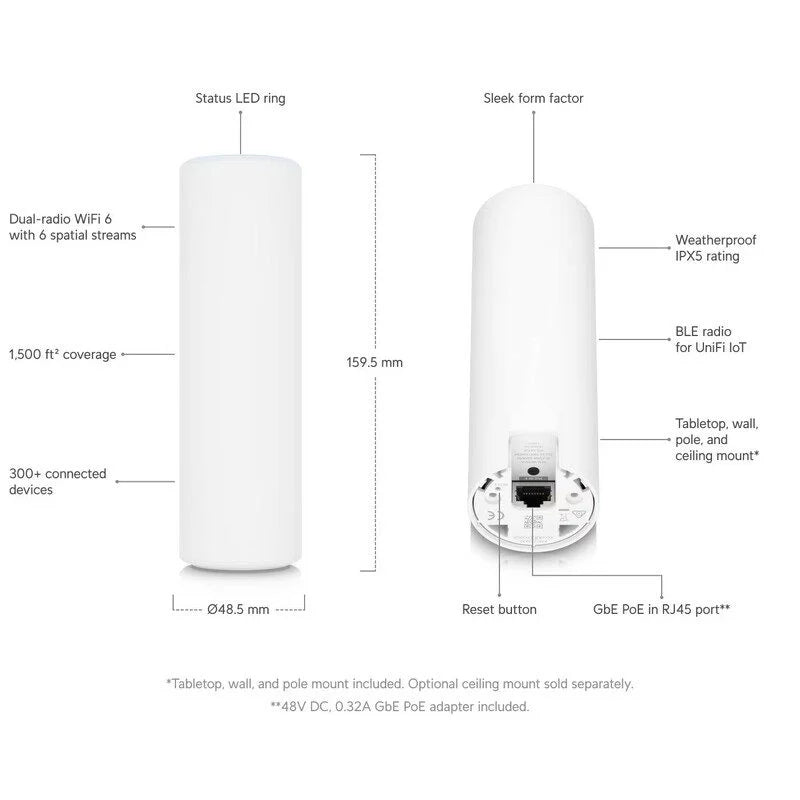

| Dimensions | Ø48.5 × 159.5 mm |
| Weight | 400 g |
| System LED | White / Blue |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | 5%–95% non-condensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, SRRC, Anatel |
| UniFi Network Requirement | Version 6.0.45 or later |
| PoE Adapter Included | Yes |
Sale!
Wireless Access Points

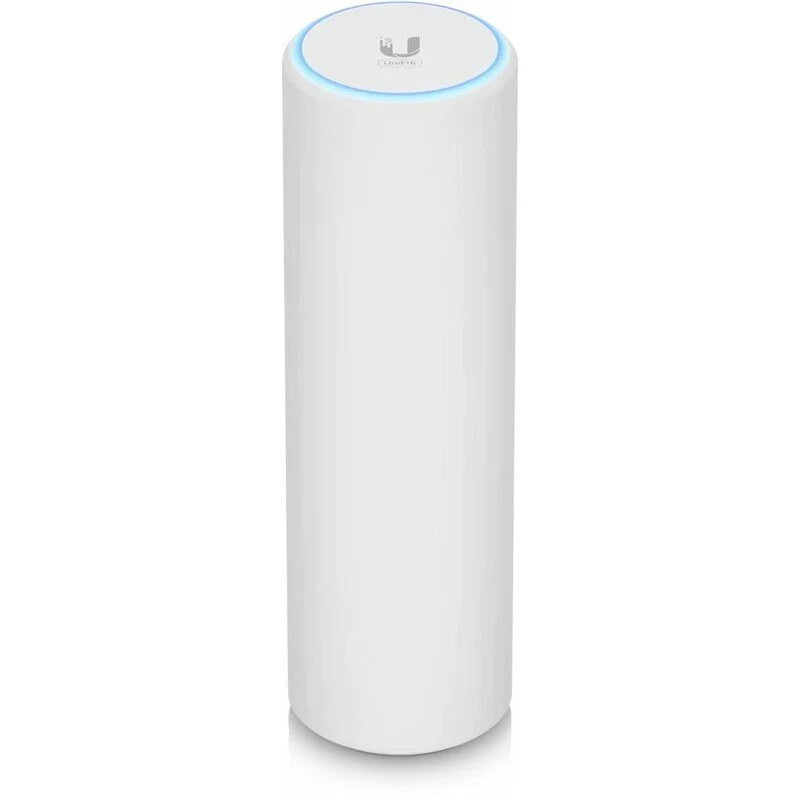

Ubiquiti Unifi U6 Mesh
Original price was: 740.00.
730.00Current price is: 730.00.
The Ubiquiti UniFi U6 Mesh (U6-Mesh) is a 6-stream dual-band WiFi 6 access point designed for flexible indoor and outdoor wireless deployments and mesh networks. It delivers up to 4.8 Gbps on 5 GHz and 573.5 Mbps on 2.4 GHz, with 4×4 MU-MIMO on 5 GHz and 2×2 MU-MIMO on 2.4 GHz. It features a Gigabit Ethernet uplink, PoE power, 140 m² coverage, support for 250+ clients, wireless meshing, fast roaming, captive portal, PPSK, RADIUS, dynamic VLAN assignment, and IPX5 weather protection when installed correctly with the included mounting accessory.
Warranty: 1 Year
Out of stock
FAQ
What is the Ubiquiti UniFi U6 Mesh?
The Ubiquiti UniFi U6 Mesh is a Wi-Fi 6 indoor/outdoor access point designed for high-performance wireless coverage and mesh networking in homes, offices, campuses and outdoor areas.
What wireless speeds does the U6 Mesh support?
The U6 Mesh supports up to 4.8 Gbps on 5 GHz and 573.5 Mbps on 2.4 GHz, using 4×4 MIMO on 5 GHz and 2×2 MIMO on 2.4 GHz.
Does the U6 Mesh support wireless meshing?
Yes. The U6 Mesh supports UniFi wireless meshing, allowing compatible UniFi access points to work together to extend wireless coverage without requiring a wired connection to every access point.
Is the Ubiquiti U6 Mesh suitable for outdoor use?
Yes. The U6 Mesh has an IPX5 weather-resistant design and supports wall or pole mounting, making it suitable for both indoor and outdoor wireless deployments.
