| Specification | Details |
|---|---|
| Brand | Ubiquiti |
| Product Series | UniFi |
| Model | USW-Ultra |
| Product Type | Managed Layer 2 Gigabit Ethernet PoE Switch |
| Ethernet Interfaces | 8 × Gigabit Ethernet RJ45 |
| PoE Output Ports | 7 × PoE/PoE+ |
| PoE Input | 1 designated port supports PoE++ input |
| Maximum PoE+ Output per Port | 30W |
| Total Available PoE Power | 42W with PoE++ input; 16W with PoE+ input; 52W with a compatible 60W AC adapter; up to 202W with a compatible 210W AC adapter under specified conditions |
| Non-Blocking Throughput | 8 Gbps |
| Switching Capacity | 16 Gbps |
| Management Interface | Ethernet in-band |
| Power Methods | Compatible 54V AC adapters or PoE++ input |
| Supported Input Voltage | 44–57V DC |
| Maximum Power Consumption | 8W with AC adapter input or 9W with PoE input, excluding PoE output |
| Layer 2 Features | Port isolation, storm control, port mirroring, multicast/broadcast rate limiting, flow control, jumbo frames and egress rate limiting |
| Reset | Factory reset button |
| Enclosure Material | Polycarbonate |
| Dimensions | 203 × 76 × 33 mm |
| Device Weight | 320 g |
| Operating Temperature | Varies by power source: -30°C to 60°C with PoE++ input; -20°C to 45°C with a 60W AC adapter; -20°C to 60°C with a 210W AC adapter |
| Operating Humidity | 10–90% non-condensing |
| Certifications | CE, FCC and IC |
| Management Software | UniFi Network application |
| Suitable For | Business networks, IP surveillance, wireless access points and compact network installations |
Sale!
Networking

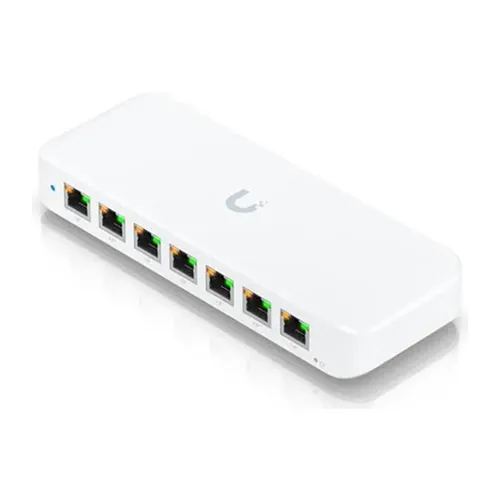

Ubiquiti UniFi Switch Ultra (USW-Ultra)
Original price was: 444.00.
438.00Current price is: 438.00.
The Ubiquiti UniFi Switch Ultra (USW-Ultra) is a compact, managed Layer 2 Gigabit Ethernet switch designed for business networks, IP cameras and wireless access points. It features eight Gigabit Ethernet ports, including seven PoE/PoE+ output ports and one PoE++ input port. Depending on the power source, it supports up to 52W of total PoE output with a compatible 60W AC adapter, or up to 202W with a compatible 210W AC adapter under specified conditions. Its compact design, flexible power options and UniFi Network management make it suitable for expanding wired networks.
Warranty: 1 Year
FAQ
What is the Ubiquiti UniFi Switch Ultra?
The USW-Ultra is a compact, managed Layer 2 Gigabit Ethernet switch with eight Ethernet ports, seven PoE/PoE+ output ports and flexible power input options.
How many PoE ports does the USW-Ultra have?
The USW-Ultra has seven PoE/PoE+ output ports and one port that supports PoE++ input.
What is the PoE budget of the standard USW-Ultra?
The PoE budget depends on the power source. It supports up to 52W with a compatible 60W AC adapter and up to 202W with a compatible 210W AC adapter under specified conditions. The standard switch configuration does not necessarily include an AC adapter.
Can the USW-Ultra power IP cameras and access points?
Yes. Its PoE/PoE+ output ports can power compatible IP cameras, wireless access points and other supported PoE devices, provided the total power budget and device requirements are met.
Can I manage the UniFi Switch Ultra through UniFi Network?
Yes. The switch supports management through the UniFi Network application for configuration and monitoring of supported features.
Where can I buy the Ubiquiti UniFi Switch Ultra in Dubai, UAE?
Visit the USW-Ultra product page on Hiba Computers to check current pricing and availability. Confirm the included power accessories, stock and warranty terms with the store before purchasing.
