| Specification | Details |
|---|---|

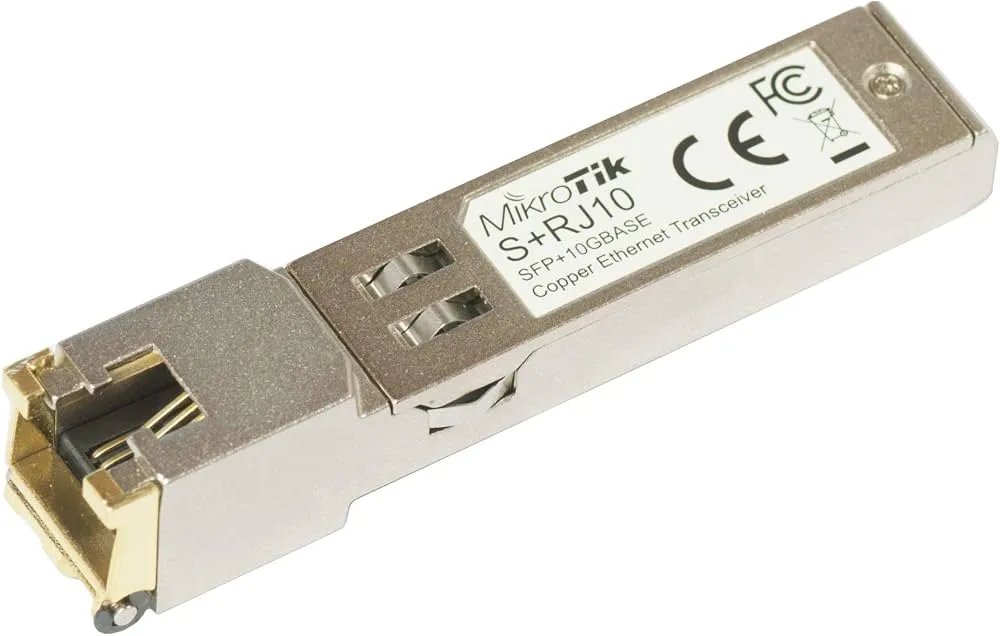

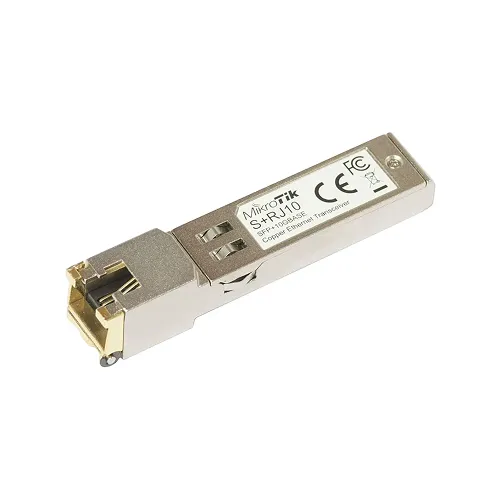

| Product | MikroTik S+RJ10 |
| Product Type | 6-Speed RJ-45 SFP+ Copper Module |
| Model | S+RJ10 |
| Connector | RJ45 |
| Interface Type | SFP+ |
| Supported Data Rates | 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps |
| Maximum Data Rate | 10 Gbps |
| Transceiver | Marvell 88X3310P |
| Media | Twisted-Pair Copper |
| 10BASE-T Distance | Up to 100 m |
| 100BASE-T Distance | Up to 100 m |
| 1000BASE-T Distance | Up to 100 m to other brands; up to 200 m S+RJ10 to S+RJ10 |
| 2.5GBASE-T Distance | Up to 100 m to other brands; up to 170 m with Cat5e/6 UTP or 200 m with Cat5e/6 STP between S+RJ10 modules |
| 5GBASE-T Distance | Up to 100 m |
| 10GBASE-T Distance | Up to 30 m |
| Recommended Cable for 10Gbps | Cat6 / Cat7 |
| Storage | 256 KB |
| Storage Type | FLASH |
| Average Power Consumption | 2.7W at 10GBASE-T over 30 m |
| Operating Temperature | 0°C to 70°C |
| Tested Ambient Temperature | -20°C to 60°C |
| MTBF | Approximately 100,000 hours at 25°C |
| Compatible Interface | MikroTik SFP+ ports |
| Cooling | Supported in active and passive-cooled MikroTik devices; additional cooling may be required in some passive-cooled devices |
| Jumbo Frames | Up to 10,218 bytes on the latest /r2 revision at 2.5G, 5G and 10G |
Sale!
Networking
MIKROTIK RJ 10+S
Original price was: 249.00.
240.00Current price is: 240.00.
The MikroTik S+RJ10 is a high-speed 6-speed RJ45 SFP+ module designed to add copper Ethernet connectivity to compatible SFP+ devices. It supports 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps Ethernet speeds, allowing compatible MikroTik hardware to connect to standard twisted-pair copper networks without requiring optical fiber. The module supports up to 100m at 10/100/1000/2.5G/5G speeds and up to 30m at 10GBASE-T using suitable Cat6 or Cat7 cabling.
Warranty: 1 Year
Out of stock
FAQ
What is the MikroTik S+RJ10?
The MikroTik S+RJ10 is a 6-speed RJ45 SFP+ module that provides copper Ethernet connectivity through a compatible SFP+ port.
What speeds does the S+RJ10 support?
The S+RJ10 supports 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps Ethernet speeds.
Can the MikroTik S+RJ10 provide 10Gbps?
Yes. The S+RJ10 supports 10GBASE-T up to 10Gbps when used with suitable equipment and cabling.
What cable is required for 10Gbps?
For 10GBASE-T operation, MikroTik specifies Cat6 or Cat7 cabling with a maximum recommended distance of 30 metres.
Can the S+RJ10 work at 1Gbps?
Yes. The S+RJ10 supports 1000BASE-T and can operate at up to 1Gbps over suitable Cat5e or Cat6 copper cabling.
Does S+RJ10 require fiber?
No. The S+RJ10 provides an RJ45 copper interface, allowing compatible SFP+ equipment to connect to twisted-pair Ethernet cabling.
Can S+RJ10 be used in an SFP port?
The S+RJ10 is designed for SFP+ ports. It should not be treated as a standard 1G SFP module.
How much power does the S+RJ10 consume?
MikroTik specifies average power consumption of approximately 2.7W when operating at 10GBASE-T over a 30-metre link.
