Sale!

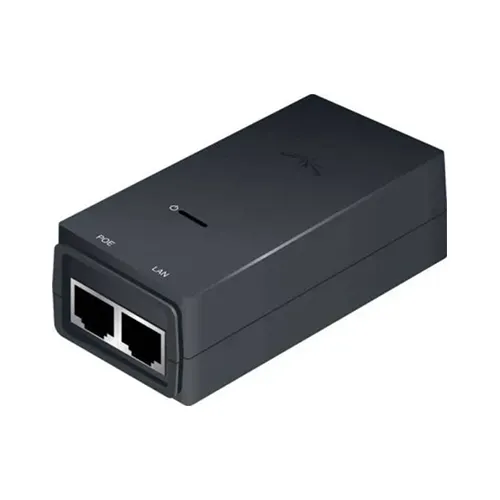

Ubiquiti black PoE adapter with two ports on white background.

Ubiquiti POE-48-24W-G

Original price was:  80.00.Current price is:  72.00.

The Ubiquiti POE-48-24W-G is a 48V DC Gigabit PoE adapter designed to provide power and network connectivity to compatible PoE devices. It delivers 48V DC at 0.5A, includes a Gigabit LAN port, and supports 100–240V AC input. Built-in surge and clamping protection helps protect connected equipment, while the grounded AC cable provides additional protection for professional network installations.

Warranty: 1 Year
Category: Brand:
Enquire Now
Specification Details
Product Ubiquiti 48V PoE Adapter
Model POE-48-24W-G
Product Type 48V Gigabit PoE Adapter
Output Voltage 48V DC
Output Current 0.5A
Output Power 24W
Gigabit LAN Port Yes
LAN Activity Indicator No
Remote Reset Capability No
Reset Button No
Rated Input Voltage 100–240V AC, 50/60Hz
Input Current 0.6A @ 120V AC; 0.4A @ 240V AC
Efficiency 80+%
Output Ripple 1% maximum
Switching Frequency 65 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering Not supported
Power Cable Included
AC Connector IEC-320 C6
Data IN / PoE Output Shielded RJ45 socket
Surge Protection Differential and common mode
Clamping Protection 11V data, 60V power
Maximum Surge Discharge 1500A (8/20 μs) power
Peak Pulse Current 36A (10/1000 μs) data
Shunt Capacitance <5 pF data
Response Time <1 ns
Storage Temperature -30°C to 70°C
Operating Temperature 0°C to 40°C
Operating Humidity 35%–95% non-condensing
Dimensions 92 × 60 × 33 mm
Weight 159 g
Certifications CE, FCC, IC, UL
NDAA Compliant Yes

FAQ

What is the Ubiquiti POE-48-24W-G?

The Ubiquiti POE-48-24W-G is a 48V DC 24W Gigabit PoE adapter designed to provide power and Ethernet connectivity to compatible PoE devices.

What voltage does the POE-48-24W-G provide?

The POE-48-24W-G provides 48V DC at 0.5A, equivalent to a maximum rated output of 24W.

Does Ubiquiti POE-48-24W-G have a Gigabit port?

Yes. The POE-48-24W-G has a Gigabit LAN port and a shielded RJ45 Data IN / PoE connection.

What is the input voltage of the POE-48-24W-G?

The adapter accepts 100–240V AC at 50/60Hz, making it suitable for a wide range of electrical installations.

Does the POE-48-24W-G provide surge protection?

Yes. It provides differential and common-mode surge protection, along with 11V data and 60V power clamping protection.

Is the Ubiquiti POE-48-24W-G a 24W PoE adapter?

Yes. Its rated output is 48V DC at 0.5A, providing up to 24W of rated power.

Is the power cable included?

Yes. Ubiquiti lists the AC power cable as included with the POE-48-24W-G.
