| Specification | Details |
|---|---|
| Product | Ubiquiti UniFi U7 Outdoor |
| Model | U7-Outdoor |
| Product Type | Outdoor Dual-Band WiFi 7 Access Point |
| WiFi Standard | WiFi 7 (802.11be) |
| Spatial Streams | 4 |
| Frequency Bands | 2.4 GHz + 5 GHz |
| 6 GHz Support | No |
| 2.4 GHz MIMO | 2 × 2 DL/UL MU-MIMO |
| 5 GHz MIMO | 2 × 2 DL/UL MU-MIMO |
| 2.4 GHz Maximum Data Rate | 688 Mbps |
| 5 GHz Maximum Data Rate | 4.3 Gbps |
| Maximum Aggregate Wireless Rate | Approximately 5.0 Gbps |
| Coverage Area | Up to 465 m² (5,000 ft²) directional outdoor coverage |
| Maximum Client Count | 250+ |
| Uplink | 1 × 2.5 GbE RJ45 |
| Supported Ethernet Speeds | 2.5G / 1G / 100M / 10M |
| Power Method | PoE+ |
| Supported Voltage Range | 42.5–57V DC |
| Maximum Power Consumption | 19W |
| 2.4 GHz Antenna Gain | Directional internal: 8 dBi; External omni: 3 dBi |
| 5 GHz Antenna Gain | Directional internal: 12.5 dBi; External omni: 4 dBi |
| 2.4 GHz Maximum TX Power | 23 dBm |
| 5 GHz Maximum TX Power | 26 dBm |
| 2.4 GHz Antenna Beamwidth | 90° |
| 5 GHz Antenna Beamwidth | 45° |
| Internal Antenna | 1 × Directional internal antenna |
| External Antennas | 2 × External omnidirectional antennas included |
| External Antenna Connectors | 2 × RP-SMA |
| Wireless Mesh | Yes |
| Band Steering | Yes |
| 802.11k | Yes |
| 802.11r | Yes |
| 802.11v | Yes |
| Advanced Radio Management | Yes |
| Passpoint | Yes |
| Captive Portal | Yes |
| Voucher Authentication | Yes |
| Payment-Based Authentication | Yes |
| External Portal Server | Yes |
| Guest Network Isolation | Yes |
| PPSK | Yes |
| WiFi Speed Limiting | Yes |
| Client Device Isolation | Yes |
| WiFi Schedules | Yes |
| RADIUS over TLS | Yes |
| Dynamic RADIUS VLAN | Yes |
| Management | UniFi Network |
| Management Interface | Ethernet |
| Weatherproofing | IPX6 |
| Wind Loading | 74.6 N at 200 km/h |
| Pole Mount Diameter | 25–60 mm |
| Mounting | Wall / Pole |
| Mounts Included | Yes |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, SGCC steel |
| Dimensions | 170 × 208 × 54.5 mm |
| Weight | 1.2 kg |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | 5%–95% non-condensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel |
| UniFi Network Requirement | Version 8.2.93 or later |
Sale!
Networking
U7 OUTDOOR
Original price was: 905.00.
896.00Current price is: 896.00.

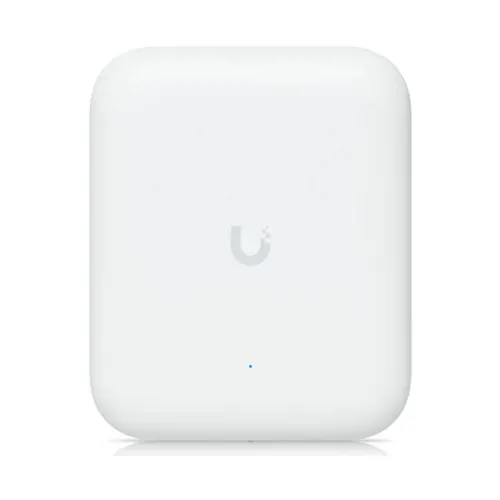

The Ubiquiti UniFi U7 Outdoor is a high-performance WiFi 7 outdoor access point designed for reliable, high-speed wireless connectivity across campuses, warehouses, offices, resorts, public spaces, and other outdoor environments. It features dual-band 2.4GHz and 5GHz WiFi 7, 4 spatial streams, an integrated directional antenna, optional external omni antennas, and a 2.5GbE PoE+ uplink. With up to 4.3Gbps on 5GHz, 688Mbps on 2.4GHz, 465m² directional coverage, IPX6 weatherproofing, and UniFi management, the U7 Outdoor is ideal for demanding outdoor wireless deployments in the UAE.
Warranty: 1 Year
Out of stock
FAQ
Is the Ubiquiti U7 Outdoor a WiFi 7 access point?
Yes. The U7 Outdoor is a dual-band WiFi 7 access point supporting 2.4GHz and 5GHz with four spatial streams.
What is the maximum speed of the U7 Outdoor?
The U7 Outdoor supports up to 688Mbps on 2.4GHz and up to 4.3Gbps on 5GHz under supported channel conditions.
Does the U7 Outdoor have a 2.5GbE port?
Yes. It has one 1/2.5GbE RJ45 networking port and uses PoE+ for power.
Is the U7 Outdoor suitable for outdoor installation?
Yes. The U7 Outdoor has an IPX6 weatherproof rating and an operating temperature range of -30°C to 60°C.
How much coverage does the U7 Outdoor provide?
Ubiquiti specifies up to 465m² (5,000ft²) of directional coverage in open outdoor environments. Actual coverage varies according to installation conditions, interference and client devices.
Can external antennas be connected to the U7 Outdoor?
Yes. The U7 Outdoor includes two RP-SMA connectors for optional external omni-directional antennas.
Does the U7 Outdoor support UniFi management?
Yes. The U7 Outdoor is managed through the UniFi Network platform and supports features such as wireless meshing, fast roaming, captive portals and advanced radio management.
