| Specification | Details |
|---|---|
| Product | Ubiquiti airMAX AC 5 GHz, 21 dBi, 60° Sector |
| Model | AM-5AC21-60 |
| Product Type | 5 GHz Sector Antenna |
| Application | Point-to-MultiPoint (PtMP) Wireless Networks |
| Wireless Technology | airMAX AC |
| Frequency Range | 5.10 – 5.85 GHz |
| Antenna Gain | 21 dBi |
| HPOL Beamwidth | 60° (6 dB) |
| VPOL Beamwidth | 60° (6 dB) |
| Electrical Beamwidth | 4° |
| Electrical Downtilt | 2° |
| Maximum VSWR | 1.5:1 |
| Polarization | Dual-Linear |
| Cross-Polarization Isolation | 25 dB Minimum |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 391 N at 200 km/h (88 lbf at 125 mph) |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount |
| Rocket Bracket | Included |
| Weatherproof RF Jumpers | Included |
| Dimensions | 750 × 173 × 78 mm |
| Dimensions in Inches | 29.5 × 6.8 × 3 inches |
| Weight | 4.8 kg (10.6 lb) |
| NDAA Compliant | Yes |
Sale!
Networking

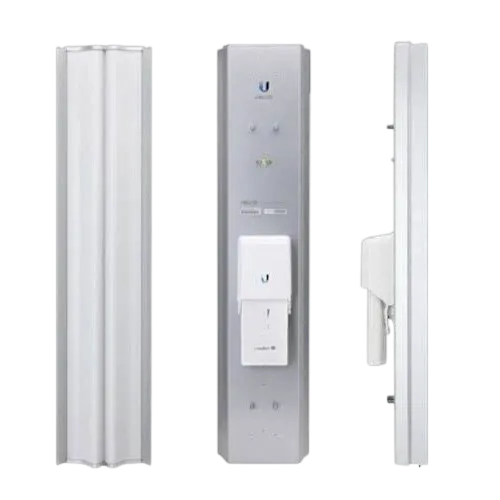

Ubiquiti airMAX AC AM-5AC21-60
Original price was: 765.00.
760.00Current price is: 760.00.
The Ubiquiti airMAX AC AM-5AC21-60 is a 5 GHz 21 dBi sector antenna designed for high-performance Point-to-MultiPoint (PtMP) wireless networks. It provides 60° horizontal and vertical beamwidth, dual-linear polarization, 4° electrical beamwidth, 2° electrical downtilt and up to 200 km/h wind survivability. The antenna includes a universal pole mount, RocketM bracket and weatherproof RF jumpers for compatible Rocket radio deployments.
Warranty: 1 Year
FAQ
What is the Ubiquiti AM-5AC21-60?
The Ubiquiti AM-5AC21-60 is a 5 GHz airMAX AC sector antenna with 21 dBi gain and 60° beamwidth, designed for Point-to-Multipoint wireless networks.
What is the frequency range of the AM-5AC21-60?
Its specified frequency range is 5.10 GHz to 5.85 GHz. Confirm that the selected frequency is permitted for your installation location.
Which radio works with the Ubiquiti AM-5AC21-60?
The antenna is designed to work with compatible Ubiquiti Rocket radios. The compatible radio is sold separately, so confirm the exact model before purchasing.
What is the antenna gain of the AM-5AC21-60?
The antenna provides 21 dBi gain and has a specified 60° horizontal and vertical beamwidth.
Where can I buy the Ubiquiti AM-5AC21-60 in the UAE?
You can check the Ubiquiti airMAX AC AM-5AC21-60 product listing at Hiba Computers for current pricing, availability and purchasing information in the UAE.
