| Specification | Details |
|---|---|
| Product | Ubiquiti UniFi Pro 24 PoE |
| Model | USW-Pro-24-PoE |
| Product Type | Layer 3 Managed PoE Switch |
| Form Factor | 1U Rack Mount |
| Gigabit RJ45 Ports | 24 × 10/100/1000 Mbps |
| PoE+ Ports | 16 |
| PoE++ Ports | 8 |
| SFP+ Ports | 2 × 10G/1G SFP+ |
| PoE Standard | IEEE 802.3af/at/bt |
| Maximum PoE per Port | 15.4W PoE / 30W PoE+ / 60W PoE++ |
| Total PoE Availability | 400W |
| Switching Capacity | 88 Gbps |
| Non-Blocking Throughput | 44 Gbps |
| Forwarding Rate | 65 Mpps |
| MAC Address Table | 16,000 |
| Supported VLANs | 1,000 |
| IPv4 Static Routes | 2 |
| Packet Buffer | 2 MB |
| IPv4 ACL | 128 |
| MAC ACL | 128 |
| Layer 3 Features | DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing |
| Layer 2 Features | LACP, STP, RSTP, IGMP Snooping, IGMP Querier, 802.1X, DHCP Snooping, Flow Control, Storm Control, Port Isolation, Port Mirroring, Loop Protection, Jumbo Frames |
| Traffic Management | QoS (DSCP), Egress Rate Limiting, Multicast Rate Limiting, Broadcast Rate Limiting |
| Security | MAC-Based ACLs, IP-Based ACLs, Device Isolation, MAC-Based Port Restriction, Network Isolation |
| Pro AV Profiles | Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron |
| Voice VLAN | Yes |
| LLDP-MED | Yes |
| Management | UniFi Network |
| Management Interface | Ethernet |
| Display | 1.3-inch Touchscreen |
| Power Input | 100–240V AC, 50/60Hz |
| Power Supply | Internal 450W AC/DC |
| DC Power Backup | USP-RPS |
| Maximum Power Consumption | 50W excluding PoE output; 450W including PoE output |
| Heat Dissipation | 170.6 BTU/hr excluding PoE output |
| Enclosure Material | SGCC Steel |
| Supported Rack Depth | 400–1200 mm |
| Dimensions | 442 × 285 × 44 mm |
| Weight Without Mounting Brackets | 4.3 kg |
| Weight With Mounting Brackets | 4.4 kg |
| Operating Temperature | -5°C to 40°C |
| Operating Humidity | 10%–90% non-condensing |
| ESD Protection | Air: ±16 kV; Contact: ±12 kV |
| NDAA Compliant | Yes |
| UniFi Network Requirement | Version 5.10.5 or later |
Sale!
Networking

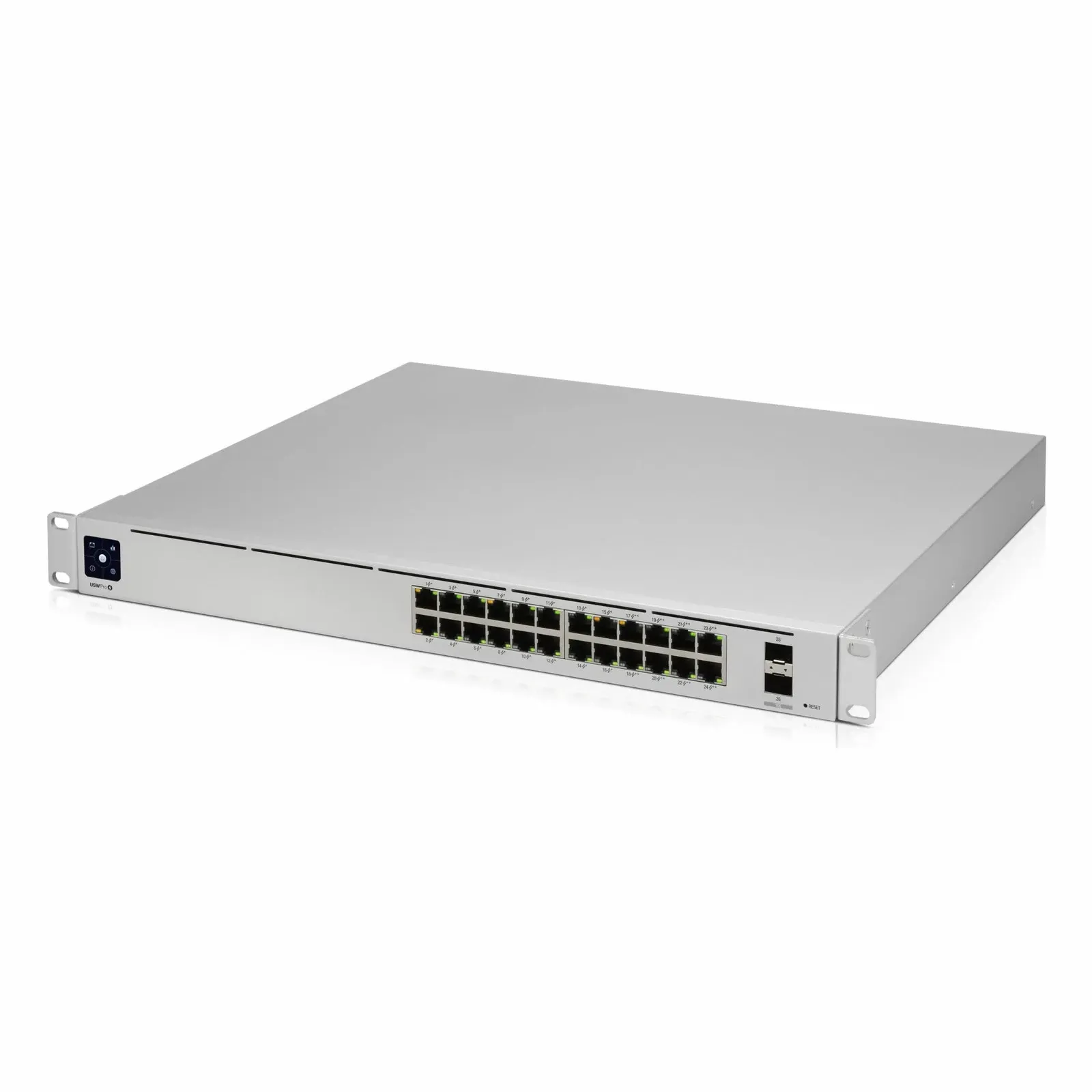

Ubiquiti UniFi Pro 24 PoE (USW-Pro-24-PoE)
Original price was: 3,330.00.
3,320.00Current price is: 3,320.00.
The Ubiquiti UniFi Pro 24 PoE (USW-Pro-24-PoE) is a professional 24-port Layer 3 managed PoE switch designed for business, enterprise, surveillance, VoIP, and high-performance UniFi networks. It provides 24 Gigabit RJ45 ports, including 16 PoE+ ports and 8 PoE++ ports, along with 2× 10G SFP+ uplinks. With up to 400W total PoE availability, 88Gbps switching capacity, 44Gbps non-blocking throughput, Layer 3 routing, UniFi Network management, a 1.3-inch touchscreen, and USP-RPS DC power backup support, the USW-Pro-24-PoE is suitable for demanding network deployments.
Warranty: 1 Year
Out of stock
FAQ
How many ports does the Ubiquiti UniFi Pro 24 PoE have?
The USW-Pro-24-PoE has 24 Gigabit RJ45 ports and 2 additional 10G/1G SFP+ ports.
How many PoE ports are available on the USW-Pro-24-PoE?
It has 16 PoE+ ports and 8 PoE++ ports, with up to 400W of total PoE availability.
Does the UniFi Pro 24 PoE support 10G?
Yes. The switch has 2 × 10G SFP+ ports for high-speed uplinks and compatible fiber or direct-attach connections.
Does the Ubiquiti USW-Pro-24-PoE support Layer 3?
Yes. It supports Layer 3 functions including DHCP Server, DHCP Relay, inter-VLAN routing and static routing.
Can the USW-Pro-24-PoE be rack mounted?
Yes. The UniFi Pro 24 PoE is a 1U rack-mount switch designed for standard network racks.
