| Specification | Details |
|---|---|
| Product | Ubiquiti UniFi U6 Mesh Pro (U6-Mesh-Pro) |
| Product Type | Indoor/Outdoor WiFi 6 Access Point |
| WiFi Standard | WiFi 6 (802.11ax) |
| Spatial Streams | 4 |
| Coverage Area | 185 m² (2,000 ft²) |
| Maximum Client Count | 250+ |
| Mounting | Wall / Pole Mount |
| Weatherproofing | IPX6 |
| 2.4 GHz MIMO | 2 × 2 DL/UL MU-MIMO |
| 5 GHz MIMO | 2 × 2 DL/UL MU-MIMO |
| 2.4 GHz Maximum Data Rate | 573.5 Mbps (BW40) |
| 5 GHz Maximum Data Rate | 2.4 Gbps (BW160) |
| 2.4 GHz Antenna Gain | 8 dBi |
| 5 GHz Antenna Gain | 8 dBi |
| 2.4 GHz Maximum TX Power | 22 dBm |
| 5 GHz Maximum TX Power | 27 dBm |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 MHz |
| Wireless Features | Wireless Meshing, Band Steering, 802.11k/v/r, Advanced Radio Management, Passpoint, Captive Portal, Guest Isolation, PPSK, Client Isolation, WiFi Speed Limiting and Dynamic RADIUS VLAN |
| Networking Interfaces | 2 × Gigabit Ethernet RJ45 |
| Uplink | 1 × Gigabit Ethernet |
| Passthrough Port | 1 × Gigabit Ethernet |
| Power Method | PoE |
| Supported Voltage Range | 42.5–57V DC |
| Maximum Power Consumption | 9W |
| PoE Adapter | Included |
| Pole Mount Diameter | 25–63.5 mm (1–2.5 inches) |
| Enclosure Material | UV-Stabilized Polycarbonate |
| Mount Material | Aluminum Alloy and Steel |
| Management | Ethernet / WiFi |
| System LED | White / Blue |
| Dimensions | 343.2 × 181.2 × 60.2 mm |
| Weight | 819 g |
| Operating Temperature | -30 to 60°C |
| Operating Humidity | 5% to 95% Non-Condensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel |
| UniFi Network Requirement | Version 8.1.127 or later |
Sale!
Networking

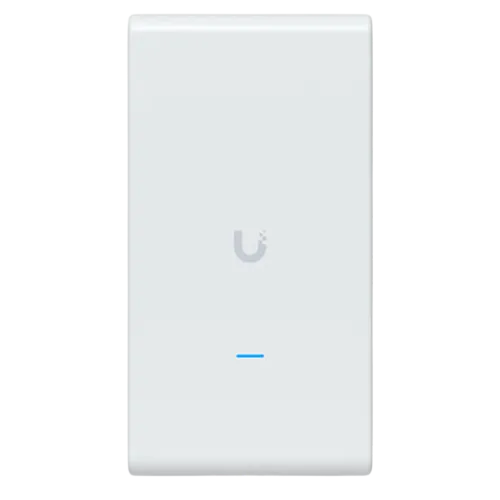

Ubiquiti UniFi U6 Mesh Pro
Original price was: 810.00.
800.00Current price is: 800.00.
The Ubiquiti UniFi U6 Mesh Pro is an indoor/outdoor WiFi 6 access point designed for reliable high-performance wireless coverage in homes, offices, hospitality environments and outdoor deployments. It features 4 spatial streams, 2×2 MU-MIMO on both 2.4 GHz and 5 GHz, speeds up to 2.4 Gbps on 5 GHz and 573.5 Mbps on 2.4 GHz, 185 m² coverage, and support for 250+ clients. With IPX6 weatherproofing, a Gigabit Ethernet uplink, a Gigabit passthrough port and PoE power, it is suitable for flexible wall and pole-mounted installations.
Warranty: 1 Year
FAQ
What is the Ubiquiti UniFi Switch Flex USW-Flex?
The Ubiquiti UniFi Switch Flex USW-Flex is a compact 5-port Layer 2 PoE switch designed for indoor and outdoor network deployments. It provides 4 PoE+ output ports and can be powered through PoE, PoE+ or PoE++.
How many PoE ports does the USW-Flex have?
The USW-Flex has 4 PoE+ output ports and 1 PoE++ input port. When powered by PoE++ or a compatible 60W PoE adapter, it provides up to 46W of total PoE availability.
What is the maximum PoE output of the UniFi Switch Flex?
Each PoE+ output port can provide up to 25W. The total available PoE power depends on the input method: up to 46W with PoE++ or a 60W PoE adapter, 20W with PoE+ input, and 8W with standard PoE input.
Can the Ubiquiti USW-Flex be used outdoors?
Yes. The USW-Flex is designed for both indoor and outdoor use and supports compact desktop, wall and pole mounting. Its operating temperature range can reach -40°C to 65°C depending on the PoE output load.
Can the USW-Flex be managed through UniFi?
Yes. The USW-Flex is managed through the UniFi Network application, allowing administrators to configure and monitor the switch and connected network devices from the UniFi platform.
Related products
-
Sale!
RG-RAP52-OD
Original price was: 326.00.
320.00Current price is: 320.00.
-
Sale! Out of stock
U7 OUTDOOR
Original price was: 905.00. 896.00Current price is: 896.00.
-
Sale!

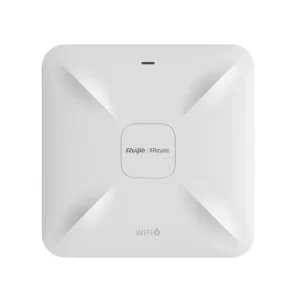

Ruijie Reyee RG-RAP2260(G)
