| Specification | Details |
|---|---|
| Product | Ubiquiti 24V 0.5A PoE Adapter |
| Model | POE-24-12W-G |
| Product Type | 12W Gigabit Passive PoE Adapter |
| Output Voltage | 24V DC |
| Output Current | 0.5A |
| Total Output Power | 12W |
| PoE Type | Passive PoE |
| Gigabit LAN Port | Yes |
| Ethernet Speed | 10/100/1000 Mbps |
| Powering Method | 2-Pair PoE |
| Power Pins | Pins 4, 5 (+) and 7, 8 (-) |
| 4-Pair Powering | No |
| Input Voltage | 100–240V AC, 50/60Hz |
| Input Current | 0.3A @ 120V AC; 0.2A @ 240V AC |
| AC Connector | IEC-320 C6 |
| Remote Reset Capability | Yes |
| Reset Button | Yes |
| LAN Activity Indicator | No |
| Efficiency | 75%+ |
| Output Ripple | 1% maximum |
| Switching Frequency | 50 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| Surge Protection | Differential and common mode |
| Clamping Protection | 11V data, 60V power |
| Maximum Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -30°C to 70°C |
| Operating Humidity | 35%–95% non-condensing |
| Dimensions | 87 × 44 × 29 mm |
| Weight | 99 g |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, UL |
Sale!
Networking

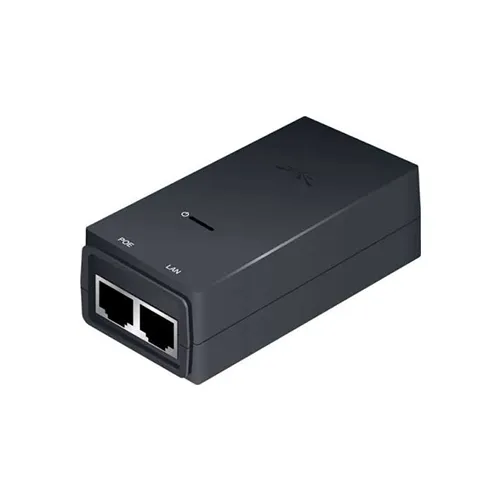

Ubiquiti 24V 0.5A PoE Adapter
Original price was: 71.00.
65.00Current price is: 65.00.
The Ubiquiti 24V 0.5A PoE Adapter is a compact 12W power-over-Ethernet solution designed to provide 24V DC power to compatible Ubiquiti networking devices. It accepts 100–240V AC input and delivers 24V DC at 0.5A through a shielded RJ45 PoE connection. Depending on the model variant, it can include Gigabit Ethernet connectivity, remote reset and surge protection.
Warranty: 1 Year
FAQ
What is the Ubiquiti 24V 0.5A PoE Adapter?
The Ubiquiti 24V 0.5A PoE Adapter is a 12W passive PoE injector that provides 24V DC at 0.5A to compatible Ubiquiti networking devices.
What is the output of the Ubiquiti 24V PoE Adapter?
It provides 24V DC at 0.5A, giving a total rated output of 12W.
What input voltage does the Ubiquiti 24V PoE Adapter support?
The adapter supports 100–240V AC at 50/60Hz.
Is the Ubiquiti 24V 0.5A adapter Gigabit?
The POE-24-12W-G variant includes a Gigabit LAN port. The standard POE-24-12W model has different Ethernet specifications, so the exact model should be checked before purchase. :
Is this a 802.3af or 802.3at PoE adapter?
No. The POE-24-12W family is a 24V passive PoE solution. It should only be connected to equipment specifically designed to accept the required 24V passive PoE input.
Does the adapter have surge protection?
Yes. Ubiquiti specifies differential and common-mode surge protection, clamping protection and additional power and data protection features.
What is the operating temperature?
The specified operating temperature is 0°C to 40°C, with storage from -30°C to 70°C. :chatgpt-content-reference{index=”15″}
