Ubiquiti UniFi E7 Campus – E7-Campus

Ubiquiti UniFi E7 Campus – E7-Campus

Original price was:  2.794,00.Current price is:  2.787,00.

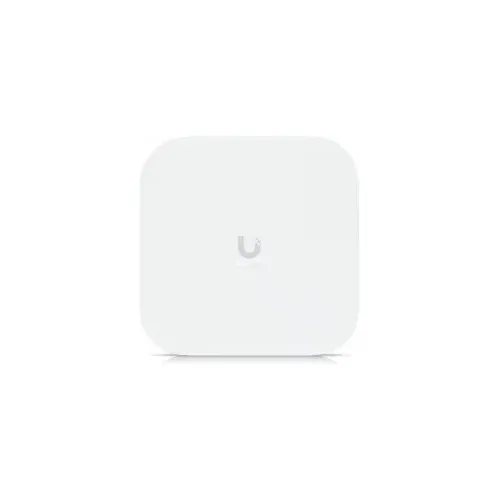

The Ubiquiti UniFi E7 Campus is an enterprise-grade WiFi 7 outdoor access point designed for high-density campus deployments. It features 10 spatial streams, integrated directional antennas, 10 GbE uplink, a redundant 1 GbE port, PRISM™ active RF filtering, and IP67 weather protection when used with the included waterproof door kit.

Warranty: 1 Year

Category: Brand:
SpecificationDetails
ProductUbiquiti UniFi E7 Campus
ModelE7-Campus
Product TypeEnterprise WiFi 7 Outdoor Access Point
WiFi StandardWiFi 7 (802.11be)
Spatial Streams10
Frequency Bands2.4 GHz / 5 GHz / 6 GHz
2.4 GHz MIMO2 × 2 MU-MIMO
5 GHz MIMO4 × 4 MU-MIMO
6 GHz MIMO4 × 4 MU-MIMO
Maximum 6 GHz Data Rate11.5 Gbps (320 MHz)
Maximum 5 GHz Data Rate8.6 Gbps (240 MHz)
Maximum 2.4 GHz Data Rate688 Mbps (40 MHz)
Coverage AreaUp to 465 m² (5,000 ft²) open space
Maximum Client Count1,000+
6 GHz Antenna Gain12 dBi
5 GHz Antenna Gain12 dBi
2.4 GHz Antenna Gain9 dBi
Antenna TypeIntegrated Directional Antennas
6 GHz Beamwidth90° × 50°
5 GHz Beamwidth100° × 55°
2.4 GHz Beamwidth90° × 80°
Primary Uplink1 × 10 GbE RJ45
Secondary Port1 × Gigabit Ethernet RJ45
Power MethodPoE++
Maximum Power Consumption44 W
Supported Voltage42.5–57V DC
WeatherproofingIPX6 / IP67 with included Waterproof Door Kit
Wireless FeaturesMLO, Wireless Meshing, Band Steering, Fast Roaming, RRM
RF FilteringPRISM™ Active RF Filtering
Spectral AnalysisDedicated Real-Time Spectral Analysis
Captive PortalYes
VLAN / RADIUSYes
MountingWall / Pole
Pole Diameter25–63.5 mm (1–2.5″)
Dimensions250 × 250 × 45.5 mm
Weight2.2 kg
Operating Temperature-30°C to 60°C
Operating Humidity5–95% RH, Non-condensing
ManagementUniFi Network
NDAA CompliantYes
