| Specification | Details |
|---|---|
| Product | Ubiquiti UniFi Dream Router 7 UDR7 |
| Product Type | 10G Cloud Gateway with Integrated WiFi 7, PoE Switch and NVR Storage |
| WiFi Standard | WiFi 7 (802.11be) |
| WiFi Streams | 6-stream |
| 6 GHz Throughput | 5.7 Gbps |
| 5 GHz Throughput | 4.3 Gbps |
| 2.4 GHz Throughput | 688 Mbps |
| 6 GHz MIMO | 2 × 2 DL/UL MU-MIMO |
| 5 GHz MIMO | 2 × 2 DL/UL MU-MIMO |
| 2.4 GHz MIMO | 2 × 2 DL/UL MU-MIMO |
| 6 GHz Antenna Gain | 6 dBi |
| 5 GHz Antenna Gain | 7 dBi |
| 2.4 GHz Antenna Gain | 5 dBi |
| Maximum TX Power | 6 GHz: 24 dBm / 5 GHz: 26 dBm / 2.4 GHz: 23 dBm |
| Coverage Area | 160 m² (1,750 ft²) |
| Connected Users | 300+ |
| 2.5GbE RJ45 Ports | 4 × 2.5GbE RJ45, including 1 × PoE port |
| Default WAN Ports | 1 × 2.5GbE RJ45 + 1 × 10G SFP+ |
| 10G SFP+ Port | 1 × 10G/1G SFP+ |
| Maximum WAN Port Count | 4 |
| IDS/IPS Throughput | 2.3 Gbps |
| PoE | 1 × PoE |
| PoE Budget | 15.4W |
| Maximum PoE Output per Port | 15.4W |
| PoE Voltage Range | 44–57V |
| NVR Storage | 64GB Pre-installed microSD Card |
| Expansion Storage | microSD Card Slot |
| UniFi Applications | UniFi Network, UniFi Protect, UniFi Access, UniFi Talk and UniFi Connect |
| VPN & SD-WAN | Site Magic, IPsec, OpenVPN, WireGuard, Teleport and L2TP |
| Security Features | Stateful Firewall, Layer 7 Firewall, DPI, Traffic Identification, IDS/IPS, Content Filtering and Advanced Filtering |
| Processor | Quad-Core ARM Cortex-A53, 1.5 GHz |
| System Memory | 3GB |
| Display | 0.96-inch Status Display |
| Power Supply | Internal AC/DC, 50W |
| Power Input | 100–240V AC, 1.5A Max, 50/60 Hz |
| Maximum Power Consumption | 26W excluding PoE output |
| Form Factor | Compact Desktop |
| Dimensions | Ø110 × 184.1 mm |
| Weight | 1.1 kg |
| Enclosure Material | Polycarbonate |
| Management | Ethernet and Bluetooth |
| Operating Temperature | -10 to 40°C |
| Operating Humidity | 5% to 95% Non-Condensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel |
Sale!
Wireless Routers
Ubiquiti UDR7
Original price was: 1,270.00.
1,263.00Current price is: 1,263.00.

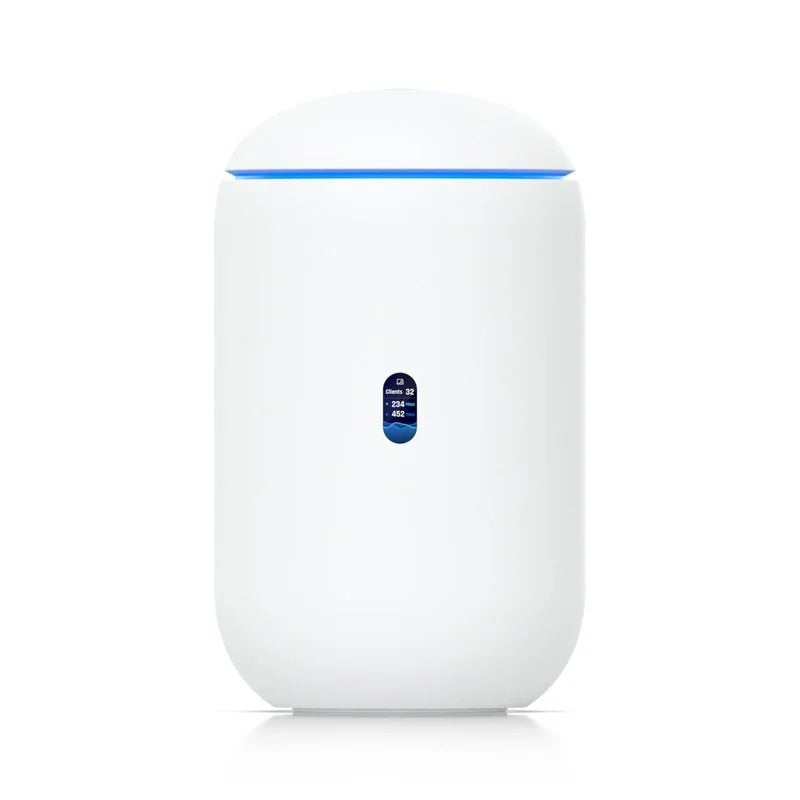

The Ubiquiti UDR7 UniFi Dream Router 7 is a compact all-in-one Cloud Gateway with integrated WiFi 7, advanced network security and UniFi application support. It provides 2.5GbE Ethernet, 10G SFP+ connectivity, up to 2.3 Gbps IDS/IPS throughput and tri-band WiFi 7 with up to 5.7 Gbps on 6 GHz. With built-in UniFi Network, Protect, Access, Talk and Connect applications, plus 64GB microSD storage for NVR use, the UDR7 is ideal for modern homes, small offices and business networks in the UAE.
Warranty: 1 Year
FAQ
What is the Ubiquiti UDR7?
The Ubiquiti UDR7 is the UniFi Dream Router 7, an all-in-one WiFi 7 Cloud Gateway combining routing, network security, wireless connectivity and UniFi applications.
Does the UDR7 support WiFi 7?
Yes. The UDR7 supports WiFi 7 across 2.4 GHz, 5 GHz and 6 GHz bands, with up to 5.7 Gbps on 6 GHz.
Does the UDR7 have a 10G port?

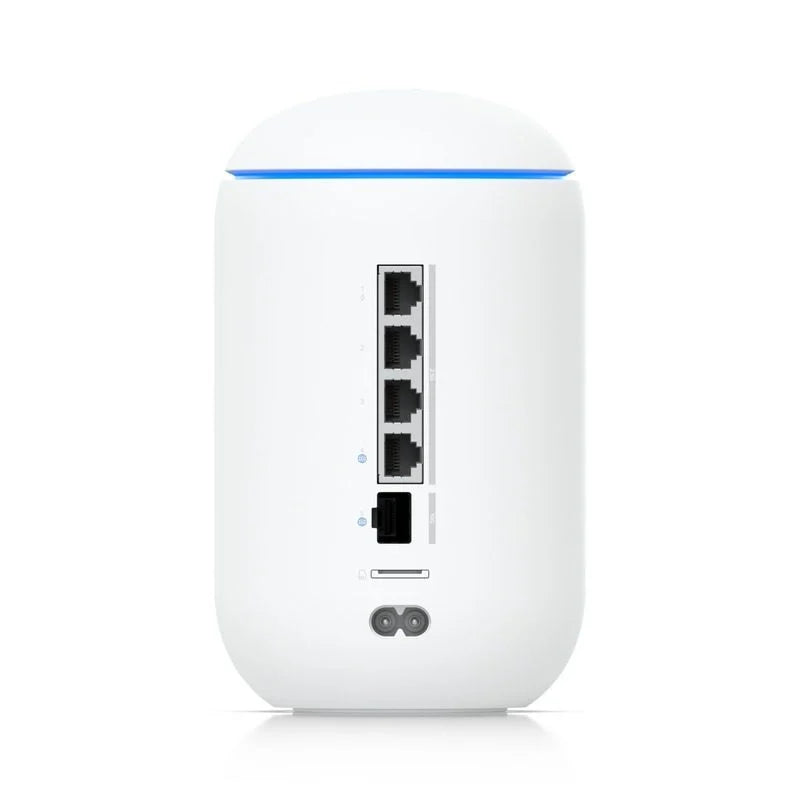

Yes. The UDR7 has one 10G/1G SFP+ port in addition to four 2.5GbE RJ45 ports.
How fast is the UDR7 IDS/IPS?
The UDR7 provides up to 2.3 Gbps IDS/IPS throughput.
How many UniFi devices can the UDR7 manage?
The UDR7 supports more than 30 managed UniFi devices and more than 300 simultaneous connected users.
Does the UDR7 support UniFi Protect cameras?

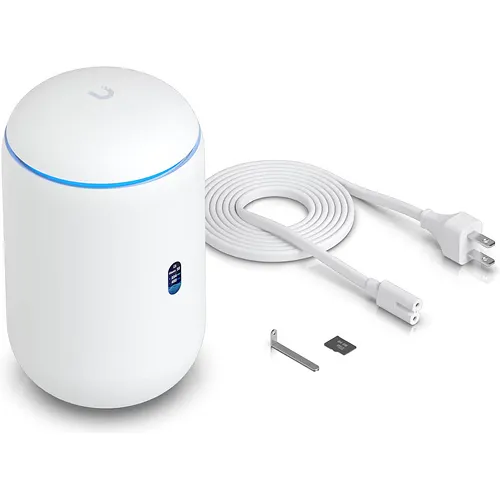

Yes. The UDR7 supports UniFi Protect and includes a pre-installed 64GB microSD card for NVR storage.
Does the UDR7 support PoE?
Yes. One of its 2.5GbE RJ45 ports provides PoE with a maximum PoE budget of 15.4W.
What is the difference between UDR7 and the original UDR?
The UDR7 is the newer WiFi 7 model with 6 GHz support, 2.5GbE connectivity, a 10G SFP+ port and 2.3 Gbps IDS/IPS throughput. The original UDR uses WiFi 6, Gigabit Ethernet and provides 1 Gbps IDS/IPS throughput.
