| Specification | Details |
|---|---|
| Product | Ubiquiti UniFi Cloud Gateway Fiber UCG-Fiber |
| Product Type | 10G Cloud Gateway with Integrated 2.5GbE Switch |
| Form Factor | Compact Desktop |
| Managed UniFi Devices | 50+ |
| Simultaneous Connected Users | 500+ |
| Managed Cameras | 15 HD / 8 2K / 5 4K |
| Managed Access Hubs | 50 |
| IDS/IPS Throughput | 5 Gbps |
| 2.5GbE RJ45 Ports | 4 × 2.5GbE |
| 10GbE RJ45 Port | 1 × 10GbE / 2.5GbE / 1GbE |
| 10G SFP+ Ports | 2 × 10G/1G SFP+ |
| Default WAN Ports | 1 × 10G SFP+ + 1 × 10GbE RJ45 |
| Maximum WAN Port Count | 6 |
| MAC Address Table | 4,000 |
| NVR Storage | Selectable NVMe SSD up to 2TB |
| PoE Budget | 30W |
| PoE Standard | PoE+ (802.3at) |
| Maximum PoE Output | 30W |
| PoE Voltage Range | 50–57V |
| Power Method | 54V DC / 1.1A DC Jack |
| Power Supply | 54V DC / 1.1A Adapter Included |
| Maximum Power Consumption | 29.4W excluding PoE output |
| Processor | Quad-Core ARM Cortex-A73 at 2.2 GHz |
| System Memory | 3GB |
| Display | 0.96-inch Status Display |
| UniFi Applications | Network, Protect, Access, Talk and Connect |
| Firewall | Stateful Firewall and Application-Aware Layer 7 Firewall |
| Security | DPI, IDS/IPS, Content Filtering, Ad Blocking and Advanced Filtering |
| VPN | Site Magic, IPsec, OpenVPN, WireGuard, Teleport and L2TP |
| Routing | Multi-WAN Load Balancing, OSPF, BGP, Advanced QoS and Advanced NAT |
| Integrated RADIUS | Yes |
| SD-WAN | License-Free SD-WAN |
| Internet Failover | UniFi LTE Backup Support |
| Enclosure Material | Polycarbonate |
| Management | Ethernet and Bluetooth |
| Dimensions | 212.8 × 127.6 × 30 mm |
| Weight | 675 g without SSD / 734 g with SSD |
| Operating Temperature | 0 to 40°C |
| Operating Humidity | 5% to 95% Non-Condensing |
| ESD/EMP Protection | Air ±8kV / Contact ±4kV |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, SRRC, Anatel |
Sale!
Wireless Routers

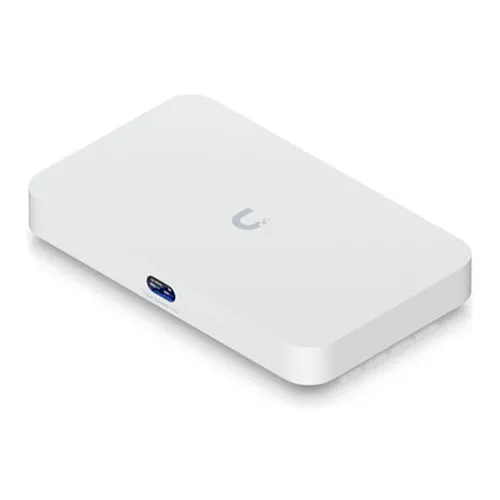

Ubiquiti Cloud Gateway Fiber | UCG-Fiber
Original price was: 1,310.00.
1,306.00Current price is: 1,306.00.
The Ubiquiti Cloud Gateway Fiber UCG-Fiber is a compact 10G UniFi Cloud Gateway designed for high-speed home, office and business networks. It combines 10GbE RJ45, 10G SFP+ and four 2.5GbE ports, delivers up to 5Gbps IDS/IPS throughput, and supports 50+ managed UniFi devices and 500+ connected users. The UCG-Fiber also runs the full UniFi application suite and supports selectable NVMe storage up to 2TB for UniFi Protect.
Warranty: 1 Year
FAQ
What is the Ubiquiti Cloud Gateway Fiber UCG-Fiber?
The Ubiquiti UCG-Fiber is a compact 10G UniFi Cloud Gateway that combines routing, firewall, VPN, UniFi management and UniFi applications in one device.
How many Ethernet ports does the UCG-Fiber have?
The UCG-Fiber has four 2.5GbE RJ45 ports, one 10GbE RJ45 port and two 10G SFP+ ports.
What is the IDS/IPS throughput of the UCG-Fiber?
The Ubiquiti Cloud Gateway Fiber provides up to 5Gbps IDS/IPS throughput.
How many UniFi devices can the UCG-Fiber manage?
The UCG-Fiber supports 50+ managed UniFi devices and 500+ simultaneously connected users according to Ubiquiti’s current specifications.
Does the UCG-Fiber support UniFi Protect?
Yes. UniFi Protect is included in the full UniFi application suite. The UCG-Fiber supports up to 15 HD, 8 2K or 5 4K managed cameras.
Does the UCG-Fiber support NVMe storage?
Yes. The UCG-Fiber supports selectable NVMe SSD storage up to 2TB for supported UniFi Protect storage requirements. An M.2 SSD Tray is required when adding your own drive later.
Does the UCG-Fiber support 10GbE?
Yes. The UCG-Fiber has one 10GbE RJ45 port and two 10G SFP+ ports, in addition to four 2.5GbE RJ45 ports.
Does the UCG-Fiber provide PoE?
Yes. The UCG-Fiber provides a 30W PoE budget for compatible PoE devices.
