| Specification | Details |
|---|---|
| Product | Ubiquiti 1G Bidirectional Single-Mode Optical Module |
| Model | UACC-OM-SM-1G-S-2 |
| Product Type | BiDi SFP Optical Transceiver |
| Form Factor | SFP |
| Supported Data Rate | 1 Gbps |
| Fiber Type | Single-Mode Fiber |
| BiDi | Yes |
| Connector | Simplex LC UPC |
| TX Wavelength | 1310 / 1550 nm |
| RX Wavelength | 1550 / 1310 nm |
| Maximum Distance | Up to 3 km (1.9 mi) |
| Maximum Power Consumption | 0.66 W |
| Operating Temperature | 0°C to 70°C |
| Pack Quantity | 2 Units |
| Compatible Interface | SFP |
| Fiber Cable Included | No |
| Laser Class | Class 1 |
Sale!
Networking

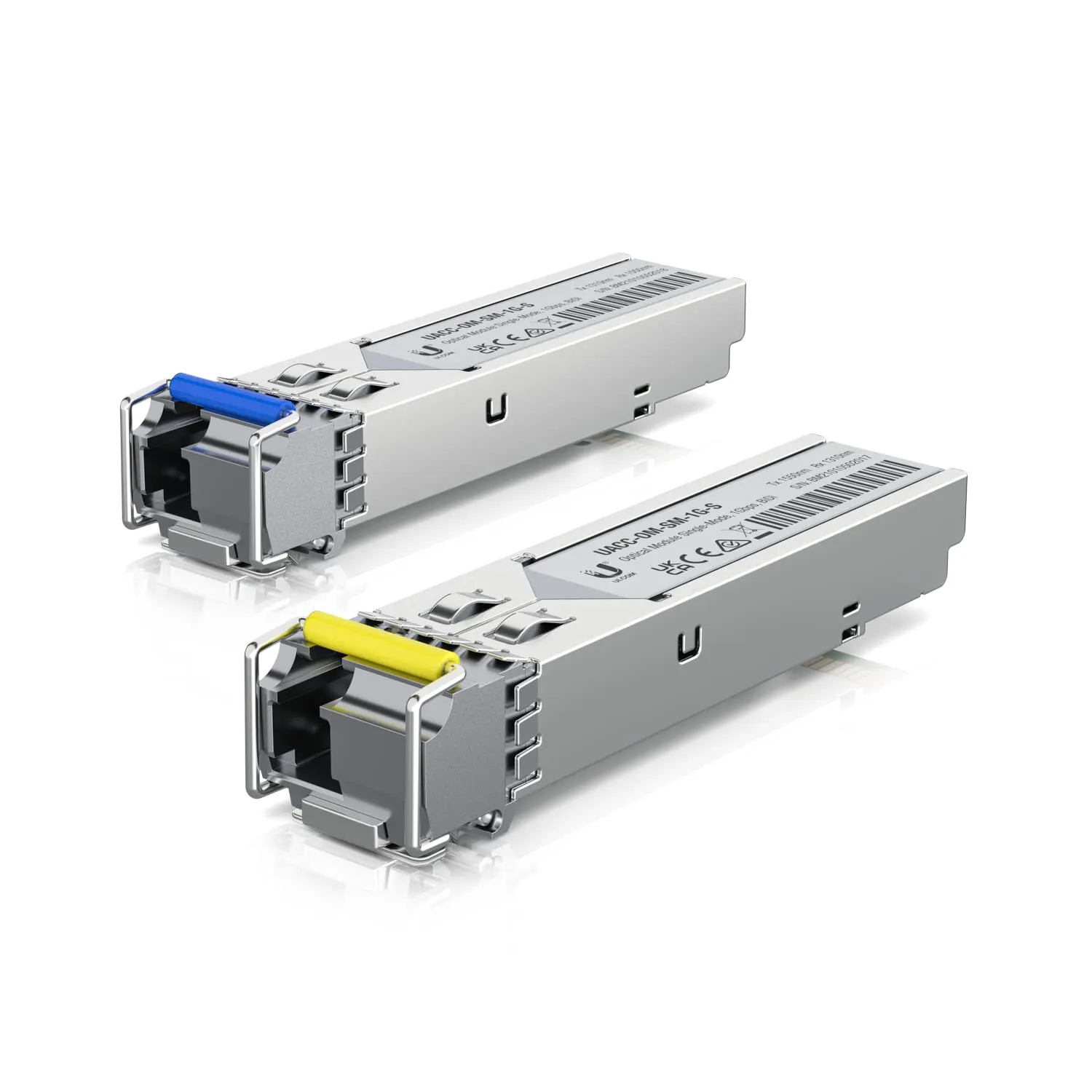

Ubiquiti UACC-OM-SM-1G-S-2
Original price was: 117.00.
110.00Current price is: 110.00.
The Ubiquiti UACC-OM-SM-1G-S-2 is a 2-pack of 1G bidirectional single-mode SFP optical modules designed for long-distance fiber networking. Each BiDi transceiver supports up to 1Gbps over single-mode fiber distances of up to 3km and uses a simplex LC UPC connector. The modules use complementary 1310nm and 1550nm transmit/receive wavelengths and are suitable for compatible SFP interfaces.
Warranty: 1 Year
FAQ
What is the Ubiquiti UACC-OM-SM-1G-S-2?
The Ubiquiti UACC-OM-SM-1G-S-2 is a 2-pack of 1G bidirectional single-mode SFP optical modules designed for compatible SFP interfaces and fiber connections up to 3km.
What speed does the UACC-OM-SM-1G-S-2 support?
The UACC-OM-SM-1G-S-2 supports a 1Gbps data rate.
What fiber does the UACC-OM-SM-1G-S-2 use?
It is designed for single-mode fiber and uses a simplex LC UPC connector.
What is the maximum distance of the Ubiquiti UACC-OM-SM-1G-S-2?
The supported cable distance is up to 3km when used with compatible single-mode fiber infrastructure.
Is the UACC-OM-SM-1G-S-2 a BiDi SFP?
Yes. It is a bidirectional BiDi SFP module that transmits and receives over a single fiber strand using complementary optical wavelengths.
Why does the UACC-OM-SM-1G-S-2 come as a 2-pack?
BiDi fiber links require complementary optical wavelength modules at the two ends of the connection. The 2-pack is intended to provide a matching pair for a fiber link.
Does the UACC-OM-SM-1G-S-2 include fiber cable?
No. The fiber cable is not included. The modules are supplied as the optical transceiver pair. :chatgpt-content-reference{index=”9″}
What connector does this Ubiquiti SFP use?
The UACC-OM-SM-1G-S-2 uses a simplex LC UPC connector.
