| Specification | Details |
|---|---|
| Product | Ubiquiti UniFi U7 In-Wall U7-IW |
| Product Type | WiFi 7 Wall-Mounted Access Point |
| WiFi Standard | WiFi 7 (802.11be) |
| Spatial Streams | 4 |
| Coverage Area | 115 m² (1,250 ft²) |
| Maximum Client Count | 200+ |
| Mounting | Wall Mount |
| 2.4 GHz MIMO | 2 × 2 DL/UL MU-MIMO |
| 5 GHz MIMO | 2 × 2 DL/UL MU-MIMO |
| 2.4 GHz Maximum Data Rate | 688 Mbps (BW40) |
| 5 GHz Maximum Data Rate | 4.3 Gbps (BW240) |
| 2.4 GHz Antenna Gain | 4 dBi |
| 5 GHz Antenna Gain | 8 dBi |
| 2.4 GHz Maximum TX Power | 23 dBm |
| 5 GHz Maximum TX Power | 24 dBm |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 MHz |
| Wireless Features | Wireless Meshing, Band Steering, 802.11k/v/r, Advanced Radio Management, Passpoint, Captive Portal, Guest Isolation, PPSK, WiFi Speed Limiting, Client Isolation, WiFi Schedules and Dynamic RADIUS VLAN |
| Networking Interface | 3 × 2.5GbE RJ45 |
| Built-In Switch | 1 × PoE+ Input and 1 × PoE Output |
| PoE Requirement for Output | PoE+ Required |
| Power Method | PoE / PoE+ |
| Supported Voltage Range | 42.5–57V DC |
| Maximum Power Consumption | 13W (Excluding PoE Output) |
| Management | Ethernet / UniFi Network |
| LED | White / Blue System LED |
| Enclosure Material | Polycarbonate and Aluminum Alloy |
| Mount Material | Aluminum Alloy |
| Dimensions | 137 × 98.7 × 30.2 mm |
| Weight | 400 g |
| Operating Temperature | -30 to 40°C |
| Operating Humidity | 5% to 95% Non-Condensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, SRRC, Anatel |
| UniFi Network Requirement | UniFi Network 9.0.114 or later |
Sale!
Wireless Access Points

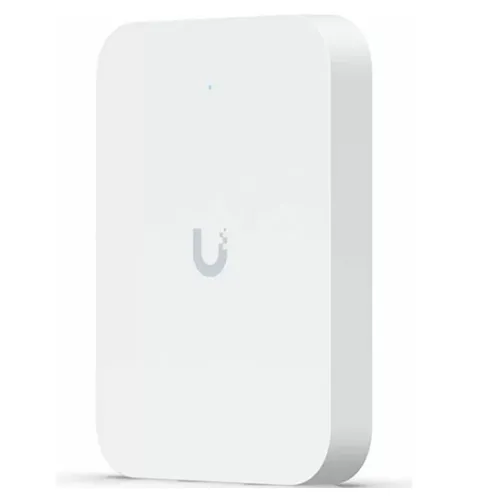

Ubiquiti U7-IW, UniFi AP U7 In-Wall
Original price was: 690.00.
670.00Current price is: 670.00.

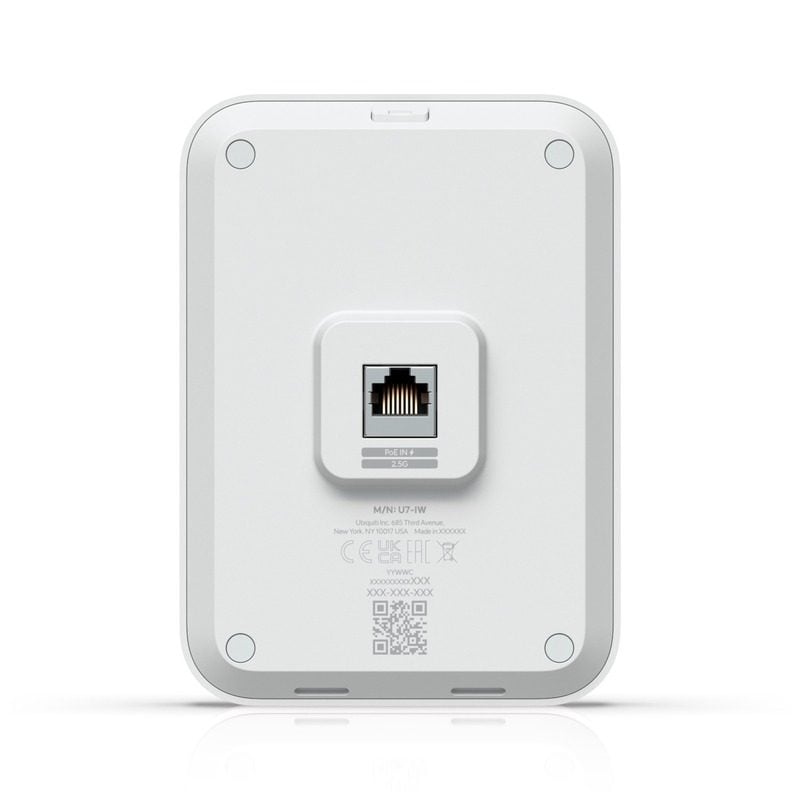

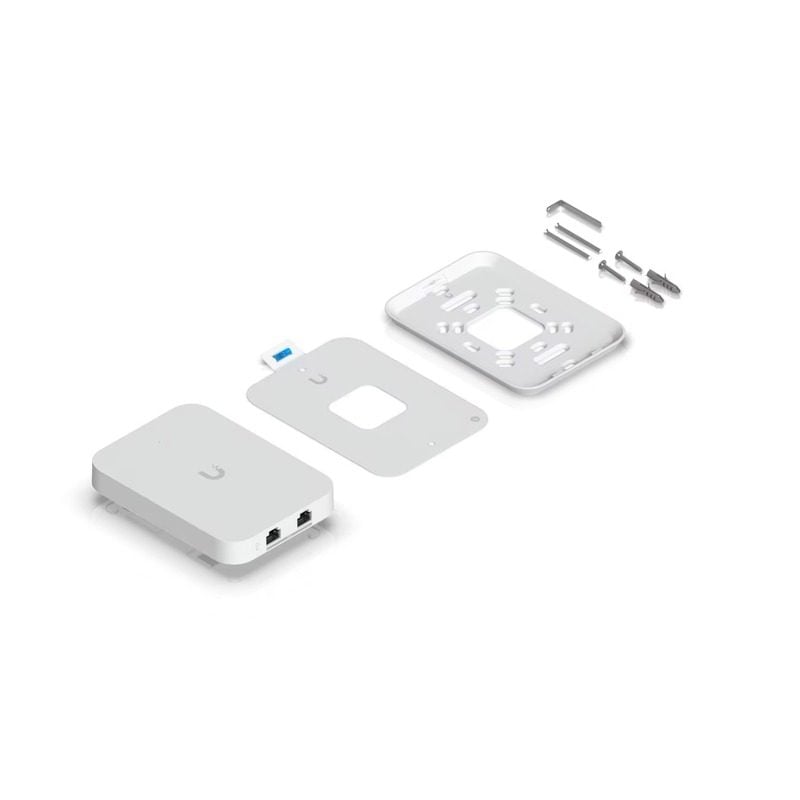

The Ubiquiti U7-IW UniFi U7 In-Wall is a 4-stream WiFi 7 wall-mounted access point designed for room-level wireless coverage in homes, offices, hotels and hospitality environments. It delivers up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz, with 2×2 MU-MIMO on both bands. The U7-IW features three 2.5GbE RJ45 ports, including PoE+ input and PoE output, supports up to 115 m² coverage and 200+ clients, and provides a compact in-wall installation for modern high-speed UniFi networks.
Warranty: 1 Year
FAQ
What is the Ubiquiti U7-IW?
The Ubiquiti U7-IW is the UniFi U7 In-Wall, a 4-stream WiFi 7 wall-mounted access point designed for room-level wireless coverage.
What WiFi standard does the U7-IW support?
The U7-IW supports WiFi 7 and is backward compatible with WiFi 6, WiFi 5 and WiFi 4 devices.
What speeds does the U7-IW support?
The U7-IW supports up to 688 Mbps on 2.4 GHz and up to 4.3 Gbps on 5 GHz.
Does the U7-IW support 6 GHz?
No. The U7-IW is a dual-band WiFi 7 access point using 2.4 GHz and 5 GHz. It does not include a 6 GHz radio.
How many Ethernet ports does the U7-IW have?
The U7-IW has three 2.5GbE RJ45 ports. One provides PoE+ input and one provides PoE output for a compatible device.
Does the U7-IW support PoE output?
Yes. The U7-IW provides one PoE output port. PoE+ input is required to use the PoE output function.
What is the coverage of the U7-IW?
Ubiquiti specifies up to 115 m² (1,250 ft²) of coverage, although actual coverage depends on the building, walls, interference and client devices.
How many clients can the U7-IW support?
The U7-IW supports more than 200 connected clients according to Ubiquiti’s specifications.
