| Specification | Details |
|---|---|
| Product | Ubiquiti UniFi Dream Machine Special Edition UDM-SE |
| Product Type | 10G Cloud Gateway with Built-in PoE Switching |
| Form Factor | 1U Rack Mount |
| UniFi Application Suite | Network, Protect, Access, Talk and Connect |
| Managed UniFi Devices | 100+ |
| Simultaneous Connected Users | 1,000+ |
| Managed Cameras | 24 HD / 14 2K / 8 4K |
| Managed Access Hubs | 150 |
| IDS/IPS Throughput | 3.5 Gbps |
| Gigabit Ethernet Ports | 8 × 1GbE RJ45 |
| 2.5GbE RJ45 Port | 1 × 2.5GbE RJ45 |
| 10G SFP+ Ports | 2 × 10G/1G SFP+ |
| Maximum WAN Port Count | 8 |
| NVR Storage | 1 × 3.5-inch HDD Bay |
| Integrated SSD | 128GB SSD |
| System Memory | 4GB |
| Internal Storage | 16GB eMMC + 128GB SSD |
| Processor | Quad-Core ARM Cortex-A57 at 1.7 GHz |
| PoE Budget | 180W |
| PoE Ports | 8 total: 6 × PoE + 2 × PoE+ |
| Maximum PoE per Port | 15.4W PoE / 30W PoE+ |
| PoE Voltage Range | 44–57V PoE / 50–57V PoE+ |
| Power Supply | Internal 240W AC/DC Power Supply |
| AC Input | 100–240V AC, 50/60 Hz, 4.4A Max. |
| Maximum Power Consumption | 50W excluding PoE output |
| Backup Power | USP-RPS DC Input |
| Redundancy | Shadow Mode (VRRP) Gateway Failover |
| Display | 1.3-inch Touchscreen |
| Management | Ethernet and Bluetooth |
| MAC Address Table | 4,000 |
| Dimensions | 442.4 × 43.7 × 285.6 mm |
| Weight | 5 kg |
| Enclosure Material | Aluminium CNC / SGCC Steel |
| Operating Temperature | -10 to 40°C |
| Operating Humidity | 5% to 95% Non-Condensing |
| ESD/EMP Protection | Air ±15kV / Contact ±8kV |
| Certifications | NDAA Compliant, CE, FCC, IC |
Sale!
Managed Switches
Ubiquiti Switch UDM-SE
Original price was: 2,322.00.
2,310.00Current price is: 2,310.00.

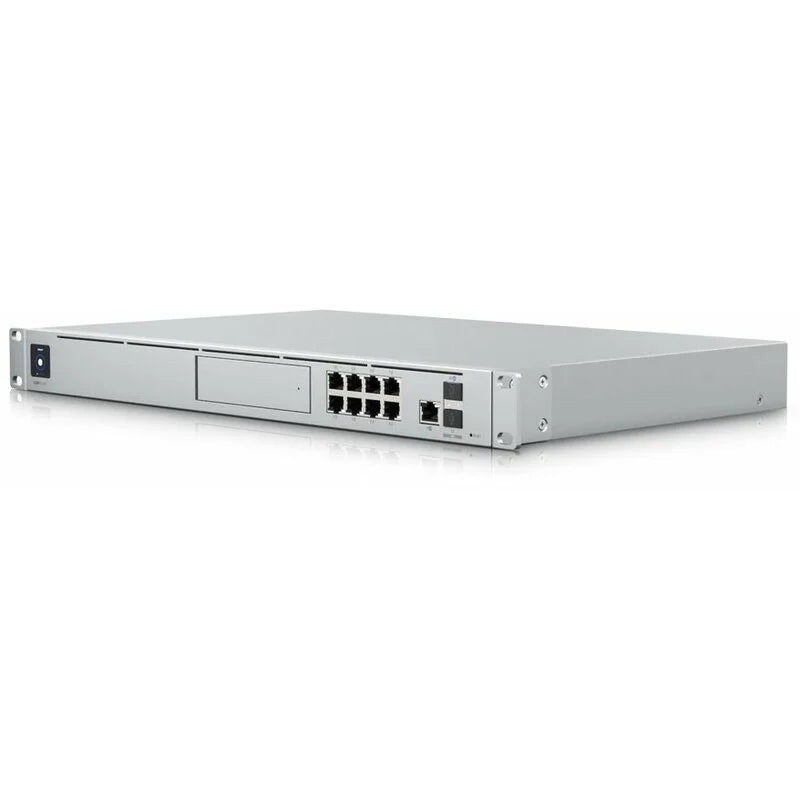

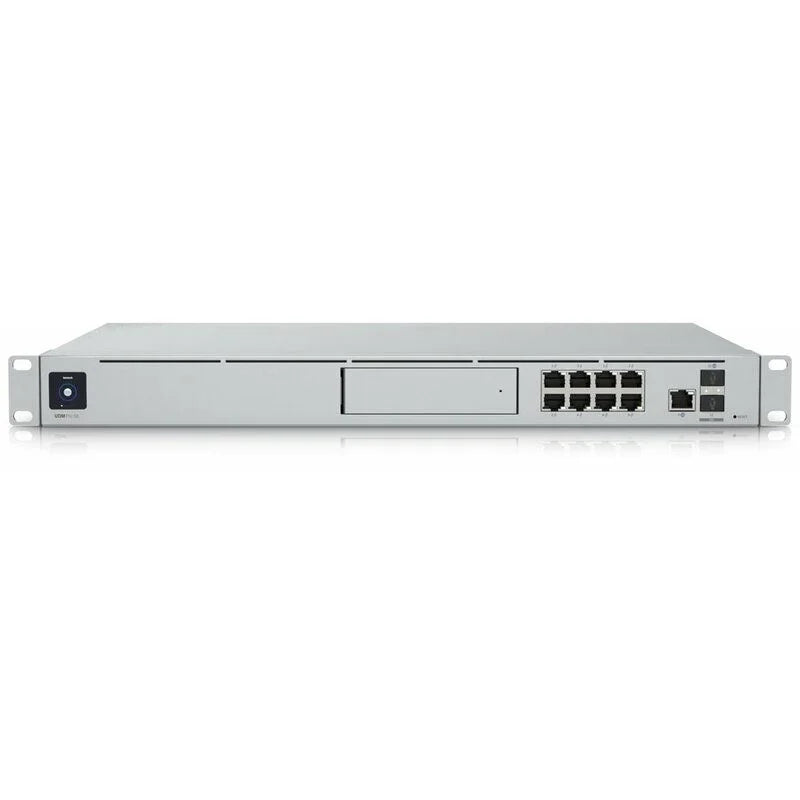

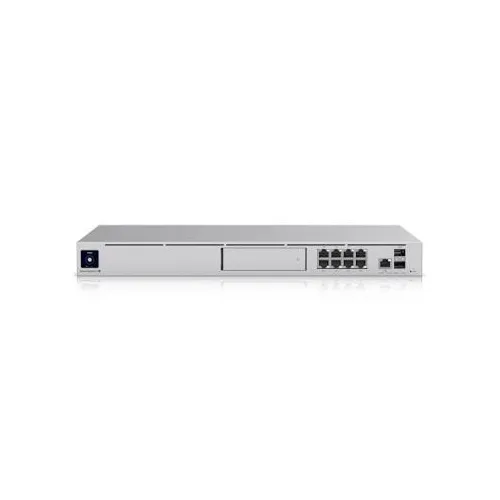

The Ubiquiti UniFi Dream Machine Special Edition UDM-SE is a 1U rack-mount 10G Cloud Gateway that combines UniFi networking, security, surveillance, access and communication applications in one powerful platform. It supports 100+ UniFi devices and 1,000+ connected users, delivers up to 3.5 Gbps IDS/IPS throughput, and includes 8 Gigabit Ethernet LAN ports, 1 × 2.5GbE RJ45 WAN port and 2 × 10G SFP+ ports. Built-in PoE switching provides a 180W PoE budget, while the integrated 3.5-inch NVR bay and 128GB SSD make it suitable for professional business and surveillance deployments.
Warranty: 1 Year
Availability: 8 in stock
FAQ
What is the Ubiquiti UniFi Dream Machine Special Edition?
The Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) is a 1U rack-mount 10G cloud gateway that combines UniFi networking, security, surveillance, access and communication applications in one device.
What ports does the UDM-SE have?
The UDM-SE includes 8 Gigabit Ethernet LAN ports, one 2.5GbE RJ45 WAN port, one 10G SFP+ LAN port and one 10G SFP+ WAN port for high-speed network connectivity.
Does the UDM-SE support PoE?
Yes. The UDM-SE has built-in PoE switching with a total 180W PoE budget, including six PoE ports and two PoE+ ports for powering compatible UniFi devices.
What IDS/IPS performance does the UDM-SE support?
The UniFi Dream Machine Special Edition supports up to 3.5 Gbps IDS/IPS throughput and can manage more than 100 UniFi devices and over 1,000 simultaneous connected users.
What is the Ubiquiti UniFi Dream Machine Special Edition?
The Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) is a 1U rack-mount 10G cloud gateway that combines UniFi networking, security, surveillance, access and communication applications in one device.
What ports does the UDM-SE have?
The UDM-SE includes 8 Gigabit Ethernet LAN ports, one 2.5GbE RJ45 WAN port, one 10G SFP+ LAN port and one 10G SFP+ WAN port for high-speed network connectivity.
Does the UDM-SE support PoE?
Yes. The UDM-SE has built-in PoE switching with a total 180W PoE budget, including six PoE ports and two PoE+ ports for powering compatible UniFi devices.
What IDS/IPS performance does the UDM-SE support?
The UniFi Dream Machine Special Edition supports up to 3.5 Gbps IDS/IPS throughput and can manage more than 100 UniFi devices and over 1,000 simultaneous connected users.
