| Specification | Details |
|---|---|
| Product | Ubiquiti UniFi Dream Machine Pro (UDM-Pro) |
| Product Type | 10G Cloud Gateway / UniFi Console |
| Form Factor | 1U Rack Mount |
| Managed UniFi Devices | 100+ |
| Simultaneous Connected Users | 1,000+ |
| Managed Cameras | 24 HD / 14 2K / 8 4K |
| Managed Access Hubs | 150 |
| IDS/IPS Throughput | 3.5 Gbps |
| LAN Ports | 8 × Gigabit Ethernet RJ45 |
| WAN Ports | 1 × Gigabit Ethernet RJ45 + 1 × 10G SFP+ |
| Additional LAN Connectivity | 1 × 10G SFP+ |
| Total 10G SFP+ Ports | 2 |
| Maximum WAN Port Count | 8 |
| Storage Bay | 1 × 3.5-inch NVR HDD Bay |
| Supported UniFi Applications | Network, Protect, Access, Talk and Connect |
| Processor | Quad-Core ARM Cortex-A57, 1.7 GHz |
| System Memory | 4 GB DDR4 |
| On-Board Storage | 16 GB eMMC |
| Display | 1.3-inch Color Touchscreen |
| Security | Stateful Firewall, Layer 7 Application-Aware Firewall, IDS/IPS, DPI, Traffic Identification, Zone-Based Firewall and Content Filtering |
| VPN & SD-WAN | License-Free SD-WAN |
| Power Supply | Internal 50W AC/DC Power Supply |
| Power Input | 100–240V AC, 50/60 Hz |
| Maximum Power Consumption | 33W |
| Redundancy | USP-RPS DC Input / Shadow Mode (VRRP) Gateway Failover |
| Dimensions | 442.4 × 43.7 × 285.6 mm |
| Weight | 3.9 kg |
| Operating Temperature | -10 to 40°C |
| Operating Humidity | 5% to 95% Non-Condensing |
| Management | Ethernet In-Band and Bluetooth |
| Certifications | CE, FCC, IC |
Sale!
Managed Switches

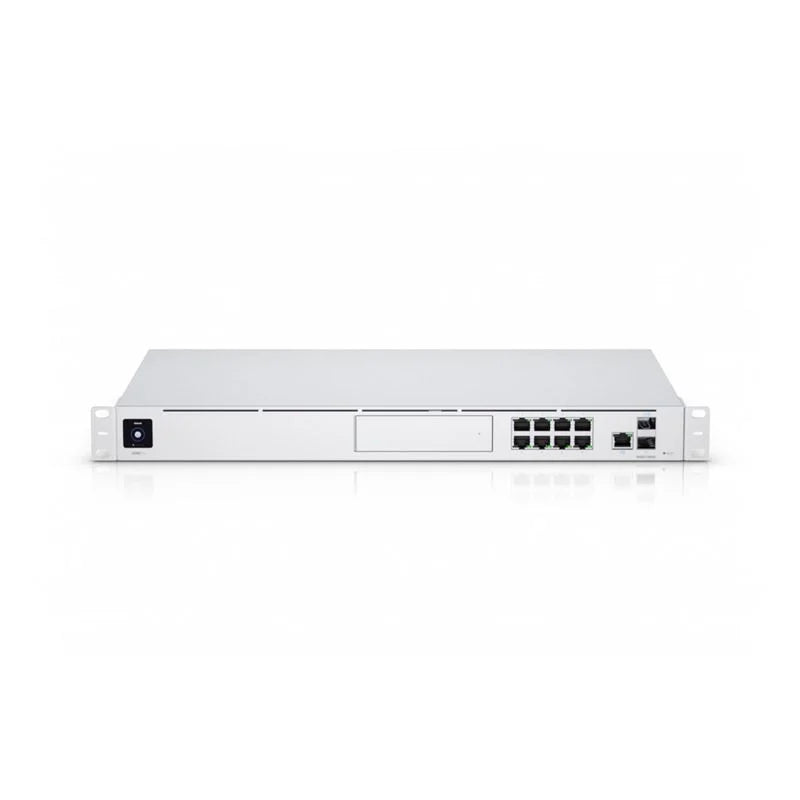

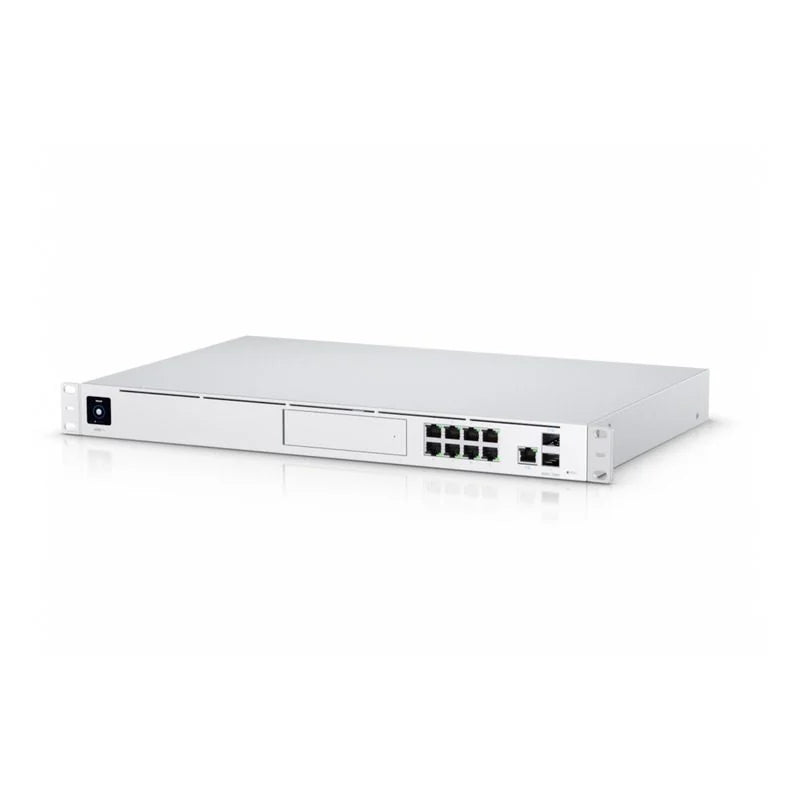

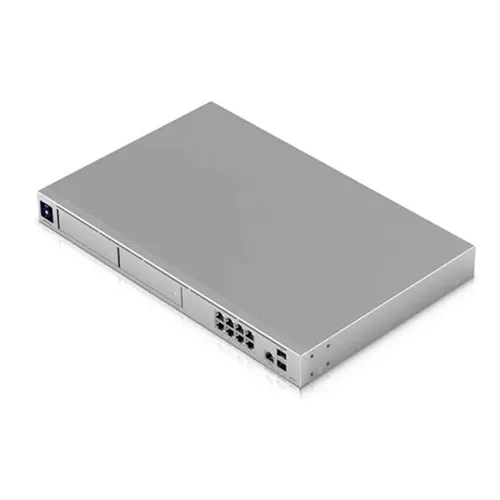

Ubiquiti Switch UDM-PRO
Original price was: 1,855.00.
1,850.00Current price is: 1,850.00.
The Ubiquiti UniFi Dream Machine Pro UDM-Pro is a 1U rack-mount 10G Cloud Gateway that combines advanced UniFi network management, security, routing and surveillance capabilities in a single device. It supports 100+ UniFi devices, 1,000+ connected clients, 3.5 Gbps IDS/IPS throughput, 10G SFP+ connectivity, eight Gigabit LAN ports, a 3.5-inch HDD bay for UniFi Protect, and a 1.3-inch touchscreen. It is designed for businesses, offices and professional UniFi network deployments.
Warranty: 1 Year
Out of stock
FAQ
What is the Ubiquiti UniFi Dream Machine Pro?
The Ubiquiti UniFi Dream Machine Pro (UDM-Pro) is a 1U rack-mount 10G cloud gateway that combines UniFi network management, security, routing and surveillance features in a single device.
What ports does the UDM-Pro have?
The UDM-Pro includes 8 Gigabit Ethernet LAN ports, 1 Gigabit Ethernet WAN port, 1 10G SFP+ LAN port and 1 10G SFP+ WAN port for high-speed network connectivity.
What IDS/IPS performance does the UDM-Pro support?
The UniFi Dream Machine Pro supports up to 3.5 Gbps IDS/IPS throughput, helping protect network traffic with integrated intrusion detection and prevention.
Does the UDM-Pro support UniFi Protect cameras?
Yes. The UDM-Pro includes UniFi Protect and has a 3.5-inch NVR HDD bay for local video recording. It can manage up to 24 HD, 14 2K or 8 4K cameras.
