| Specification | Details |
|---|---|
| Product | Ubiquiti airMAX RocketDish RD-5G34 |
| Model | RD-5G34 |
| Product Type | 5 GHz High-Performance Dish Antenna |
| Series | airMAX RocketDish |
| Application | Long-Range Point-to-Point Wireless Links |
| Frequency Range | 4.9 – 5.8 GHz |
| Gain | 4.9 GHz: 30 dBi; 5 – 5.8 GHz: 34 dBi |
| Dish Diameter | 1050 mm |
| Horizontal Beamwidth | 3° (3 dB) |
| Vertical Beamwidth | 3° (3 dB) |
| Front-to-Back Ratio | 42 dB |
| Maximum VSWR | 1.4:1 |
| Polarization | Dual-Linear |
| Cross-Polarization Isolation | 35 dB Minimum |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 1,779 N @ 200 km/h |
| Mounting | Universal Pole Mount |
| Rocket Bracket | Included |
| RF Jumpers | Weatherproof RF Jumpers Included |
| Compatible Radio | 5 GHz Ubiquiti Rocket Radio |
| Radome | Optional Accessory |
| Dimensions | 1050 × 1050 × 421 mm |
| Weight | 13.5 kg |
| ETSI Specification | EN 302 326 DN2 |
| Outdoor Use | Yes |
Sale!
Networking

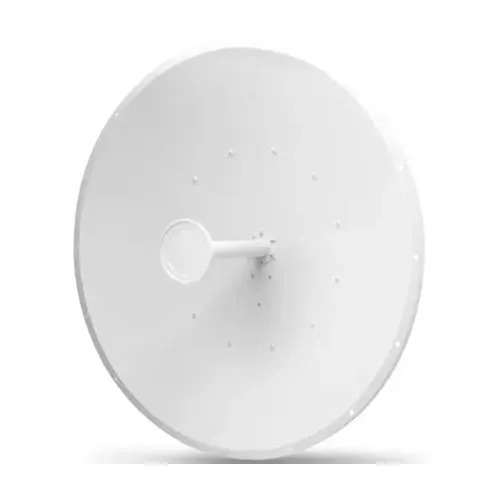

Ubiquiti airMAX RocketDish RD-5G34
Original price was: 1,142.00.
1,135.00Current price is: 1,135.00.
The Ubiquiti airMAX RocketDish RD-5G34 is a 5 GHz 34 dBi dish antenna for long-range point-to-point wireless links, with a 1050 mm reflector, 3° beamwidth and 200 km/h wind survivability. The Rocket bracket and RF jumpers are included. Available in Dubai, UAE from Hiba Computers with a 1-year warranty.
Warranty: 1 Year
FAQ
What is the Ubiquiti RocketDish RD-5G34?
The Ubiquiti RocketDish RD-5G34 is a high-performance 5 GHz dish antenna designed for long-distance wireless networking applications with compatible Ubiquiti Rocket radios.
What is the gain of the RocketDish RD-5G34?
The RD-5G34 provides up to 34 dBi gain in the 5–5.8 GHz range. At 4.9 GHz, the specified gain is 30 dBi.
What frequency range does the RD-5G34 support?
The current Ubiquiti specification lists a 4.9–5.8 GHz frequency range.
What is the beamwidth of the RocketDish RD-5G34?
The RD-5G34 has a 3° horizontal beamwidth and a 3° vertical beamwidth, providing a highly focused wireless signal.
Which Ubiquiti radios can be used with the RD-5G34?
The RocketDish RD-5G34 is designed to be used with compatible Ubiquiti Rocket radios. The 5 GHz Rocket radio is sold separately.
Can the RD-5G34 be used for long-distance wireless links?
Yes. Its high antenna gain and narrow 3° beamwidth make it suitable for long-distance wireless links when correctly installed and aligned. Actual link distance depends on radio selection, frequency, regulatory limits, line of sight, interference and environmental conditions.
Is the Ubiquiti RD-5G34 suitable for outdoor installation?
Yes. The RD-5G34 is designed for outdoor wireless deployments and has a specified wind survivability of up to 200 km/h (125 mph).
Does the RD-5G34 include mounting accessories?
Yes. The RD-5G34 includes a universal pole mount, Rocket bracket and weatherproof RF jumpers according to Ubiquiti’s specifications.
Does the RD-5G34 include a Rocket radio?
No. The Rocket radio is sold separately. The RD-5G34 is the dish antenna and mounting hardware.
Can I use the RD-5G34 with an airFiber radio?
Compatibility depends on the specific radio and required mounting or conversion hardware. Ubiquiti specifies that the AF-5XHD requires the AF-5G-OMT-S45 conversion kit when used with this antenna.
What warranty does the RD-5G34 have?
The Ubiquiti RocketDish RD-5G34 comes with a 1-year warranty from Hiba Computers.
Can I buy the Ubiquiti RocketDish RD-5G34 in UAE?
Yes. Contact Hiba Computers for current availability, pricing and delivery information for the Ubiquiti RocketDish RD-5G34 in the UAE.
