| Specification | Details |
|---|---|
| Product | Ubiquiti airMAX Omni 5 GHz, 13 dBi |
| Model | AMO-5G13 |
| Product Type | 5 GHz Outdoor Omnidirectional Antenna |
| Wireless Technology | airMAX |
| Frequency Range | 5.45–5.85 GHz |
| Antenna Gain | 13 dBi |
| Antenna Type | Omnidirectional |
| MIMO | 2 × 2 MIMO |
| Polarization | Dual-Linear |
| Coverage | 360° Omnidirectional |
| Elevation Beamwidth | 7° |
| Electrical Downtilt | 2° |
| Maximum VSWR | 1.5:1 |
| Cross-Polarization Isolation | 25 dB Minimum |
| RF Connectors | 2 × RP-SMA Connectors, Weatherproof |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 84.52 N at 200 km/h |
| Mounting | Universal Pole Mount |
| Rocket Compatibility | Designed for Ubiquiti Rocket Radios |
| Dimensions | 799 × 90 × 65 mm |
| Weight | 820 g |
| ETSI Specification | EN 302 326 DN2 |
| NDAA Compliant | Yes |
Sale!
Networking

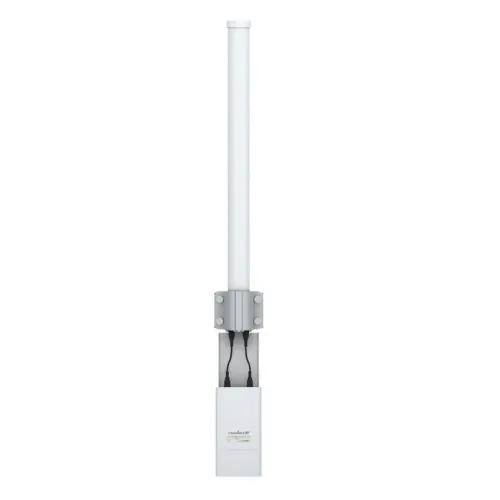

Ubiquiti airMAX Omni AMO-5G13 5GHz 13dBi Antenna
Original price was: 650.00.
645.00Current price is: 645.00.
Ubiquiti airMAX Omni AMO-5G13 is a 5GHz 13dBi outdoor omnidirectional antenna with 2×2 dual-polarity MIMO, designed for airMAX Rocket radios. It provides 360° coverage and is suitable for outdoor wireless networking and point-to-multipoint deployments.
Warranty: 1 Year
FAQ
What is the Ubiquiti AMO-5G13?
The Ubiquiti AMO-5G13 is a 5 GHz, 13 dBi omnidirectional antenna designed for outdoor airMAX wireless networks and compatible Ubiquiti Rocket radios.
What frequency does the AMO-5G13 support?
The AMO-5G13 operates in the 5 GHz frequency range from 5.45 to 5.85 GHz.
What is the antenna gain of the AMO-5G13?
The AMO-5G13 provides 13 dBi antenna gain with dual-linear polarization and a 7° elevation beamwidth.
What is included with the Ubiquiti AMO-5G13?
The package includes the antenna, two pole clamps, four carriage bolts, four serrated flange nuts and two RF cables. The universal pole mount and RocketM bracket are included for installation.
