| Specification | Details |
|---|---|
| Product | Ubiquiti airMAX LiteBeam M5 LBE-M5-23 |
| Product Type | Outdoor 5 GHz airMAX CPE |
| Frequency Band | 5 GHz |
| Operating Frequency | 5150–5875 MHz |
| Wireless Standard | 802.11n |
| AirMAX Technology | Supported |
| Antenna Gain | 23 dBi |
| Antenna Type | Integrated Directional Antenna |
| MIMO | 1 × 1 SISO |
| Maximum Output Power | 25 dBm |
| Maximum VSWR | 1.5:1 |
| Ethernet Port | 1 × 10/100 MbE RJ45 |
| Power Method | Passive PoE, 2-Pair |
| PoE Adapter | 24V / 0.2A PoE Adapter Included |
| Supported Voltage Range | 22–27V DC |
| Maximum Power Consumption | 7W |
| Processor | Atheros MIPS 74Kc, 533 MHz |
| Memory | 64 MB |
| Wireless Modes | Access Point, Station, Repeater |
| Network Modes | Bridge, Router |
| Point-to-Point | Supported |
| Point-to-Multipoint | Supported |
| Mounting | Pole Mount Included |
| Dimensions | 362 × 267 × 184 mm |
| Weight | 750 g |
| Operating Temperature | -40 to 70°C |
| Operating Humidity | 5% to 95% Non-Condensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE, RoHS, Anatel |
Sale!
Networking

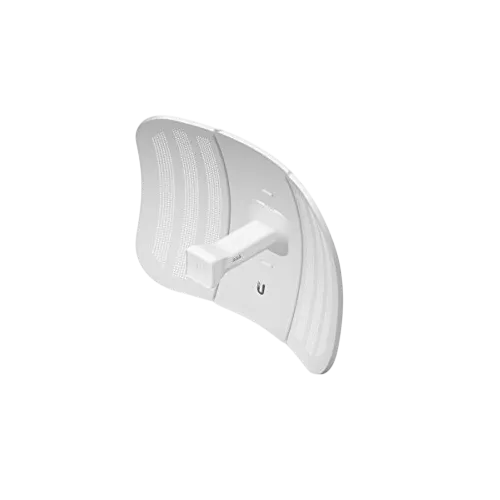

Ubiquiti airMAX LiteBeam M5 (LBE-M5-23)
Original price was: 210.00.
200.00Current price is: 200.00.
The Ubiquiti airMAX LiteBeam M5 LBE-M5-23 is a compact 5 GHz outdoor wireless CPE with an integrated 23 dBi directional antenna for long-range point-to-point and point-to-multipoint deployments. It provides a 10/100 Mbps Ethernet interface, passive PoE power, up to 25 dBm total output power and a pole-mount design. With a lightweight 750 g enclosure and operation from -40°C to 70°C, the LiteBeam M5 is suitable for ISP, WISP, rural broadband and outdoor wireless network installations.
Warranty: 1 Year
FAQ
What is the Ubiquiti LiteBeam M5 LBE-M5-23?
The Ubiquiti airMAX LiteBeam M5 LBE-M5-23 is a compact outdoor 5 GHz wireless bridge with a 23 dBi integrated antenna. It is designed for point-to-point and outdoor wireless broadband links using Ubiquiti airMAX technology.
What frequency does the LiteBeam M5 use?
The LiteBeam M5 operates in the 5 GHz frequency band. Ubiquiti specifies a worldwide operating range of 5150–5875 MHz, subject to local regulations.
What antenna gain and Ethernet port does the LiteBeam M5 have?
The LBE-M5-23 features a 23 dBi integrated antenna and one 10/100 Mbps RJ45 Ethernet port. It uses 1×1 SISO wireless technology and supports airMAX connectivity.
How is the LiteBeam M5 powered?
The LiteBeam M5 uses passive PoE over 2-pair Ethernet and includes a 24V 0.2A PoE adapter. Its current Ubiquiti specification lists maximum power consumption of 7W and a supported input range of 22–27V DC.
