| Specification | Details |
|---|---|
| Product | Ubiquiti 50V PoE Adapter |
| Model | POE-50-60W |
| Product Type | 60W PoE++ Gigabit Adapter |
| Output Voltage | 50V DC |
| Output Current | 1.2A |
| Maximum Output Power | 60W |
| PoE Type | PoE++ |
| Ethernet Port | 1 × Gigabit RJ45 |
| Supported Ethernet Speed | 10/100/1000 Mbps |
| Powering Method | 4-Pair PoE |
| Power Pins | 1, 2, 4, 5 (+) / 3, 6, 7, 8 (-) |
| Input Voltage | 100–240V AC, 50/60Hz |
| Input Current | 1.3A @ 120V AC; 0.75A @ 230V AC |
| AC Connector | IEC-320 C6 |
| Efficiency | 85%+ |
| Output Ripple | 1% maximum |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| Surge Protection | Differential and common mode |
| Clamping Protection | 11V data, 60V power |
| Maximum Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Remote Reset Capability | No |
| Reset Button | No |
| LAN Activity Indicator | No |
| Power Cable | Included |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -30°C to 70°C |
| Operating Humidity | 35%–90% non-condensing |
| Dimensions | 101 × 60 × 33 mm |
| Weight | 192 g |
| Certifications | CE, FCC, IC, UL |
| NDAA Compliant | Yes |
Sale!
Networking

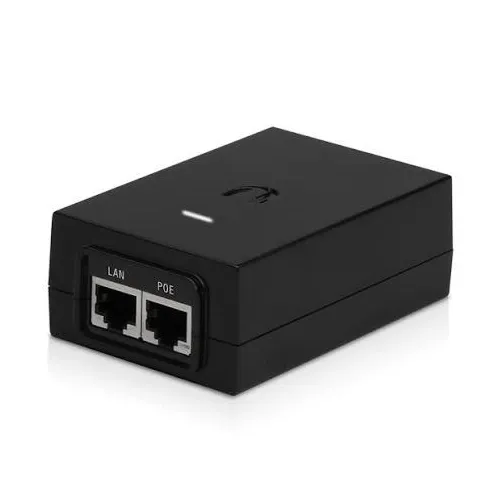

Ubiquiti 50V PoE Adapter
Original price was: 141.00.
135.00Current price is: 135.00.
Ubiquiti POE-50-60W is a 50V 60W PoE++ Gigabit Ethernet adapter designed to provide power and network connectivity to compatible Ubiquiti PoE devices. It supports 4-pair PoE powering, making it suitable for high-power UniFi devices that require PoE++.
Warranty: 1 Year
FAQ
What is the Ubiquiti POE-50-60W?
The Ubiquiti POE-50-60W is a 50V 60W PoE++ Gigabit Ethernet adapter designed to power compatible Ubiquiti PoE++ devices.
How much power does the POE-50-60W provide?
The POE-50-60W provides 50V DC at 1.2A, with up to 60W of PoE++ power for compatible devices.
Does the Ubiquiti POE-50-60W support Gigabit Ethernet?
Yes. The POE-50-60W includes a Gigabit Ethernet RJ45 port for network connectivity.
Does the POE-50-60W use 4-pair PoE?
Yes. The POE-50-60W uses 4-pair powering with pins 1, 2, 4, 5 as positive and pins 3, 6, 7, 8 as negative.
What input voltage does the POE-50-60W support?
The adapter supports 100–240V AC at 50/60Hz, making it suitable for standard electrical supplies in the UAE and other regions.
