| Specification | Details |
|---|---|
| Brand | Ruijie Reyee |
| Model | RG-POE-AT30 |
| Product Type | Single-Port Gigabit PoE+ Injector |
| Ethernet Interface | 1 × 1000BASE-T Gigabit Ethernet port |
| PoE Output Voltage | 52V DC ±5% |
| Output Current | 0.6A |
| Maximum Rated Output Power | 31.2W |
| Power Delivery Type | Passive PoE, two-pair powering |
| Power Pin Assignment | Pins 4/5 positive; pins 7/8 negative |
| AC Input Voltage | 100–240V AC |
| Input Frequency | 50/60Hz |
| Maximum Input Current | 0.7A |
| Inrush Current | Less than 100A at 230V AC |
| Maximum Cable Distance | Up to 100 metres under supported Ethernet installation conditions |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions | 95.2 × 52.2 × 33.2 mm (±1 mm) |
| Weight | 145 g (±5 g) |
| Manufacturer Warranty | 3 years; confirm the warranty applicable to your purchase |
Sale!
Networking
Ruijie Reyee RG-POE-AT30
Original price was: 80.00.
70.00Current price is: 70.00.

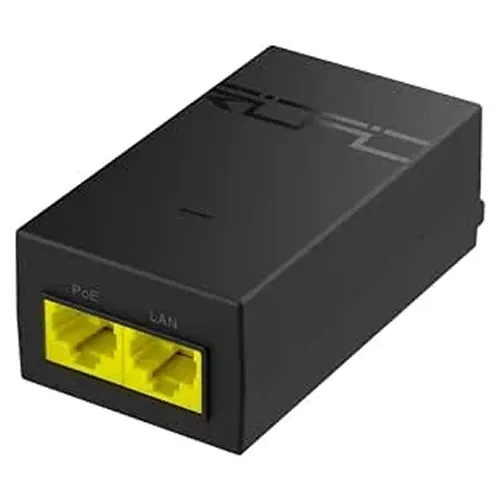

The Ruijie Reyee RG-POE-AT30 is a 1-port Gigabit passive PoE injector that delivers 52V DC power with up to 31.2W output. It is designed to power compatible Ruijie/Reyee access points and other PoE devices over Ethernet, making it suitable for home, office, hotel, and network installations.
Warranty: 1 Year
FAQ
What is the Ruijie Reyee RG-POE-AT30?
The RG-POE-AT30 is a single-port Gigabit PoE injector that supplies Ethernet data and 52V DC power to one compatible network device.
What is the maximum output power of the RG-POE-AT30?
It provides a rated output of 52V DC at 0.6A, equivalent to a maximum rated output power of 31.2W.
Does the RG-POE-AT30 support Gigabit Ethernet?
Yes. It supports 1000BASE-T Gigabit Ethernet, subject to the capabilities of the connected network devices and cabling.
Can I use the RG-POE-AT30 with any PoE device?
No. The powered device must be compatible with the injector’s 52V passive PoE output, polarity and power limit. Check the device specifications before connecting it, as passive PoE is not interchangeable with every active IEEE PoE implementation.
What AC input voltage does the RG-POE-AT30 support?
The injector accepts 100–240V AC at 50/60Hz, allowing it to operate with compatible power outlets in supported regions.
What is the maximum Ethernet cable distance?
The specified Ethernet distance is up to 100 metres under supported installation conditions. Cable quality, connected equipment and environmental factors can affect actual performance.
Where can I buy the Ruijie Reyee RG-POE-AT30 in Dubai, UAE?
Visit the RG-POE-AT30 product page on Hiba Computers to check the latest price and availability. Confirm stock and applicable warranty terms with the store before ordering.
