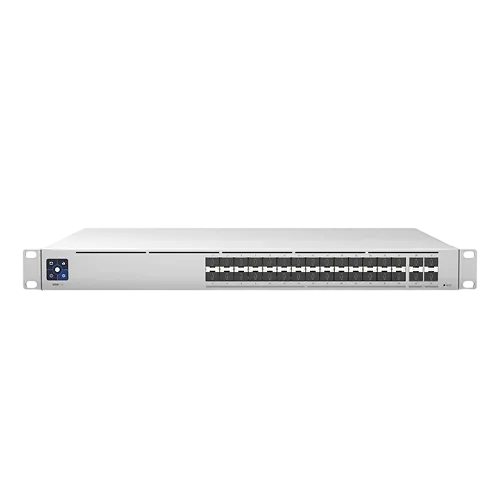

Ubiquiti USW Pro Aggregation (USW-Pro-Aggregation) is a Layer 3 managed switch with 28 × 10G SFP+ and 4 × 25G SFP28 ports, 760 Gbps switching capacity and redundant power backup. Available in Dubai, UAE from Hiba Computers with a 1-year warranty.
| Specification |
Details |
| Product |
Ubiquiti UniFi Pro Aggregation USW-Pro-Aggregation |
| Product Type |
Layer 3 Managed High-Capacity Aggregation Switch |
| Form Factor |
1U Rack Mount |
| 10G SFP+ Ports |
28 × 10G/1G SFP+ |
| 25G SFP28 Ports |
4 × 25G/10G/1G SFP28 |
| Total Ports |
32 |
| Switching Capacity |
760 Gbps |
| Total Non-Blocking Throughput |
380 Gbps |
| Forwarding Rate |
565 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table |
32,000 |
| IPv4 Static Routes |
256 |
| Packet Buffer |
4 MB |
| IPv4 ACLs |
128 |
| MAC ACLs |
128 |
| Layer 3 Features |
DHCP Server, DHCP Relay, Inter-VLAN Routing and Static Routing |
| Layer 2 Features |
LACP, STP, RSTP, QoS, IGMP Snooping, 802.1X, DHCP Snooping, Storm Control, Port Isolation, Port Mirroring, Jumbo Frames and Loop Protection |
| Pro AV Profiles |
Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67 and Crestron |
| Power Input |
100–240V AC, 50/60 Hz |
| Power Supply |
Internal 100W AC/DC |
| Maximum Power Consumption |
100W |
| Power Redundancy |
USP RPS DC Input |
| Management |
UniFi Network / Ethernet |
| Display |
1.3-inch Touchscreen |
| Cooling / Heat Dissipation |
341 BTU/hr |
| Dimensions |
442 × 325 × 44 mm |
| Weight |
4.6 kg without mounting brackets / 4.7 kg with mounting brackets |
| Enclosure Material |
SGCC Steel |
| Supported Rack Depth |
400–1200 mm |
| Operating Temperature |
-5 to 40°C |
| Operating Humidity |
10% to 90% Non-Condensing |
| ESD Protection |
Air ±16kV / Contact ±12kV |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel |
| UniFi Network Requirement |
Version 6.1.25 or later |
FAQ
What is the Ubiquiti USW Pro Aggregation?
The Ubiquiti USW Pro Aggregation is a 1U Layer 3 managed aggregation switch designed for high-speed network backbones. It provides 28 × 10G/1G SFP+ ports and 4 × 25G/10G/1G SFP28 ports for high-capacity network aggregation.
How many ports does the USW Pro Aggregation have?
The USW Pro Aggregation has 32 fiber ports in total: 28 × 10G/1G SFP+ ports and 4 × 25G/10G/1G SFP28 ports. This allows it to connect high-speed switches, servers, storage systems and other network infrastructure.
What is the switching capacity of the USW Pro Aggregation?
The USW Pro Aggregation provides up to 760 Gbps switching capacity, 380 Gbps total non-blocking throughput and 565 Mpps forwarding performance, making it suitable for high-bandwidth aggregation networks.
Does the USW Pro Aggregation support Layer 3 networking?
Yes. The USW Pro Aggregation supports Layer 3 features including inter-VLAN routing, static routing, DHCP server and DHCP relay. It also supports LACP, STP/RSTP, IGMP snooping, 802.1X, ACLs, port isolation, jumbo frames and other advanced network management features.
Does the USW Pro Aggregation provide PoE?
No. The USW Pro Aggregation is an aggregation switch without PoE output. It is designed primarily for high-speed fiber network aggregation and uses an internal 100W AC/DC power supply, with an additional USP-RPS DC input for power backup.
