| Specification | Details |
|---|---|
| Product | Ubiquiti UniFi Switch 48 PoE (USW-48-POE) |
| Product Type | Layer 2 Managed PoE+ Switch |
| Ethernet Ports | 48 × 1GbE RJ45 |
| PoE Ports | 32 × PoE+ |
| Uplink Ports | 4 × 1G SFP |
| Port Speeds | 10/100/1000 Mbps |
| PoE Standard | IEEE 802.3af/at |
| Total PoE Availability | 195W |
| Maximum PoE Output per Port | 15.4W PoE / 32W PoE+ |
| Switching Capacity | 104 Gbps |
| Total Non-Blocking Throughput | 52 Gbps |
| Forwarding Rate | 77 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table | 16,000 |
| Packet Buffer | 1.5 MB |
| Layer 2 Features | LACP, STP, RSTP, IGMP Snooping, 802.1X, DHCP Snooping, Storm Control, Port Isolation, Port Mirroring, Voice VLAN and Jumbo Frames |
| Access Lists | 128 IPv4 ACLs / 128 MAC ACLs |
| Cooling | Silent Fanless Cooling |
| Form Factor | 1U Rack Mount |
| LCM Display | 1.3-inch Touchscreen |
| Power Supply | Internal 240W AC/DC |
| Power Input | 100–240V AC, 50/60 Hz |
| Maximum Power Consumption | 45W excluding PoE output / 240W including PoE output |
| Management | Ethernet / UniFi Network |
| Dimensions | 442 × 285 × 44 mm |
| Weight | 4.5 kg without mounting brackets / 4.6 kg with brackets |
| Enclosure Material | SGCC Steel |
| Supported Rack Depth | 400–1200 mm |
| Operating Temperature | -5 to 40°C |
| Operating Humidity | 10% to 90% non-condensing |
| ESD Protection | Air ±16kV / Contact ±12kV |
| Certifications | NDAA Compliant, CE, FCC, IC, Anatel |
| Application Requirement | UniFi Network 7.2.94 or later |
Sale!
Layer 3 Switches

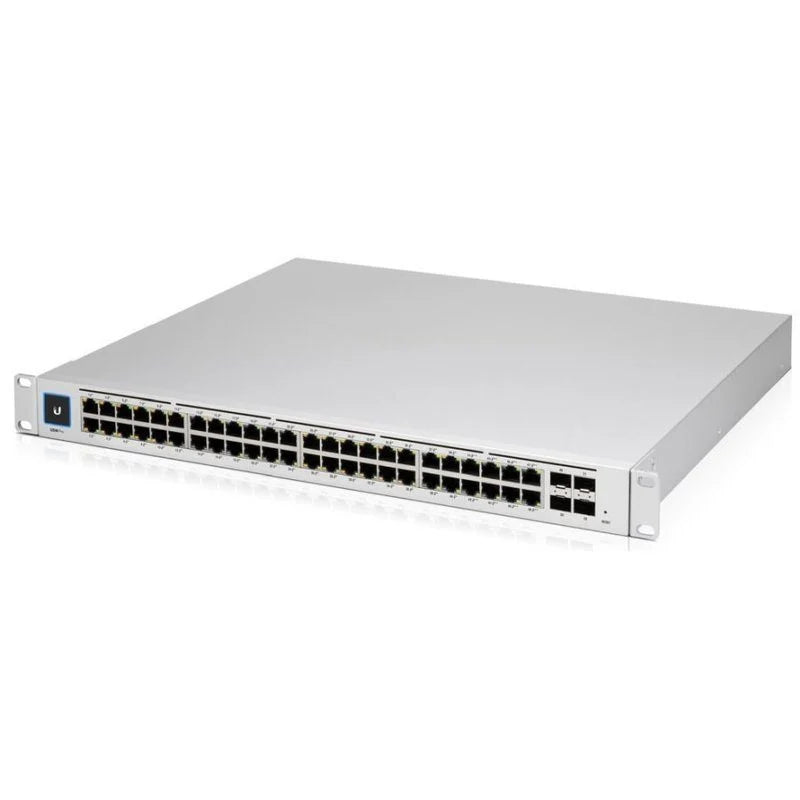

Ubiquiti USW-48-POE UniFi Switch 48 PoE
Original price was: 2,304.00.
2,295.00Current price is: 2,295.00.
The Ubiquiti UniFi Standard 48 PoE USW-48-POE is a 48-port Gigabit Layer 2 managed switch designed for business, office and enterprise networks. It provides 48 × Gigabit RJ45 ports, including 32 PoE+ ports, with a total 195W PoE budget, plus 4 × 1G SFP uplinks. With 104Gbps switching capacity, 52Gbps non-blocking throughput, advanced Layer 2 features and fanless operation, the USW-48-POE is a reliable choice for powering UniFi access points, IP cameras, VoIP phones and other PoE devices in Dubai and across the UAE.
Warranty: 1 Year
FAQ
What is the Ubiquiti USW-48-POE?
The Ubiquiti USW-48-POE is a 48-port UniFi Standard Layer 2 managed switch with 32 PoE+ ports, a 195W PoE budget and four 1G SFP uplinks.
How many PoE ports does the USW-48-POE have?
The USW-48-POE has 32 Gigabit PoE+ ports supporting IEEE 802.3af and 802.3at.
What is the PoE budget of the USW-48-POE?
The switch provides a total PoE availability of 195W.
How many Ethernet ports does the UniFi Standard 48 PoE have?
The switch has 48 Gigabit RJ45 Ethernet ports. Thirty-two support PoE+ output.
Does the USW-48-POE have SFP ports?
Yes. The USW-48-POE includes four 1G SFP ports for fiber or compatible SFP uplink connections.
What is the switching capacity of the USW-48-POE?
The USW-48-POE has a 104Gbps switching capacity and 52Gbps total non-blocking throughput.
Is the USW-48-POE a Layer 2 switch?
Yes. The UniFi Standard 48 PoE is a managed Layer 2 switch with VLAN, LACP, STP/RSTP, IGMP, 802.1X, DHCP snooping, port isolation and other Layer 2 features.
Does the USW-48-POE support UniFi Network?
Yes. The switch is managed through UniFi Network and requires UniFi Network version 7.2.94 or later according to Ubiquiti’s current specifications.
Is the USW-48-POE fanless?
Yes. Ubiquiti describes the Standard 48 PoE as a fanless switch, making it suitable for quiet office and commercial environments.
Is the USW-48-POE a 2.5GbE or 10GbE switch?
No. The 48 RJ45 ports are Gigabit Ethernet, and the four SFP uplinks are 1Gbps. This model should not be described as a 2.5GbE or 10GbE switch.
Can the USW-48-POE be rack mounted?
Yes. The switch uses a 1U rack-mount design and supports standard network rack installations.
