| Specification | Details |
|---|---|
| Product | Ubiquiti UniFi Gateway Max |
| Model | UXG-Max |
| Product Type | Multi-WAN Independent Security Gateway |
| Form Factor | Compact Desktop |
| WAN Ports | 1 × 2.5 GbE RJ45 |
| Maximum WAN Ports | Up to 4 |
| LAN Ports | 4 × 2.5 GbE RJ45 |
| Remappable Port | 1 × LAN port can be remapped to WAN |
| Port Speeds | 2.5G / 1G / 100M / 10M |
| IDS/IPS Throughput | Up to 2.3 Gbps |
| MAC Address Table | 2,000 |
| Firewall | Stateful Firewall |
| Layer 7 Firewall | Application-Aware Layer 7 Firewall |
| Traffic Identification | DPI and Traffic Identification |
| Zone-Based Firewall | Advanced filtering by regions, domains and applications |
| Content Filtering | Yes |
| Intrusion Prevention | IDS/IPS |
| CyberSecure | 55,000+ IDS/IPS signatures with CyberSecure |
| Multi-WAN Load Balancing | Yes |
| SD-WAN | License-free SD-WAN |
| Site-to-Site VPN | Site Magic, IPsec and OpenVPN |
| VPN Server | Teleport, WireGuard, OpenVPN and L2TP |
| VPN Client | OpenVPN and WireGuard |
| Dynamic Routing | OSPF |
| Advanced QoS | Yes |
| Multicast DNS | mDNS |
| Advanced NAT | SNAT, DNAT, Masquerade, NAT Pooling and 1-to-1 NAT |
| RADIUS | Integrated RADIUS Server and RADIUS over TLS (RadSec) |
| UniFi LTE Backup | Supported |
| Internet Quality Monitoring | Internet Quality and Outage Reporting |
| Virtual Network Override | Yes |
| All Traffic Flows | Yes |
| Processor | Quad-core ARM Cortex-A53, 1.5 GHz |
| System Memory | 2 GB |
| Power Method | USB Type-C |
| Power Input | 5V DC / 3A |
| Power Supply | USB Type-C, adapter included |
| Supported Voltage | 100–240V AC |
| Maximum Power Consumption | 9.6W |
| Heat Dissipation | 33 BTU/hr |
| Dimensions | 141.8 × 127.6 × 30 mm |
| Weight | 520 g |
| Enclosure Material | Polycarbonate |
| Management | Ethernet and Bluetooth |
| LEDs | Ethernet and System |
| Button | Factory Reset |
| ESD/EMP Protection | Air: ±8 kV, Contact: ±4 kV |
| Operating Temperature | -10°C to 40°C |
| Operating Humidity | 5%–95% non-condensing |
| Management Platform | UniFi Network |
| UniFi Network Requirement | Version 8.1.113 or later |
| Management Options | CloudKey, Official UniFi Hosting or UniFi Network Server |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel |
Sale!
Networking

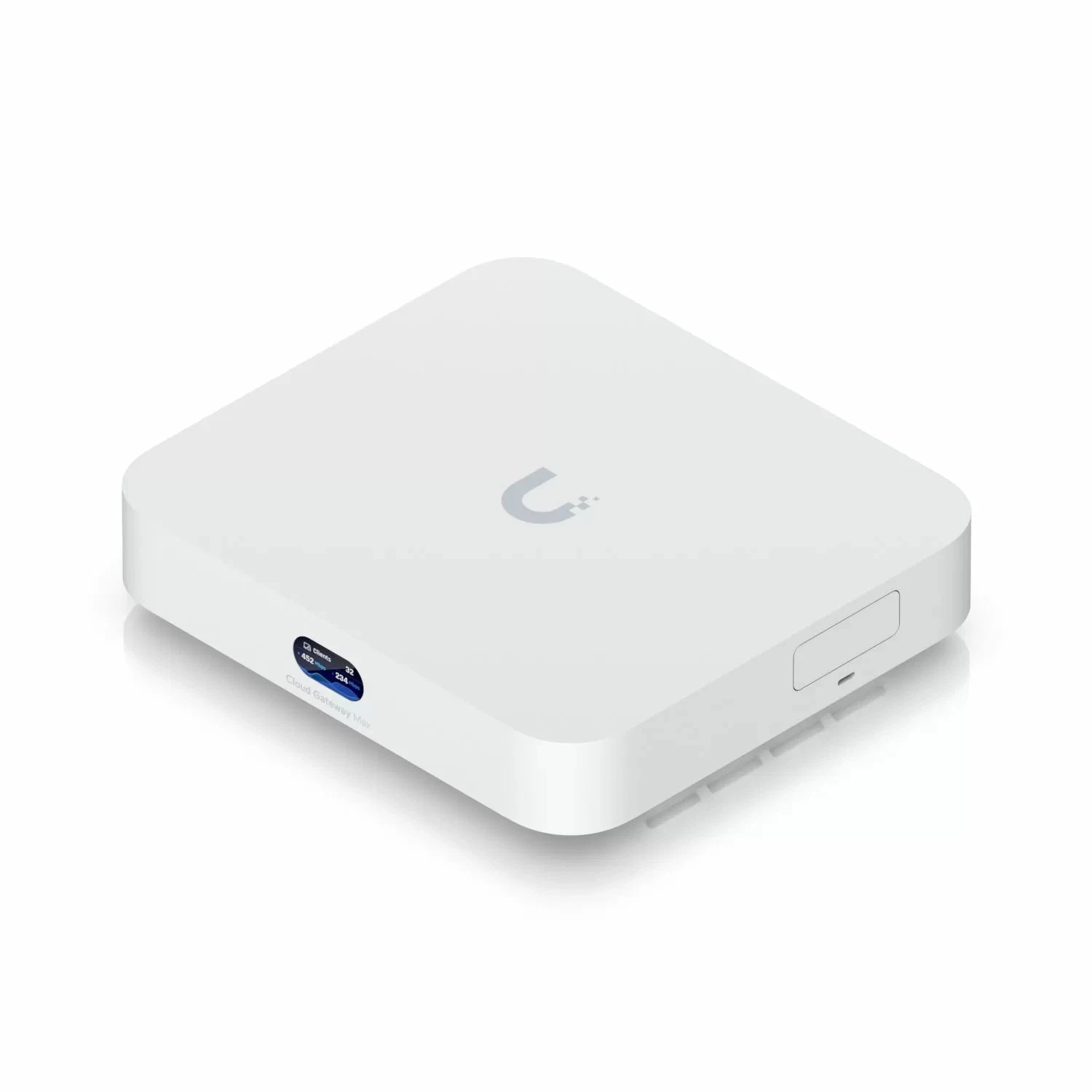

Ubiquiti UniFi Gateway Max (UXG-Max)
Original price was: 768.00.
760.00Current price is: 760.00.
The Ubiquiti UniFi Gateway Max (UXG-Max) is a compact, high-performance independent gateway designed for small and medium-sized networks. It provides full 2.5GbE connectivity, multi-WAN support, up to 2.3Gbps IDS/IPS throughput, advanced firewall features, VPN connectivity and UniFi Network management. With one dedicated 2.5GbE WAN port and four 2.5GbE LAN ports, including one remappable WAN/LAN port, the UXG-Max is ideal for modern home, office and business networks requiring fast and secure routing.
Warranty: 1 Year
FAQ
What is the Ubiquiti UniFi Gateway Max UXG-Max?
The Ubiquiti UniFi Gateway Max (UXG-Max) is an independent UniFi gateway with five 2.5GbE Ethernet ports, multi-WAN support, advanced firewall features, VPN capabilities and up to 2.3Gbps IDS/IPS throughput.
Does the UXG-Max have 2.5GbE ports?
Yes. The UXG-Max has five 2.5GbE RJ45 ports. One is configured as WAN by default, while four operate as LAN ports. One LAN port can be remapped for WAN use.
Does the UXG-Max include UniFi Network?
No. The UXG-Max is an independent gateway and requires a compatible UniFi Network control plane such as a CloudKey, Official UniFi Hosting or UniFi Network Server.
What is the IDS/IPS throughput of the UXG-Max?
The Ubiquiti UniFi Gateway Max supports up to 2.3Gbps of IDS/IPS throughput.
Does the UXG-Max support multiple WAN connections?
Yes. The UXG-Max supports multi-WAN load balancing and can use a remappable LAN port as an additional WAN connection.
Does the UXG-Max support WireGuard?
Yes. WireGuard is supported for both VPN server and VPN client functionality.
What is the difference between UXG-Max and UCG-Max?
The UXG-Max is an independent gateway that requires a separate UniFi Network controller. The UCG-Max is a Cloud Gateway with UniFi Network and other UniFi applications integrated into the device.
