| Specification | Details |
|---|---|
| Product | Ubiquiti UniFi G3 Reader |
| Model | UA-G3 |
| Product Type | Compact Door Access Reader |
| Management | UniFi Access |
| NFC Card & Keyfob Access | Yes |
| Apple Wallet | Yes |
| Google Wallet | Yes |
| Mobile Unlock | Yes |
| Touch Pass | Yes |
| Request to Exit | Handwave |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | Less than 30 mm |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092, MIFARE Classic, MIFARE DESFire, Sony FeliCa ID only, NFC Forum Tags |
| Networking Interface | 1 × 10/100 MbE RJ45 |
| Connectivity | Bluetooth 4.1 + NFC |
| Power Method | PoE |
| Supported Voltage | 48V DC |
| Maximum Power Consumption | 5W |
| Speaker | Yes |
| LED Indicators | Red / Green / Blue / White |
| Sensor | Proximity Sensor |
| Weatherproofing | IP55 |
| Indoor / Outdoor Use | Yes |
| Mounting | In-wall / Gang Box |
| Gang Box | Included |
| Junction Box | Optional |
| Enclosure Material | Polycarbonate and Glass |
| Mount Material | Aluminum Alloy |
| Dimensions | 93 × 40 × 36.5 mm |
| Weight | 82 g |
| Operating Temperature | -30°C to 45°C |
| Operating Humidity | 5%–90% non-condensing |
| ESD/EMP Protection | Air: ±15 kV / Contact: ±8 kV |
| Certifications | CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1 |
| UL 294 Level | Destructive Attack: Level I / Line Security: Level I / Endurance: Level I / Standby Power: Level I |
| NDAA Compliant | Yes |
Sale!
Networking

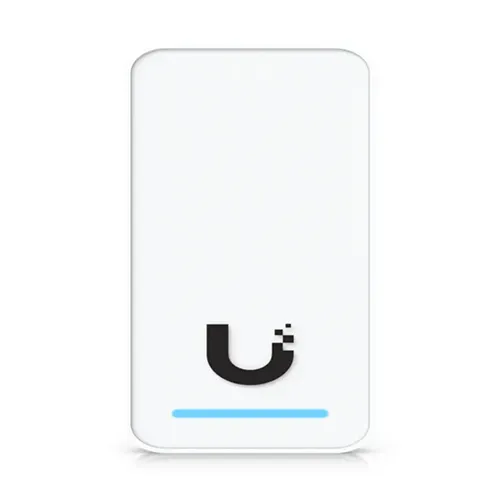

Ubiquiti UniFi G3 Reader (UA-G3)
Original price was: 666.00.
660.00Current price is: 660.00.
Ubiquiti UniFi G3 Reader (UA-G3) is a compact UniFi Access door reader designed for secure modern entry control. It supports NFC cards and keyfobs, Apple and Google Wallet, mobile unlock and Touch Pass, with PoE connectivity, Bluetooth 4.1, IP55 protection and a built-in speaker. Its compact 93 × 40 × 36.5 mm design makes it suitable for indoor and outdoor access-control installations.
Warranty: 1 Year
FAQ
What is the Ubiquiti UniFi G3 Reader UA-G3?
The Ubiquiti UniFi G3 Reader UA-G3 is a compact access control reader designed for secure door entry using NFC cards, keyfobs and mobile devices.
Does the UA-G3 support NFC and mobile access?
Yes. The UA-G3 supports NFC cards and keyfobs, Apple and Google Wallet, and mobile unlock for convenient access control.
Does the UniFi G3 Reader support PoE?
Yes. The UA-G3 supports PoE power and uses a 10/100 Mbps Ethernet connection for network connectivity with UniFi Access.
Can the Ubiquiti UA-G3 be used outdoors?
Yes. The G3 Reader has an IP55 weatherproof rating and supports both indoor and outdoor installation, with in-wall or gang-box mounting options.
