| Specification | Details |
|---|---|
| Product | Ubiquiti UISP Cable Carrier |
| Model | UISP-Cable-Carrier |
| Product Type | Industrial-Grade Shielded CAT5e Ethernet Cable |
| Cable Length | 305 m (1,000 ft) |
| Cable Type | CAT5e, Shielded |
| Ethernet Support | Up to 1 Gbps |
| Cable Color | Black |
| Conductor | Solid Bare Copper |
| Conductor Wire Gauge | 24 AWG |
| Conductor Diameter | 0.500 ± 0.005 mm |
| Insulation Type | Solid Polyethylene |
| Insulation Thickness | Average 0.295 mm; Minimum 0.29 mm |
| Insulation Diameter | 1.16 ± 0.02 mm |
| Anti-Crosstalk Divider | LDPE, 4.2 × 0.3 mm |
| Cable Shield | Aluminum Foil, 0.060 mm thick |
| Shield Extent | 20 mm |
| ESD Drain Wire | 0.4 TC |
| Secondary Cable Shield | Braided Shield, 16 × 8 × 0.16AA |
| Braid Density | 95% |
| Rip Cord | Yes |
| Jacket Material | Polyethylene |
| Jacket Thickness | Average 0.52 mm; Minimum 0.46 mm |
| Jacket Outer Diameter | 6.8 ± 0.30 mm |
| Jacket Color | Black |
| UV Resistance | ASTM G151/G154 |
| Storage Temperature | -30°C to 75°C |
| Installation Temperature | -20°C to 60°C |
| Operating Temperature | -40°C to 80°C |
| Box Dimensions | 330 × 425 × 340 mm |
| Box Weight | 16 kg |
| Standards | ANSI/TIA-568-C.2 (2009); ISO/IEC 11801 (Edition 2.2) |
| NDAA Compliant | Yes |
Sale!
Networking

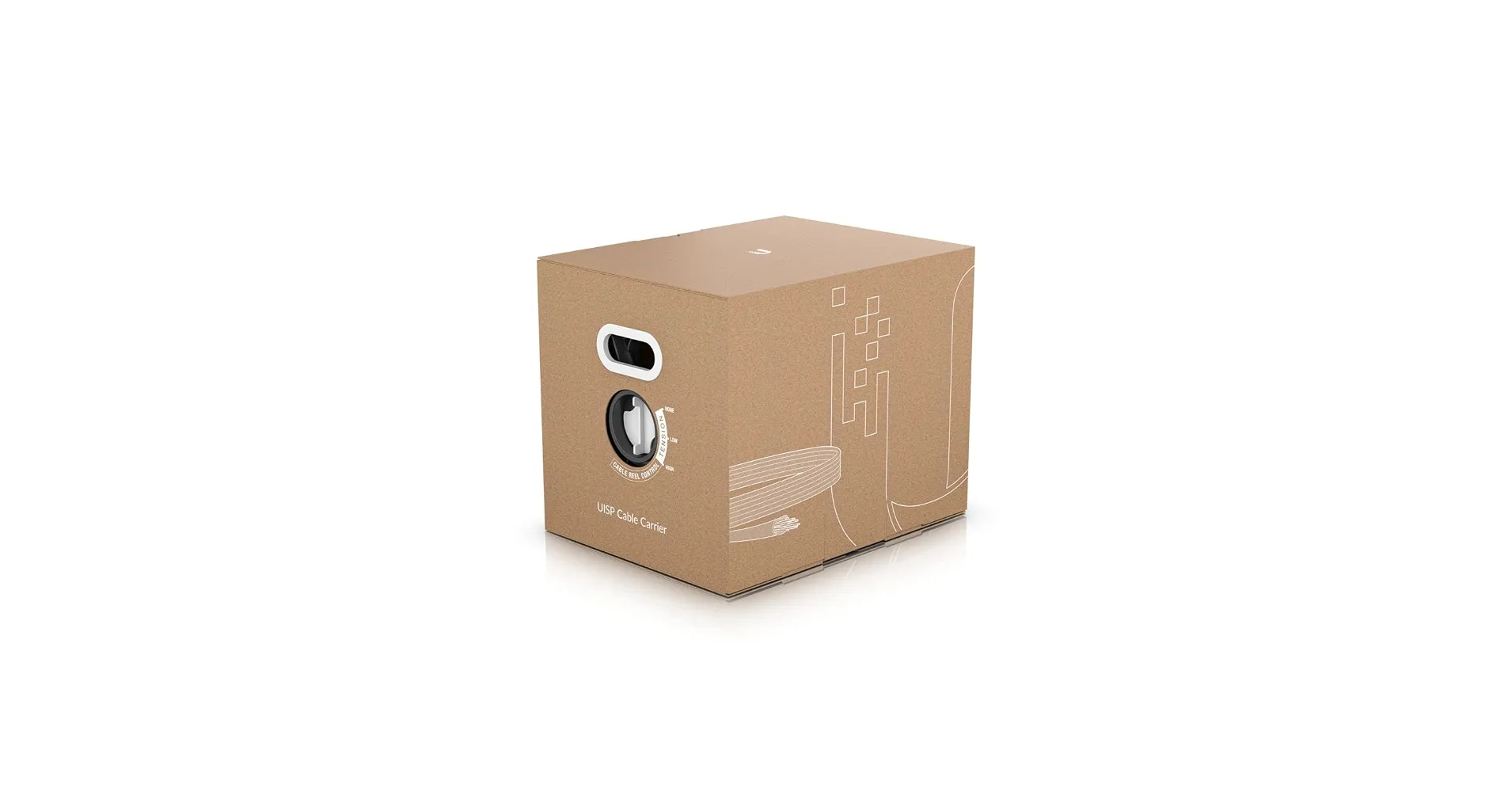

Ubiquiti UISP Cable Carrier
Original price was: 726.00.
720.00Current price is: 720.00.
The Ubiquiti UISP Cable Carrier (UISP-Cable-Carrier) is an industrial-grade, shielded CAT5e outdoor Ethernet cable designed for demanding network installations. It provides 305 meters (1,000 feet) of solid bare copper cable with 24 AWG conductors, integrated aluminum foil and braided shielding, an ESD drain wire, anti-crosstalk divider and UV-resistant polyethylene jacket. Supporting Ethernet speeds up to 1Gbps and operating from -40°C to 80°C, it is well suited for outdoor wireless, surveillance, ISP and long-run network installations in the UAE.
Warranty: 1 Year
FAQ
What is the Ubiquiti UISP Cable Carrier?
The UISP Cable Carrier is an industrial-grade shielded CAT5e outdoor Ethernet cable designed for demanding network installations. It provides 305m of solid bare copper cable with multiple shielding and ESD protection features.
How long is the UISP Cable Carrier?
The UISP Cable Carrier comes in a 305m (1,000ft) length.
What Ethernet speed does UISP Cable Carrier support?
The UISP Cable Carrier supports Ethernet connectivity at speeds of up to 1Gbps.
Is UISP Cable Carrier shielded?
Yes. It uses aluminum foil shielding, a secondary braided shield and an integrated ESD drain wire.
Is the UISP Cable Carrier suitable for outdoor use?
Yes. It has a polyethylene outdoor jacket, ASTM G 151/154 UV resistance and a specified operating temperature range of -40°C to 80°C.
Is UISP Cable Carrier made with solid copper?
Yes. The cable uses a 24 AWG solid bare copper conductor.
What category is the UISP Cable Carrier?
The UISP Cable Carrier is a shielded CAT5e Ethernet cable.
What is the difference between UISP Cable Carrier and UISP Cable Pro?
Both are 305m shielded CAT5e outdoor Ethernet cables, but Cable Carrier has a larger 6.8mm outer diameter, an internal anti-crosstalk divider and a heavier construction compared with UISP Cable Pro.
