| Specification | Details |
|---|---|
| Product | Ubiquiti Ethernet Surge Protector G2 ETH-SP-G2 |
| Product Type | Outdoor Ethernet Surge Protector |
| Networking Interface | 2 × RJ45 Female Connectors |
| Data Line Protection | Up to 2.5 Gbps |
| PoE Support | Yes |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Maximum Impulse Spark-Over Voltage | 700V @ 1kV/µs |
| Discharge Current | 10kA+ |
| Maximum Insulation Resistance | 1GΩ @ 50V |
| Maximum Capacitance | 1.0 pF @ 1 MHz |
| ESD Protection | Absorbs transient current from surge voltage of 100V/s to 1kV/µs |
| Weatherproofing | IPX5 |
| Enclosure Material | Polycarbonate |
| Mounting | Outdoor / Pole Mount |
| Operating Temperature | -30 to 65°C |
| Operating Humidity | 10% to 90% Non-Condensing |
| Shock & Vibration | ETSI300-019-1.4 |
| Dimensions | 91 × 61 × 32.5 mm |
| Weight | 80 g |
| Application | Outdoor Ethernet, PoE Devices, Wireless Networks, CCTV and Network Equipment |
Sale!
Surge Protection Devices
Ubiquiti ETH SP G2
Original price was: 79.00.
74.00Current price is: 74.00.

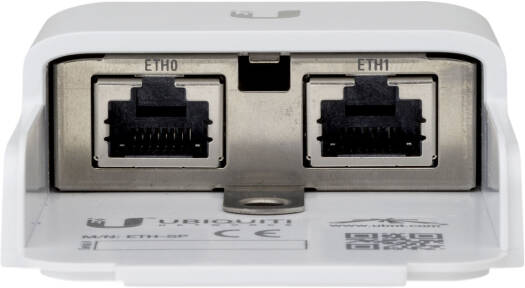

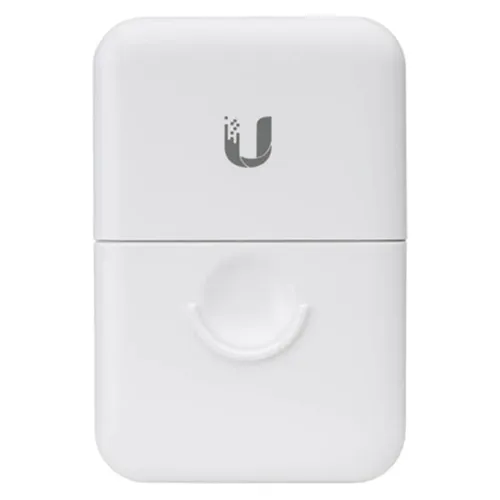

The Ubiquiti ETH-SP-G2 is an outdoor Ethernet surge protector designed to help protect Ethernet equipment from electrostatic discharge and electrical surge events. It features two passive surge-protected RJ45 connections, supports PoE and provides data-line protection up to 2.5Gbps. With an IPX5-rated polycarbonate enclosure, 10kA+ discharge capability and a wide operating temperature range of -30°C to 65°C, the ETH-SP-G2 is suitable for outdoor wireless, CCTV, access point and other Ethernet installations.
Warranty: 1 Year
Out of stock
