| Specification | Details |
|---|---|
| Brand | Ubiquiti |
| Product Series | EdgeSwitch / EdgeMAX |
| Product Name | EdgeSwitch 24 PoE (250W) |
| Model Number | ES-24-250W |
| Device Type | Managed Gigabit PoE Ethernet switch |
| RJ45 Ethernet Ports | 24 x 10/100/1000 Mbps Gigabit Ethernet |
| SFP Ports | 2 x 1G SFP |
| PoE Standard | IEEE 802.3af/at PoE/PoE+ |
| Passive PoE | Configurable 24V DC passive PoE |
| Total PoE Power Budget | 250W |
| Maximum PoE+ Output per Port | 34.2W |
| Maximum Passive PoE Output per Port | 17W |
| PoE+ Voltage Range | 50–57V |
| Passive PoE Voltage Range | 20–27V |
| Switching Capacity | 52 Gbps |
| Total Non-Blocking Throughput | 26 Gbps |
| Forwarding Rate | 38.69 Mpps |
| Management Interface | RJ45 serial port and Ethernet in-band/out-of-band management |
| Management Platform | UISP and supported device management interfaces |
| Power Input | 100–240V AC, 50/60 Hz |
| Internal Power Supply | 250W AC/DC |
| Maximum Power Consumption Excluding PoE Output | 30W |
| Rack Mounting | Yes, 1U |
| Dimensions | 485 x 43.7 x 285.4 mm |
| Weight | 4.7 kg |
| Operating Temperature | -5°C to 40°C |
| Operating Humidity | 5% to 95%, non-condensing |
| ESD/EMP Protection | ±24 kV air/contact |
Sale!
Networking

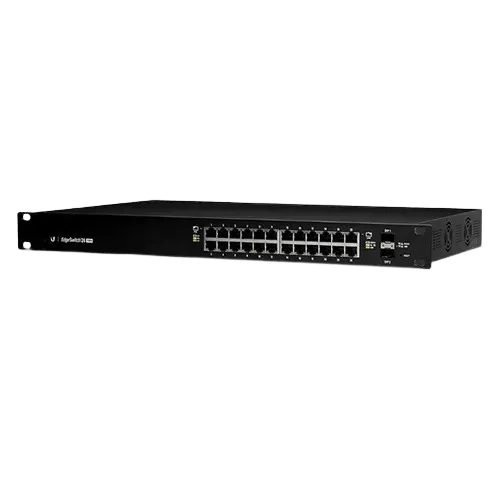

Ubiquiti EdgeSwitch 24 PoE (250W)
Original price was: 1,550.00.
1,540.00Current price is: 1,540.00.
The Ubiquiti EdgeSwitch 24 PoE (250W) ES-24-250W is a managed Gigabit Ethernet switch designed for business networks, IP surveillance, wireless access points and VoIP deployments. It features 24 Gigabit RJ45 ports with configurable PoE/PoE+ and 24V passive PoE support, two 1G SFP ports, 52 Gbps switching capacity and a 250W total PoE power budget. Its rack-mountable 1U design makes it suitable for structured network cabinets and professional IT installations.
Warranty: 1 Year
FAQ
What is the Ubiquiti EdgeSwitch 24 PoE 250W?
The ES-24-250W is a managed Gigabit Ethernet switch with 24 RJ45 ports, two 1G SFP ports and a 250W PoE power budget for compatible network devices.
How many Ethernet ports does the ES-24-250W have?
It has 24 Gigabit RJ45 Ethernet ports and two additional 1G SFP ports for compatible fibre-optic uplinks.
Does the EdgeSwitch ES-24-250W support PoE+?
Yes. It supports IEEE 802.3af/at PoE/PoE+ and provides up to 34.2W per port under the specified PoE+ conditions. The overall PoE budget is 250W.
Does this switch support 24V passive PoE?
Yes. Its ports can be configured for 24V DC passive PoE. Enable this mode only when the connected device explicitly supports the voltage and pin configuration.
Can the EdgeSwitch 24 PoE power IP cameras and access points?
Yes. It can power compatible PoE/PoE+ IP cameras, wireless access points and other supported devices, provided the required PoE standard and total power budget are respected.
What is the switching capacity of the ES-24-250W?
The switch has a switching capacity of 52 Gbps, a total non-blocking throughput of 26 Gbps and a forwarding rate of 38.69 Mpps.
Can the EdgeSwitch ES-24-250W be installed in a rack?
Yes. It has a 1U rack-mountable design and measures 485 x 43.7 x 285.4 mm.
Is the Ubiquiti EdgeSwitch 24 PoE suitable for businesses in the UAE?
It can be used in compatible business networks, IP surveillance installations and wireless deployments in the UAE. Confirm product availability, warranty terms and compatibility with the intended devices before purchasing.
