| Specification | Details |
|---|---|
| Product | Ruijie Reyee RG-RAP2266 |
| Product Type | Wi-Fi 6 AX3000 Indoor Ceiling Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax |
| Wireless Bands | 2.4 GHz + 5 GHz |
| Radio Design | Dual-Radio, 4 Spatial Streams |
| 2.4 GHz MIMO | 2×2 MU-MIMO |
| 5 GHz MIMO | 2×2 MU-MIMO |
| 2.4 GHz Maximum Data Rate | 573 Mbps |
| 5 GHz Maximum Data Rate | 2,401 Mbps |
| Aggregate Wireless Data Rate | Up to 2,974 Mbps |
| 6 GHz Band | No |
| Antennas | Built-in Omnidirectional Antennas |
| 2.4 GHz Antennas | 2 × Built-in Omnidirectional |
| 5 GHz Antennas | 3 × Built-in Omnidirectional |
| Ethernet Port | 1 × 10/100/1000BASE-T Gigabit RJ45 |
| Power Supply | PoE / PoE+ or 12V DC Adapter |
| DC Input | 12V DC, 2A |
| PoE Budget | No PoE Output |
| Maximum Power Consumption | 18W |
| Maximum Associated Clients | 512 |
| Maximum 2.4 GHz Clients | 64 |
| Maximum 5 GHz Clients | 512 |
| Managed Devices | Up to 300 |
| Reyee Mesh | Yes |
| Roaming | 802.11k/v |
| Captive Portal | Yes |
| Cloud Management | Reyee Cloud / Ruijie Cloud |
| IPv6 | Yes |
| Mounting | Ceiling / Wall |
| IP Rating | IP41 |
| Dimensions | Ø220 × 52.6 mm |
| Weight | ≤ 0.5 kg |
| Color | White |
| Operating Temperature | 0°C to 40°C |
| Warranty | 1 Year |
Sale!
Networking
Ruijie Reyee RG-RAP2266
Original price was: 356.00.
350.00Current price is: 350.00.

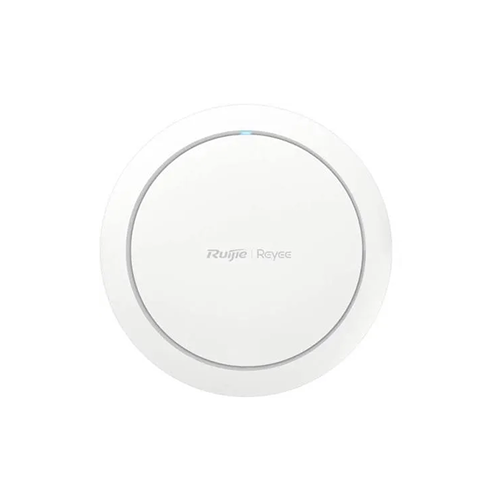

The Ruijie Reyee RG-RAP2266 is a Wi-Fi 6 AX3000 indoor ceiling-mounted access point designed for hotels, offices, commercial spaces and high-density wireless environments. It delivers up to 2974 Mbps combined wireless throughput, with 2401 Mbps on 5 GHz and 573 Mbps on 2.4 GHz. The RG-RAP2266 features dual-radio 2×2 MU-MIMO, built-in omnidirectional antennas, Gigabit Ethernet, PoE/PoE+ power, Reyee Mesh, 802.11k/v roaming and Ruijie Cloud management.
Warranty: 1 Year
FAQ
What is the Ruijie Reyee RG-RAP2266?
The RG-RAP2266 is a dual-band Wi-Fi 6 AX3000 indoor ceiling access point designed for business wireless networks. It provides up to 2,974 Mbps combined wireless data rate and supports Reyee Mesh and Ruijie Cloud management.
What Wi-Fi speed does the RG-RAP2266 support?
The RG-RAP2266 supports up to 2,974 Mbps combined wireless data rate, including up to 573 Mbps on 2.4 GHz and 2,401 Mbps on 5 GHz.
Does the RG-RAP2266 support Wi-Fi 6?
Yes. The RG-RAP2266 supports IEEE 802.11ax Wi-Fi 6 and uses 2×2 MU-MIMO on both the 2.4 GHz and 5 GHz bands.
Does the Ruijie RG-RAP2266 support PoE?
Yes. The RG-RAP2266 supports PoE/PoE+ for power through its Gigabit Ethernet connection. It can also be powered using a 12V DC adapter.
Does the RG-RAP2266 support Reyee Mesh?
Yes. The RG-RAP2266 supports Reyee Mesh, allowing compatible access points to work together to expand wireless coverage. It also supports 802.11k/v roaming features.
