| Specification | Details |
|---|---|
| Product | Ruijie Reyee RG-ANT20S-90 |
| Model | RG-ANT20S-90 |
| Product Type | 5 GHz 20 dBi Sector Antenna |
| Series | RG-AirMetro |
| Application | PTMP, WISP, CCTV, Wireless Backhaul |
| Applicable Scenario | WISP |
| Frequency Band | 5 GHz |
| Frequency Range | 5.15 GHz – 5.85 GHz |
| Antenna Type | 2 × 2 Panel Antenna |
| Antenna Gain | 20 dBi |
| Horizontal Beamwidth | 90° (6 dB) |
| Vertical Beamwidth | 90° (6 dB) |
| Vertical Orientation | 7° Elevation |
| Electrical Downtilt | 0° |
| Polarization | ±45° |
| Cross-Polarization Isolation | Minimum 20 dB |
| Maximum VSWR | 2.0:1 |
| Maximum Transmission Distance | Up to 10 km |
| Compatible Base Station | Ruijie Reyee RG-AirMetro550G-B |
| Maximum PTMP Links | Up to 32 with RG-AirMetro550G-B |
| Wind Survivability | 220.32 km/h (137 mph) |
| Wind Loading | 227 N @ 220.32 km/h |
| Weather Protection | IP55 |
| Surge Protection | 6 kV |
| ESD Protection | ±24 kV Contact/Air |
| Mounting | Pole Mount |
| Dimensions | 694 × 139.9 × 48.9 mm (without mounting bracket) |
| Weight | 1.82 kg (without packaging materials) |
| Color | Elegant White |
| Operating Temperature | -40°C to +80°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 5% – 95% RH, non-condensing |
| Operating Altitude | -500 m to +5,000 m |
| MTBF | 400,000 hours |
| Cooling | Natural Cooling |
| Certification | CE |
| Warranty | 1 Year |
Sale!
Networking

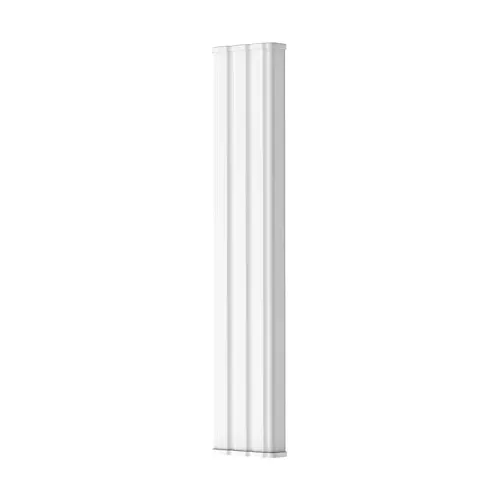

Ruijie Reyee RG-ANT20S-90
Original price was: 397.00.
390.00Current price is: 390.00.
The Ruijie Reyee RG-ANT20S-90 is a 5 GHz 20 dBi sector antenna for the RG-AirMetro550G-B wireless bridge, with 90° horizontal coverage, IP55 weather protection and a range of up to 10 km in suitable deployments. Ideal for WISP, CCTV and outdoor backhaul networks. Available in Dubai, UAE from Hiba Computers with a 1-year warranty.
Warranty: 1 Year
FAQ
What is the Ruijie Reyee RG-ANT20S-90?
The Ruijie Reyee RG-ANT20S-90 is a 5 GHz sector antenna designed for the RG-AirMetro wireless bridge series. It provides focused wireless coverage for suitable outdoor networking deployments.
What is the antenna gain of the RG-ANT20S-90?
The RG-ANT20S-90 has a 20 dBi antenna gain.
What is the coverage angle of the RG-ANT20S-90?
The antenna provides 90° horizontal coverage and 7° vertical coverage.
What is the maximum transmission distance of the RG-ANT20S-90?
The RG-ANT20S-90 supports wireless transmission of up to 10 km in suitable deployment conditions. Actual distance and performance depend on the environment, installation, line of sight and connected equipment.
Which Ruijie Reyee devices work with the RG-ANT20S-90?
The RG-ANT20S-90 is designed for the Ruijie Reyee RG-AirMetro wireless bridge series. Check the manufacturer’s compatibility information before installation.
Can the RG-ANT20S-90 be used for PTMP networking?
Yes. The RG-AirMetro platform supports point-to-multipoint wireless deployments, making the RG-ANT20S-90 suitable for appropriate PTMP applications.
Is the RG-ANT20S-90 suitable for outdoor installation?
Yes. The antenna has an IP55 rating and is designed for suitable outdoor wireless bridge deployments.
What are the main applications of the RG-ANT20S-90?
The RG-ANT20S-90 is suitable for applications such as WISP networks, CCTV connectivity, factories, towns and other outdoor wireless networking scenarios.
Can I buy the Ruijie Reyee RG-ANT20S-90 in UAE?
Yes. Contact Hiba Computers for current availability, pricing and delivery information for the RG-ANT20S-90 in the UAE.
