| Specification | Details |
|---|---|
| Brand | Ubiquiti |
| Product Series | airMAX M |
| Product Name | NanoStation M5 |
| Model | NSM5 |
| Product Type | 5 GHz Outdoor Wireless CPE |
| Wireless Technology | airMAX, 2×2 MIMO |
| Frequency Band | 5 GHz |
| Operating Frequency | Depends on regional version and regulatory settings |
| Antenna Gain | 14.6–16.1 dBi |
| Antenna Polarisation | Dual-linear |
| Horizontal Beamwidth | 43° |
| Vertical Beamwidth | 41° |
| Elevation Beamwidth | 15° |
| Maximum VSWR | 1.6:1 |
| Networking Interfaces | 2 × 10/100 Mbps RJ45 Ethernet |
| PoE Passthrough | Supported with compatible configuration and equipment |
| Power Method | 24V passive PoE, 2-pair |
| Included Power Supply | 24V, 0.5A PoE adapter |
| Supported Voltage Range | 22–27V DC |
| Maximum Power Consumption | 8W |
| Enclosure Material | Outdoor UV-stabilised polycarbonate |
| Mounting | Pole mount, included |
| Dimensions | 294 × 31 × 80 mm |
| Weight | 400 g |
| Operating Temperature | -30°C to 75°C |
| Operating Humidity | 5%–95%, non-condensing |
| Certifications | FCC, IC, CE and RoHS, depending on regional version |
Sale!
Networking

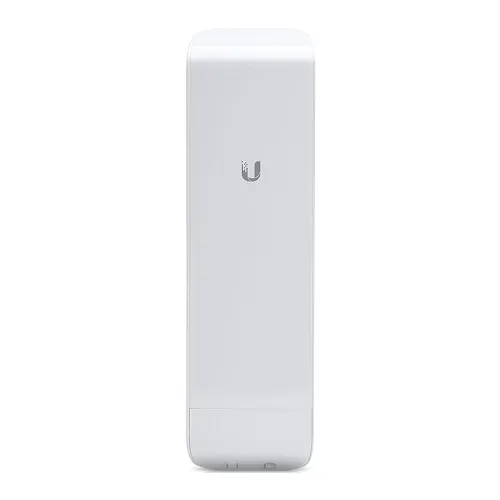

Ubiquiti NanoStation M5 NSM5 5GHz airMAX CPE
Original price was: 359.00.
350.00Current price is: 350.00.
The Ubiquiti NanoStation M5 (NSM5) is a 5 GHz airMAX outdoor wireless CPE designed for point-to-point links and wireless network connectivity. It features an integrated dual-polarised directional antenna and 2×2 MIMO technology for compatible airMAX wireless deployments. The NSM5 includes two 10/100 Mbps Ethernet ports, passive PoE power and a compact UV-stabilised outdoor enclosure. Its pole-mount design makes it suitable for wireless bridging, remote network connections and outdoor broadband installations. Explore the Ubiquiti NanoStation M5 NSM5 at Hiba Computers for professional wireless networking requirements in Dubai and across the UAE.
Warranty: 1 Year
Out of stock
FAQ
What is the Ubiquiti NanoStation M5 NSM5?
The NSM5 is a 5 GHz airMAX outdoor wireless CPE with an integrated directional antenna and 2×2 MIMO technology for compatible wireless network deployments.
What is the antenna gain of the NanoStation M5?
The manufacturer’s published antenna gain is 14.6–16.1 dBi.
How many Ethernet ports does the NSM5 have?
The NanoStation M5 has two 10/100 Mbps RJ45 Ethernet ports.
Does the Ubiquiti NSM5 support PoE?
Yes. It uses 24V passive PoE and supports a voltage range of 22–27V DC. Use the appropriate compatible power supply.
Can the NanoStation M5 be used as a wireless bridge?
Yes. It can be used for wireless bridging with compatible airMAX equipment and suitable configuration at both ends of the link.
Where can I buy the Ubiquiti NanoStation M5 in the UAE?
Visit the Hiba Computers product page to check the current price, availability and warranty information for the NSM5 in Dubai and across the UAE.
