| Specification | Details |
|---|---|
| Product | MikroTik QRT 5 |
| Model | RB911G-5HPnD-QRT |
| Product Type | Outdoor 5 GHz Wireless CPE / Point-to-Point Backbone |
| Architecture | MIPSBE |
| CPU | Atheros AR9342 |
| CPU Core Count | 1 |
| CPU Frequency | 600 MHz |
| RAM | 64 MB |
| Storage | 128 MB NAND |
| Operating System | MikroTik RouterOS |
| RouterOS License | Level 4 |
| Wireless Frequency | 5 GHz |
| Frequency Range | 5150–5875 MHz* |
| Wireless Standard | 802.11a/n |
| Wi-Fi Generation | Wi-Fi 4 |
| Wireless Chains | 2 |
| Maximum Wireless Data Rate | 300 Mbps |
| Antenna Gain | 24 dBi |
| Antenna Type | Integrated Directional Flat-Panel |
| Polarization | Dual, Vertical and Horizontal |
| 3 dB Beamwidth | 10.5° H-Plane / 10.5° E-Plane |
| Front-to-Back Ratio | 35 dB minimum |
| Cross-Polarization | 25 dB minimum |
| Port-to-Port Isolation | 50 dB |
| Ethernet | 1 × 10/100/1000 Mbps Gigabit Ethernet |
| PoE Input | Passive PoE |
| PoE Input Voltage | 8–28V DC |
| Power Inputs | 1 × PoE-IN |
| Maximum Power Consumption | 12W |
| Cooling | Passive |
| PCB Temperature Monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| Enclosure | Outdoor Flat-Panel Enclosure |
| IP Rating | IP54 |
| Dimensions | 309 × 320 × 50 mm |
| Operating Temperature | -40°C to 70°C |
| MTBF | Approximately 200,000 hours at 25°C |
| Mounting | Pole / Mast Mount |
| Included Power Adapter | 24V, 0.8A |
| Included PoE Injector | Gigabit PoE Injector |
| Certifications | CE, EAC, RoHS |
Sale!
Networking

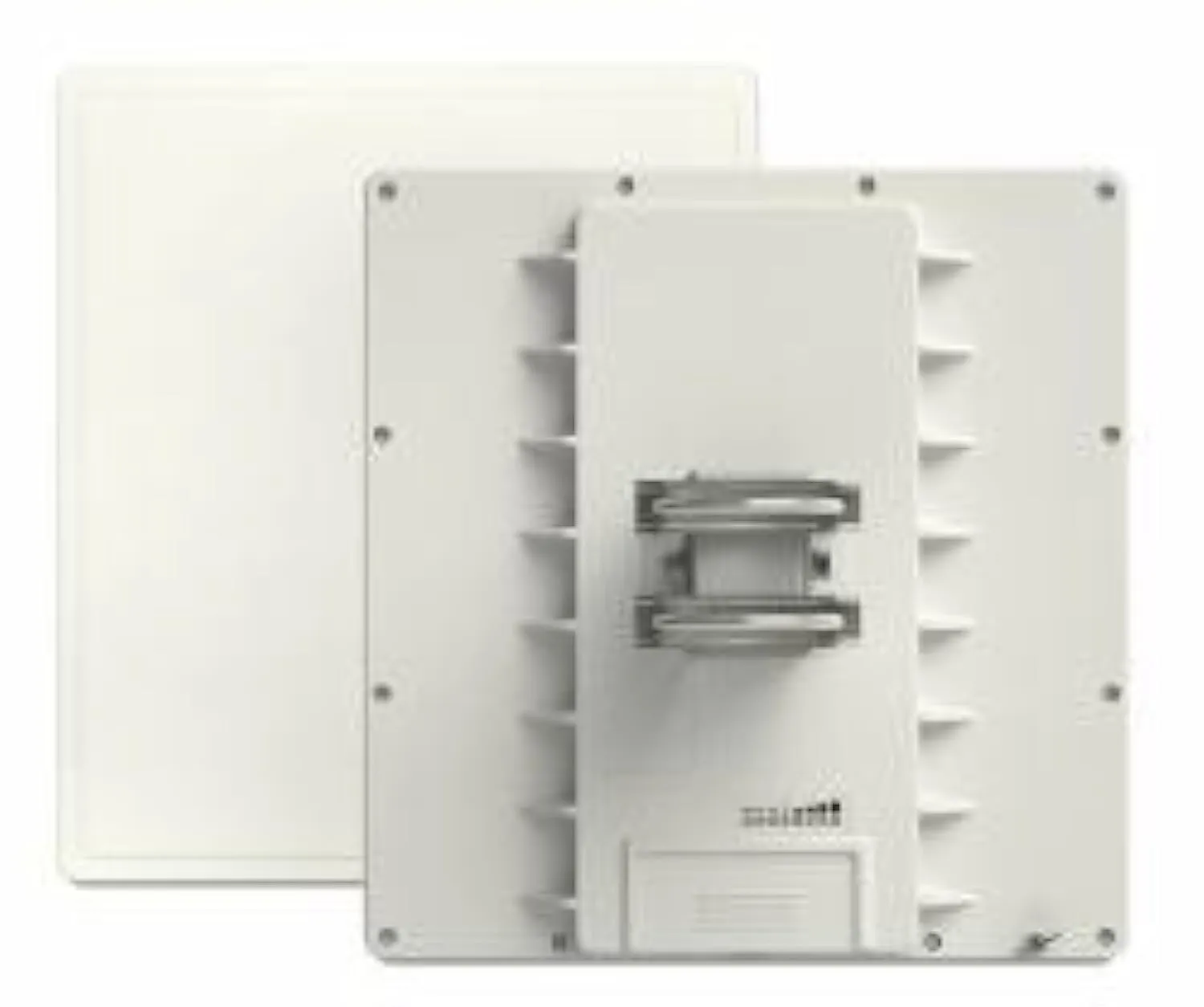

Mikro Tik RB911G-5HPnD-QRT
Original price was: 600.00.
590.00Current price is: 590.00.
The MikroTik QRT 5 (RB911G-5HPnD-QRT) is a rugged outdoor 5GHz wireless CPE and flat-panel antenna designed for point-to-point links, backbone connections and long-range wireless deployments. It combines a 24dBi directional antenna, dual-chain 802.11a/n wireless, 300Mbps maximum wireless data rate, Gigabit Ethernet, passive PoE and RouterOS Level 4 in a weather-resistant IP54 enclosure.
Warranty: 1 Year
FAQ
What is the MikroTik QRT 5?
The MikroTik QRT 5 is a rugged outdoor 5GHz flat-panel wireless device with a built-in RouterBOARD, 24dBi directional antenna, Gigabit Ethernet and RouterOS Level 4.
What frequency does the MikroTik QRT 5 use?
The QRT 5 is a 5GHz wireless device using 802.11a/n. The international model supports 5150–5875MHz, subject to local regulations.
What is the antenna gain of the QRT 5?
The MikroTik QRT 5 has an integrated 24dBi directional antenna.
What is the maximum wireless speed of the RB911G-5HPnD-QRT?
The QRT 5 supports a maximum 5GHz wireless data rate of 300Mbps.
Does the MikroTik QRT 5 have Gigabit Ethernet?
Yes. It has one 10/100/1000 Gigabit Ethernet port.
Can the QRT 5 be used for point-to-point links?
Yes. MikroTik specifically describes the QRT 5 as suitable for point-to-point links and outdoor backbone connectivity.
Is the MikroTik QRT 5 suitable for outdoor installation?
Yes. The QRT 5 has an IP54-rated enclosure and an operating temperature range of -40°C to 70°C.
