| Specification | Details |
|---|---|
| Product | Ubiquiti airMAX NanoStation M5 loco |
| Model | LocoM5 |
| Product Type | 5 GHz Outdoor Wireless CPE |
| Wireless Technology | airMAX |
| WiFi Standard | 802.11a/n |
| Frequency Band | 5 GHz |
| Operating Frequency | 5150–5875 MHz |
| Antenna Gain | 13 dBi |
| Antenna Type | Integrated Directional Antenna |
| Polarization | Dual-Linear |
| Antenna Beamwidth | 45° H / 45° V / 45° Elevation |
| Cross-Polarization Isolation | 20 dB Minimum |
| Networking Interface | 1 × 10/100 MbE RJ45 |
| Operating Modes | Access Point / Station |
| Channel Bandwidth | 10 / 20 / 30 / 40 MHz |
| Management Radio | 2.4 GHz |
| Power Method | Passive PoE 2-Pair |
| PoE Pinout | 4, 5+ / 7, 8 Return |
| Power Supply | 24V, 0.5A PoE Adapter Included |
| Supported Voltage Range | 22–27V DC |
| Maximum Power Consumption | 5.5W |
| Mounting | Pole Mount |
| Mount Included | Yes |
| Enclosure Material | Outdoor UV-Stabilized Polycarbonate |
| Dimensions | 161 × 31 × 80 mm |
| Weight | 180 g |
| Operating Temperature | -30°C to 75°C |
| Operating Humidity | 5–95% Non-Condensing |
| Shock and Vibration | ETSI300-019-1.4 |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE, RoHS |
Sale!
Networking

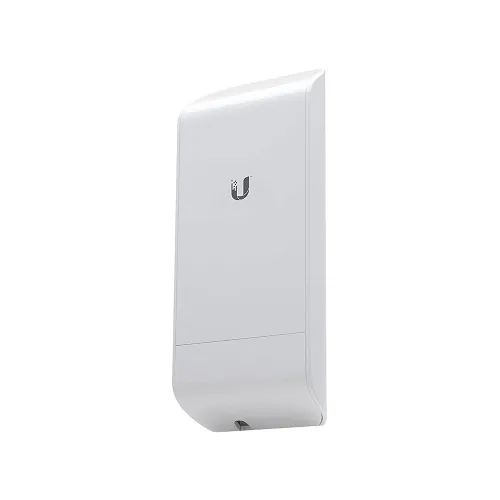

Ubiquiti NanoStation M5 Loco LocoM5 5GHz CPE
Original price was: 250.00.
245.00Current price is: 245.00.
Ubiquiti NanoStation M5 Loco LocoM5 is a compact and cost-effective 5 GHz airMAX outdoor CPE designed for wireless broadband, point-to-point links and customer premises applications. It features a built-in 13 dBi dual-linear antenna, 10/100 MbE Ethernet, passive PoE power and a weather-resistant UV-stabilized polycarbonate enclosure. Its compact design and included pole mount make it suitable for outdoor wireless network installations.
Warranty: 1 Year
FAQ
What is the Ubiquiti NanoStation 5AC?
The NanoStation 5AC (NS-5AC) is a 5 GHz airMAX AC wireless CPE designed for point-to-point and customer-premises networking.
What frequency does the NanoStation 5AC use?
The NanoStation 5AC operates in the 5 GHz band with a worldwide supported frequency range of 5150–5875 MHz.
How many Ethernet ports does the NS-5AC have?
The NanoStation 5AC has 2 Gigabit RJ45 Ethernet ports for network connectivity.
Does the NanoStation 5AC include a PoE adapter?
Yes. The NS-5AC includes a 24V, 0.5A Gigabit PoE adapter and supports passive PoE.
